Yamaha Bolt R-Spec
- Production years
- 2017–2026
- Brand
- Yamaha
Choose model year
1 / 10

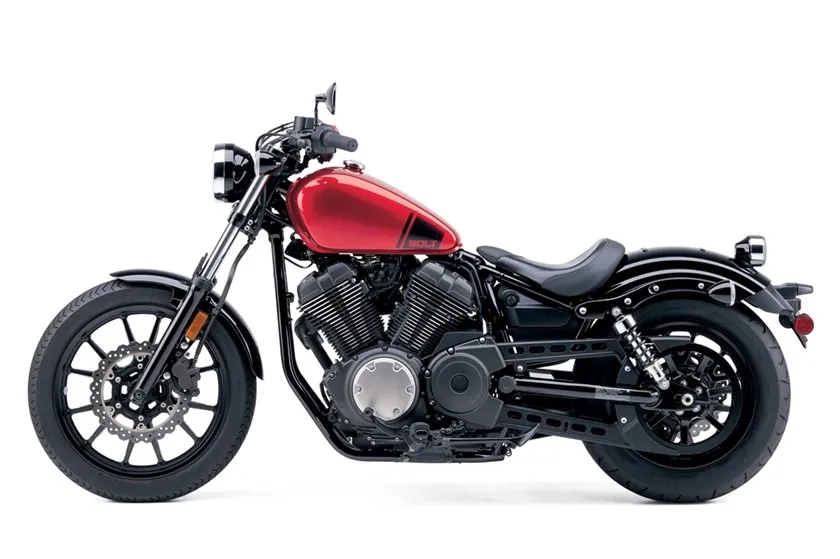

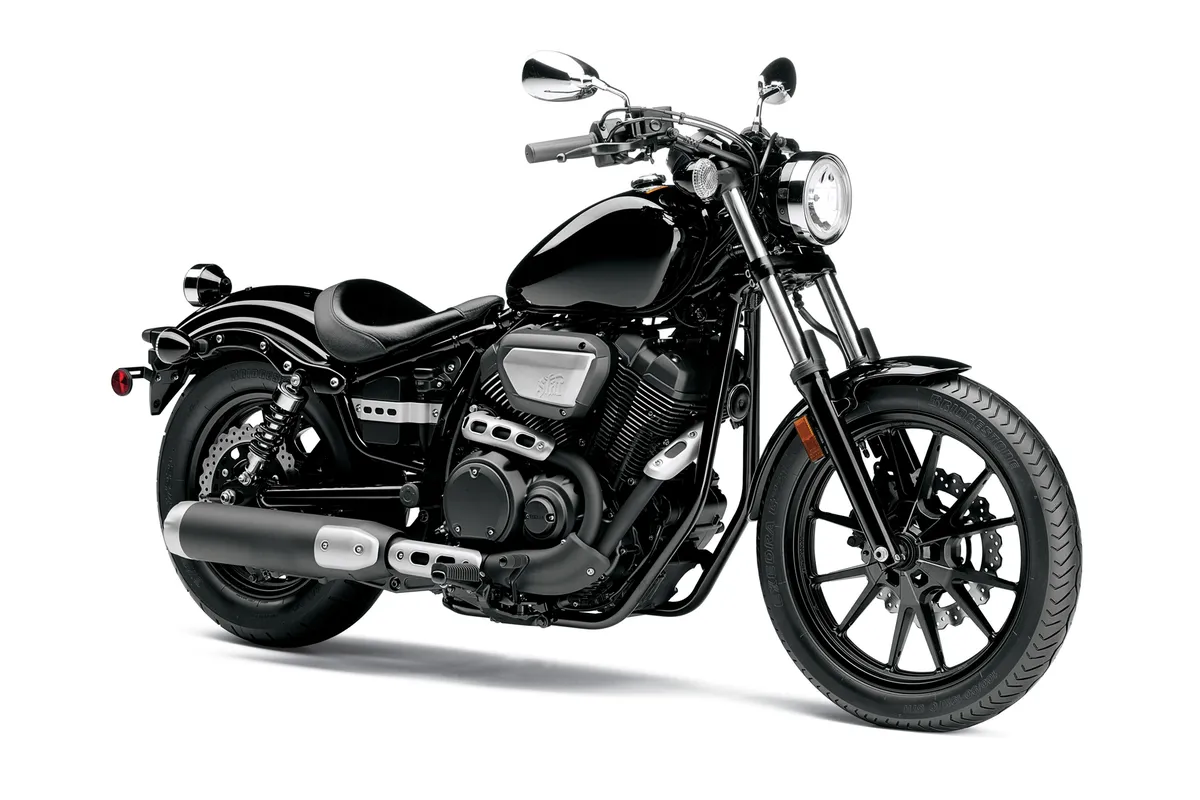

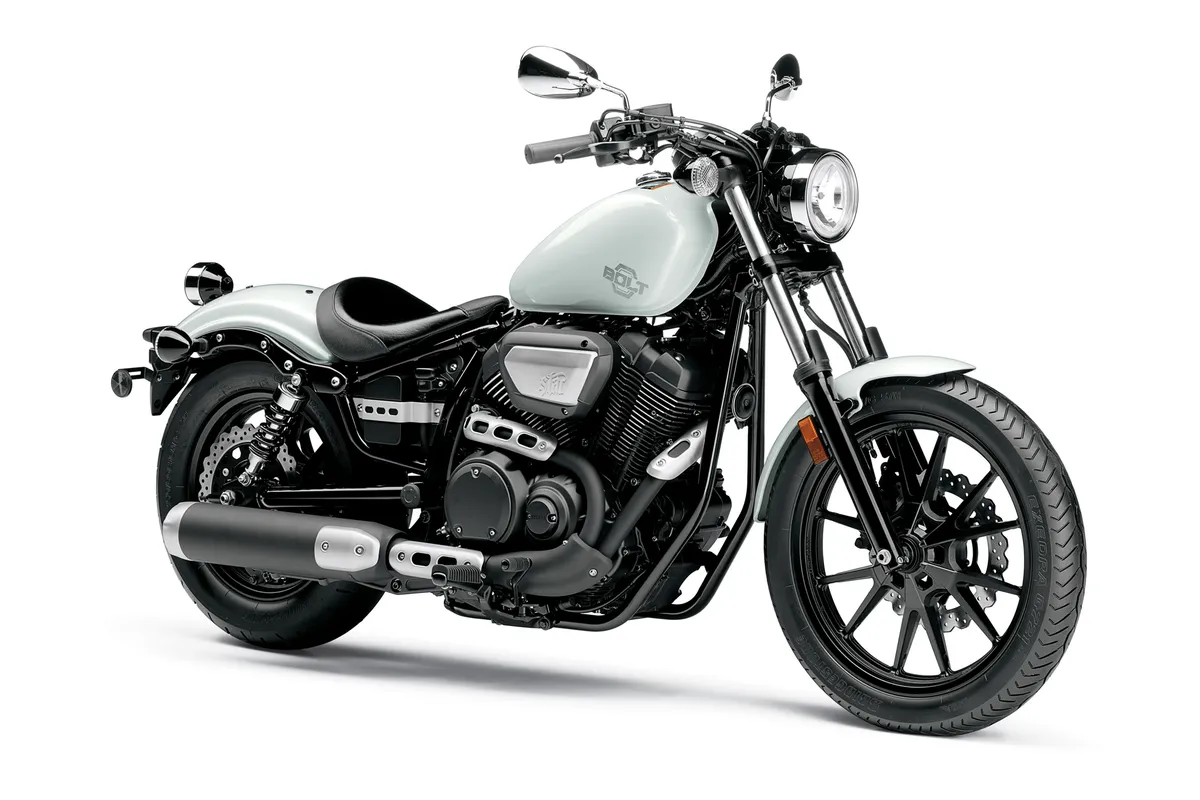

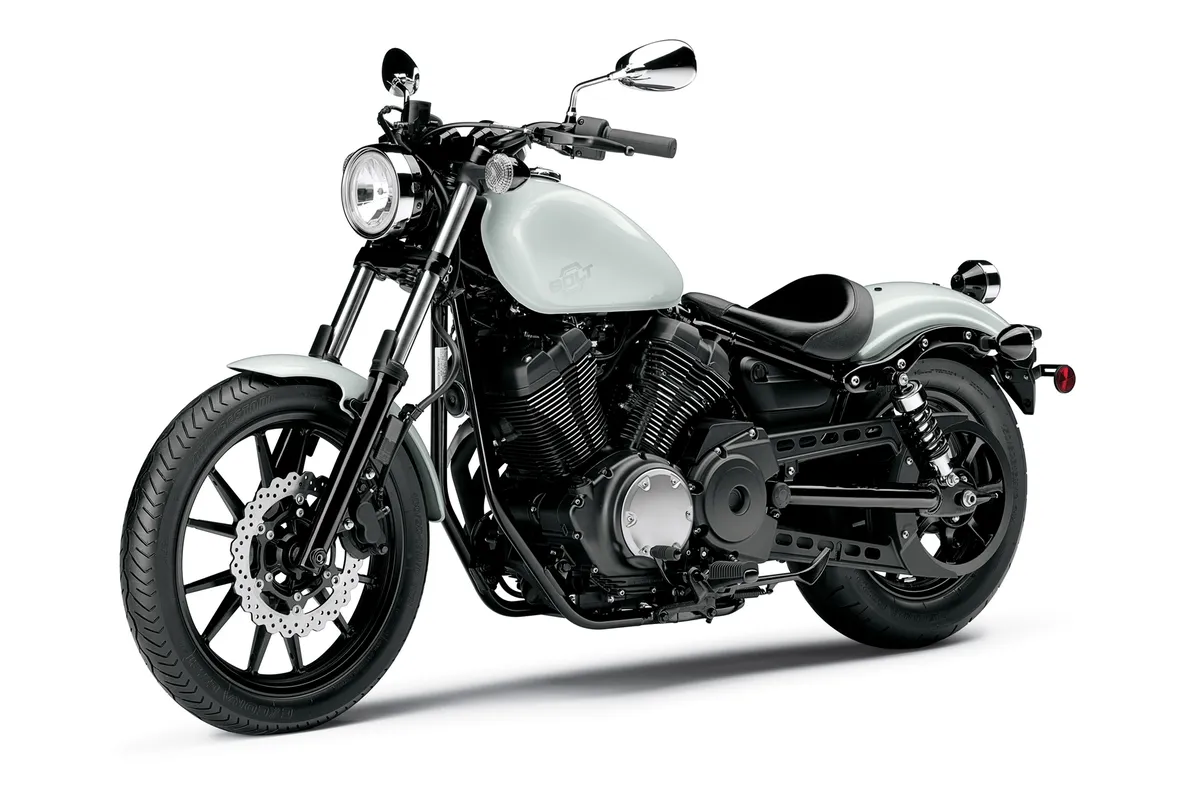

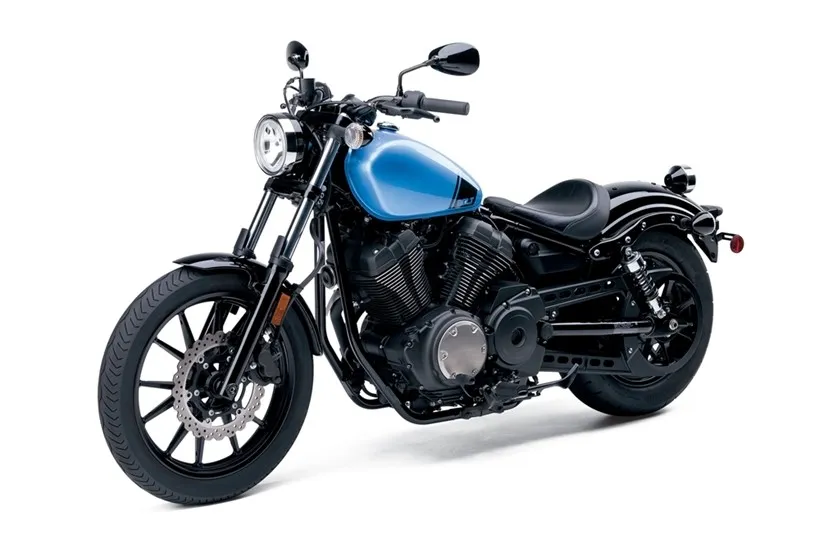

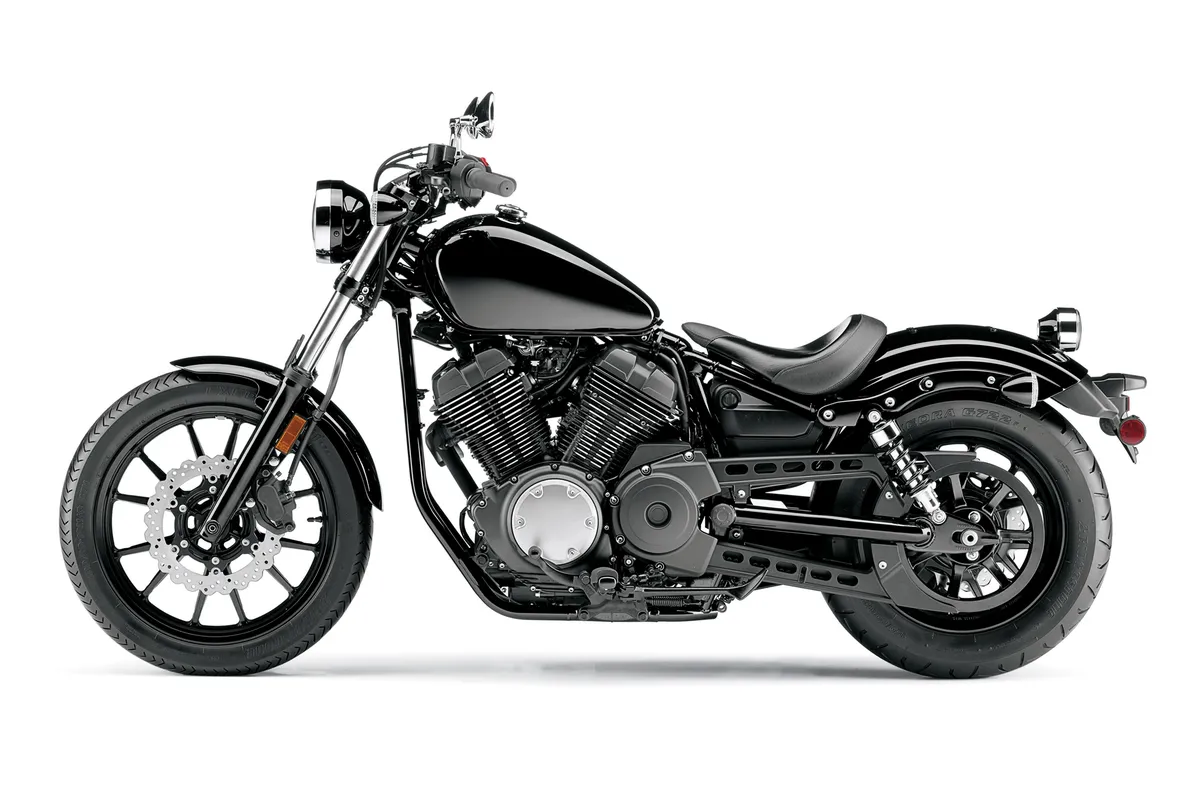

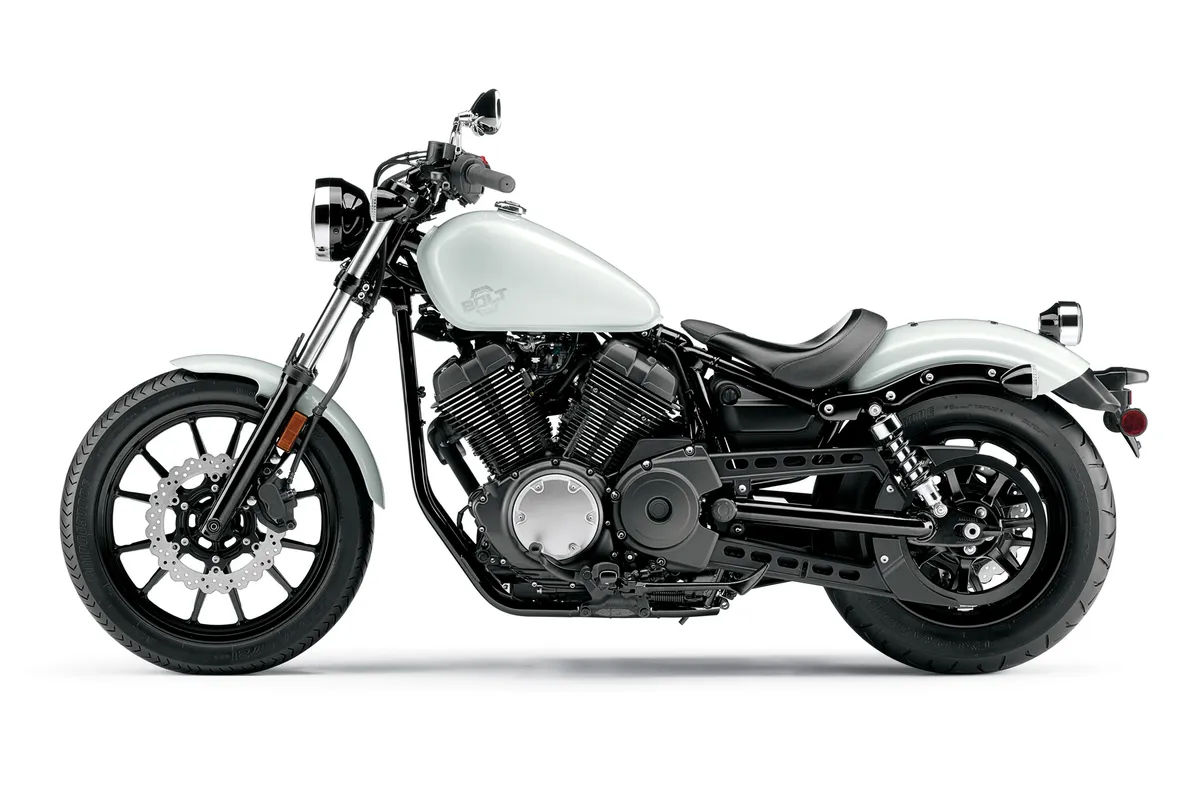

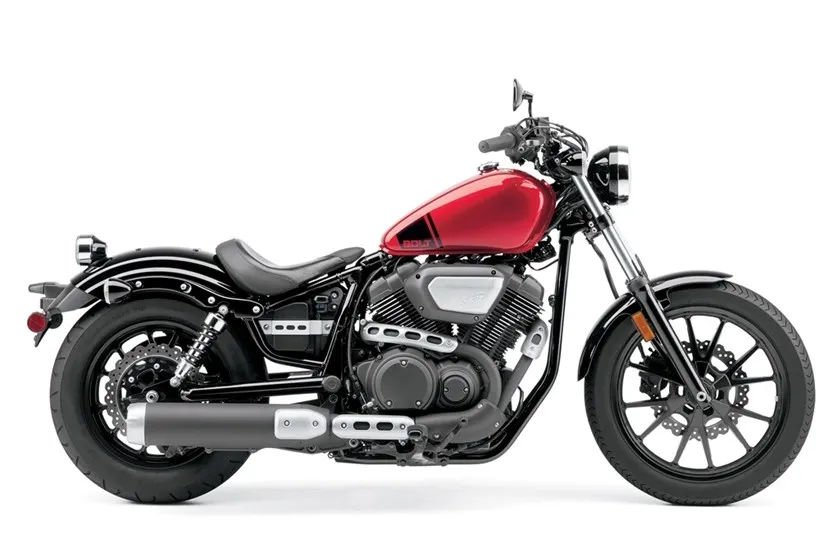

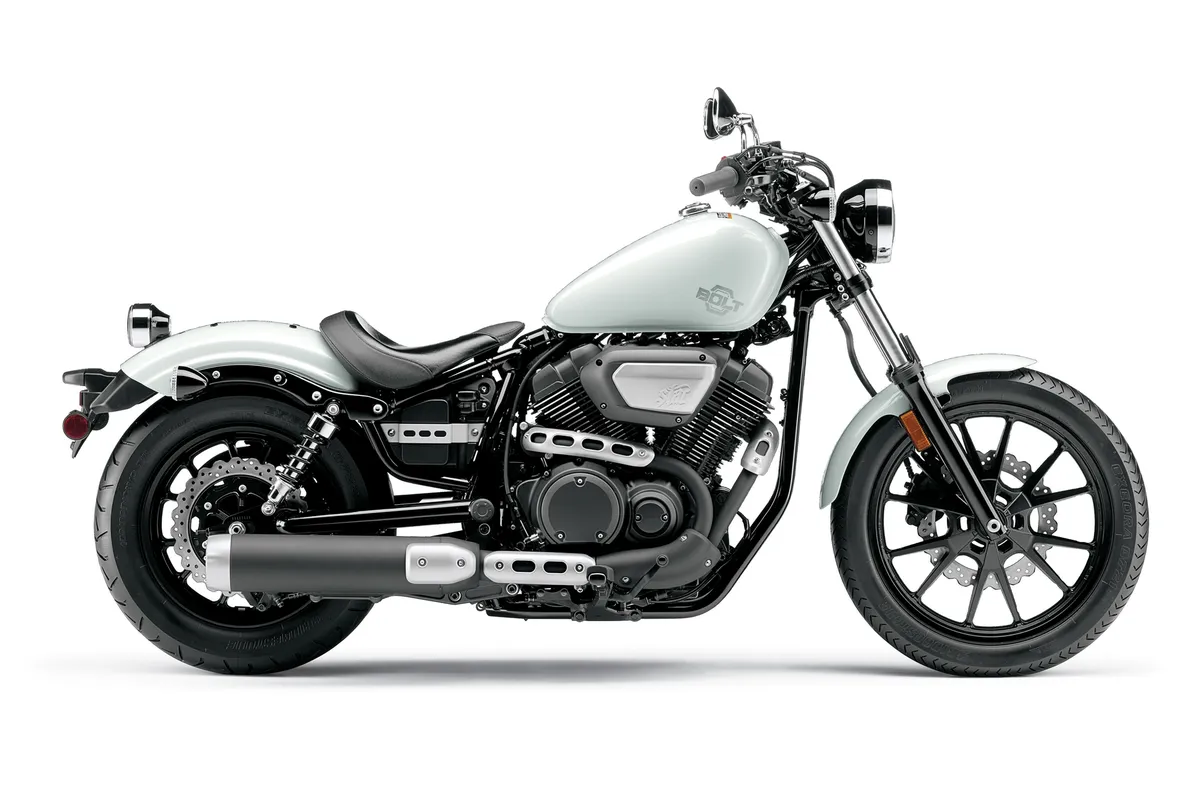

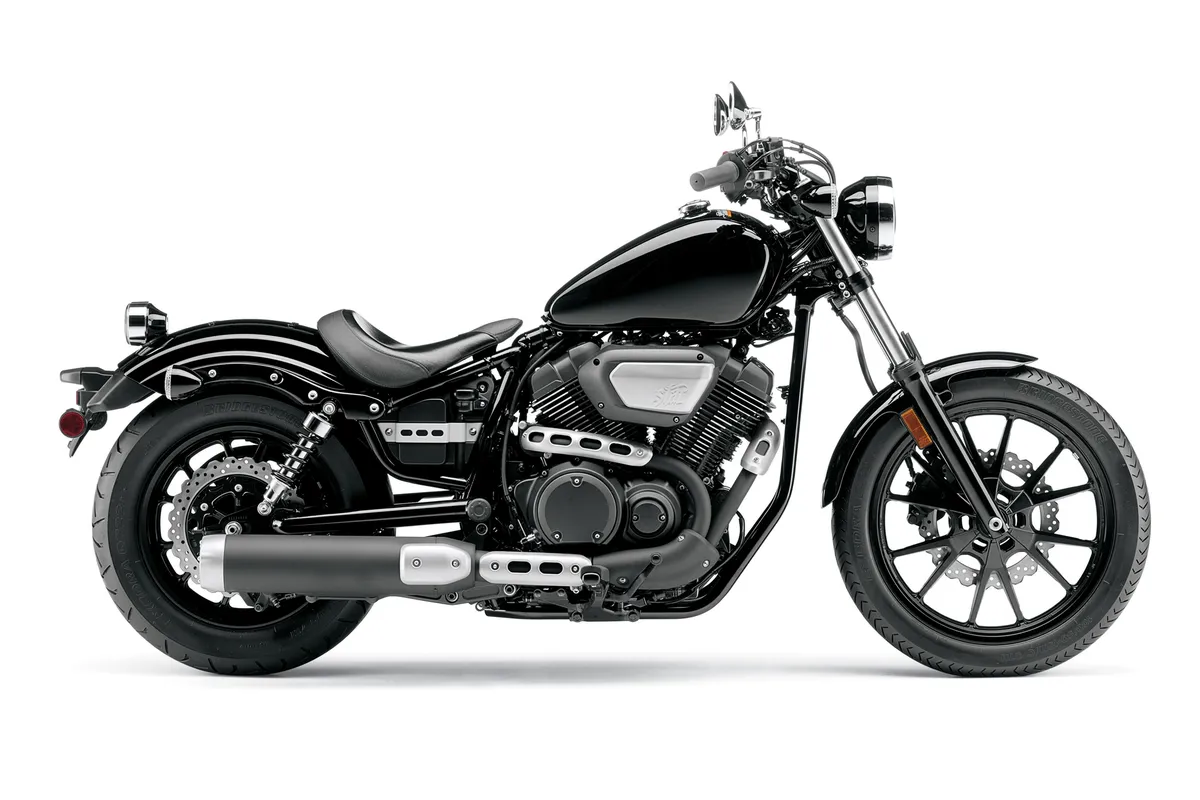

YAMAHA Bolt (2013-2014)
Selected year: 2026
Technical specifications
- Engine capacity
- 942 cm³
- Power
- 54 hp (40 kW)
- Wet weight
- 245.9 kg
- Seat height
- 690 mm
Overview
The Yamaha Bolt R-Spec is a cruiser in the Bolt family, produced from 2017 through 2026. For 2026, its air-cooled 942 cm³ V-Twin makes 54 hp (40 kW) and 80.4 Nm of torque at 3,000 rpm, with a wet weight of 245.9 kg.
The 690 mm seat height makes stops and mounting easier, while the 245.9 kg wet weight can take more effort to manage at walking speed. Torque peaks at 3,000 rpm, giving the engine its strongest pull at relatively low revs. Fuel consumption is 4.60 liters per 100 km, and a full 13-liter tank provides a calculated range of about 283 km; the belt final drive needs no chain cleaning or adjustment.
Specifications
Engine
Engine
- Bore x stroke
- 85.0 x 83.0 mm
- Engine capacity
- 942 cm³
- Compression ratio
- 9.0:1
- Cooling system
- Air
- Engine type
- V-Twin, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Lubrication system
- Wet Sump
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Fuel consumption
- 4.6 L/100 km
- Power
- 54 hp (40 kW)
- Power weight ratio
- 0.2196 HP/kg (wet)
- Torque
- 80.4 Nm at 3,000 rpm
- Clutch
- Multiplate wet clutch
- Final drive
- Belt
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 13 L
- Ground clearance
- 130 mm
- Overall height
- 1,120 mm
- Overall length
- 2,290 mm
- Overall width
- 945 mm
- Seat height
- 690 mm
- Wet weight
- 245.9 kg
- Wheelbase
- 1,570 mm
Chassis and suspension
Chassis and suspension
- Frame
- Aluminum double-cradle
- Front suspension
- Telescopic fork 41mm
- Front wheel travel
- 120 mm
- Rake
- 29.0°
- Rear suspension
- Dual piggyback shocks
- Rear wheel travel
- 70 mm
- Trail
- 130 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Single disc. Hydraulic
- Front brakes diameter
- 298 mm
- Front tyre
- 100/90-19
- Rear brakes
- Single disc. Hydraulic
- Rear brakes diameter
- 298 mm
- Rear tyre
- 150/80-16
Colours and equipment
Colours and equipment
- Colours
- Raven black.
Model years
2020
Wet weight: 244.9 kg → 248 kg; Seat height: 691 mm → 690 mm; Fuel capacity: 12.1 L → 13 L
2022
Wet weight: 248 kg → 245.9 kg
2024
Wet weight: 245.9 kg → 245.8 kg; Seat height: 690 mm → 691 mm; Fuel capacity: 13 L → 12.9 L
2025
Wet weight: 245.8 kg → 245.9 kg; Seat height: 691 mm → 690 mm; Fuel capacity: 12.9 L → 13 L
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 942 cm³ | 942 cm³ | 942 cm³ | 942 cm³ | 942 cm³ | 942 cm³ |
| Power | 54 hp (40 kW) | 54 hp (40 kW) | 54 hp (40 kW) | 54 hp (40 kW) | 54 hp (40 kW) | 54 hp (40 kW) |
| Torque | 80.4 Nm | 80.4 Nm | 80.4 Nm | 80.4 Nm | 80.4 Nm | 80.4 Nm |
| Wet weight | 248 kg | 245.9 kg | 245.9 kg | 245.8 kg | 245.9 kg | 245.9 kg |
| Seat height | 690 mm | 690 mm | 690 mm | 691 mm | 690 mm | 690 mm |
| Fuel capacity | 13 L | 13 L | 13 L | 12.9 L | 13 L | 13 L |
Pros and cons
Advantages
Low seat
The 690 mm seat height makes it easier to get on and put a foot down at stops.
Low-rev torque
Peak torque arrives at 3,000 rpm, so the engine delivers its strongest pull without needing high revs.
Belt final drive
The belt drive avoids the regular cleaning and adjustment required by a chain.
Things to consider
Weight at walking speed
At 245.9 kg wet, the Bolt can take more effort to maneuver in tight spaces or when parking.
Limited rear travel
The rear suspension has 70 mm of travel, leaving less room to absorb large bumps.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
690 mm
Approx. loaded height
660 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 13 L at 4.6 L/100 km
Lower consumption = longer range.
Estimated range
283 km
With 10% reserve
254 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2026 Yamaha Bolt R-Spec have?
It has an air-cooled, four-stroke V-Twin with a 942 cm³ displacement.
How much power and torque does the 2026 Yamaha Bolt R-Spec make?
It produces 54 hp (40 kW) and 80.4 Nm of torque at 3,000 rpm.
How tall is the seat on the 2026 Yamaha Bolt R-Spec?
The seat height is 690 mm.
How far can the 2026 Yamaha Bolt R-Spec travel on a full tank?
Its calculated range on a full 13-liter tank is about 283 km.
