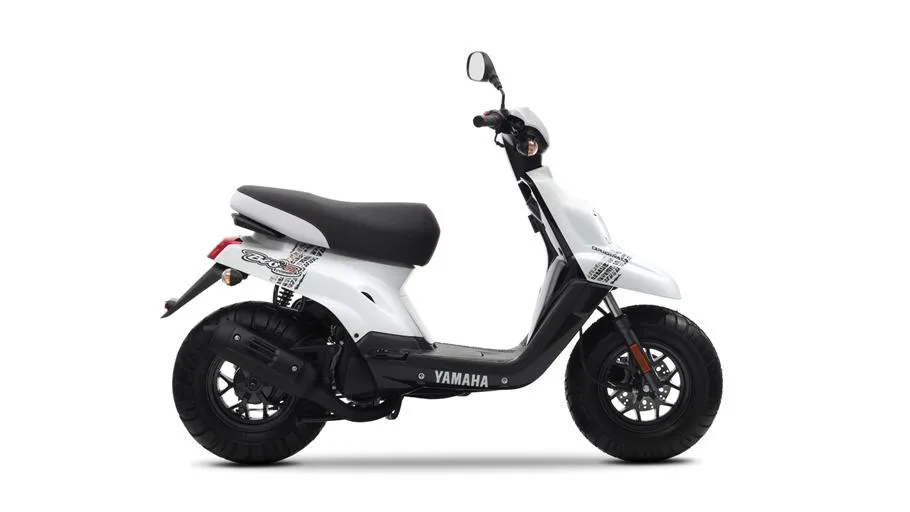

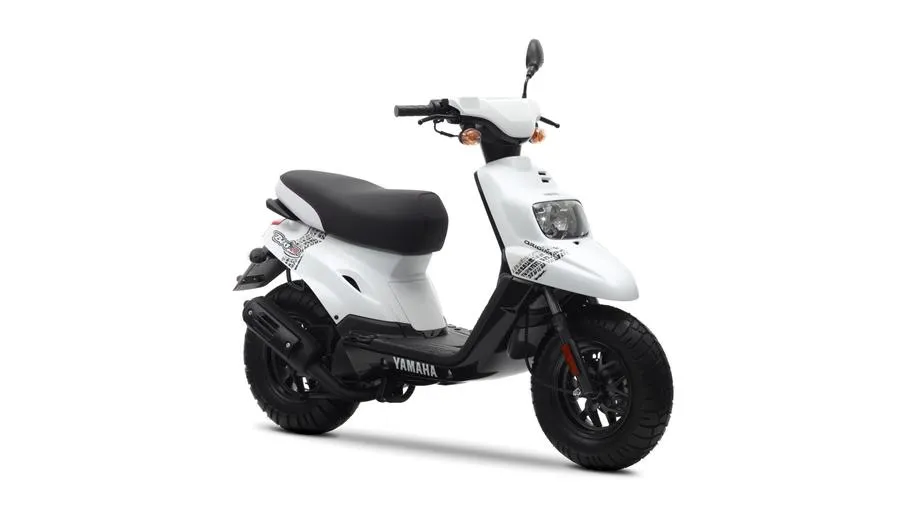

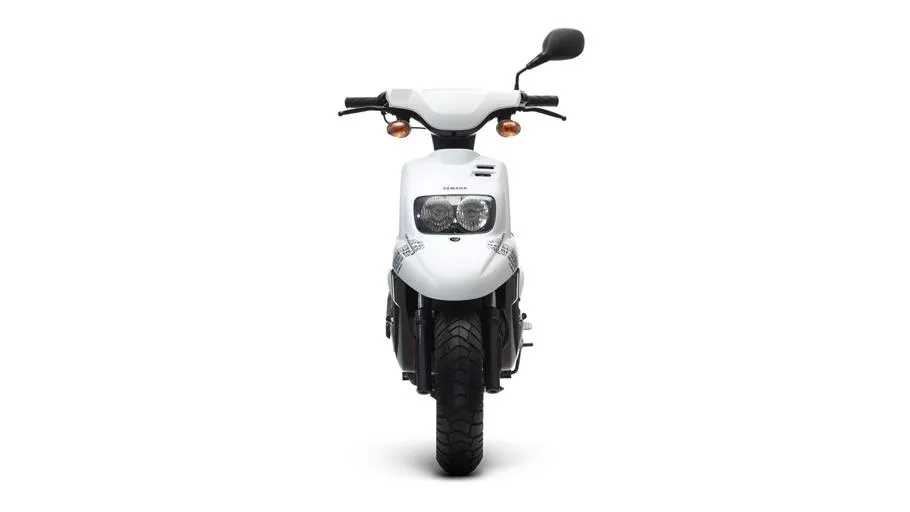

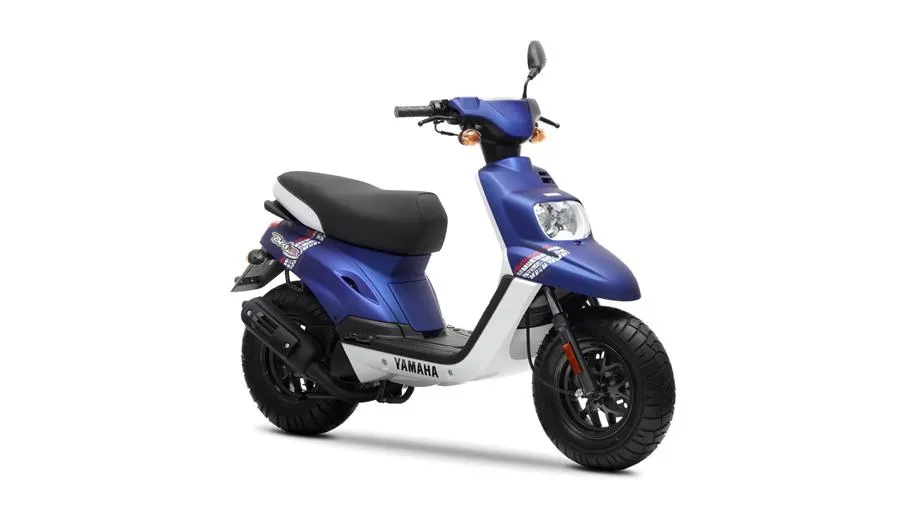

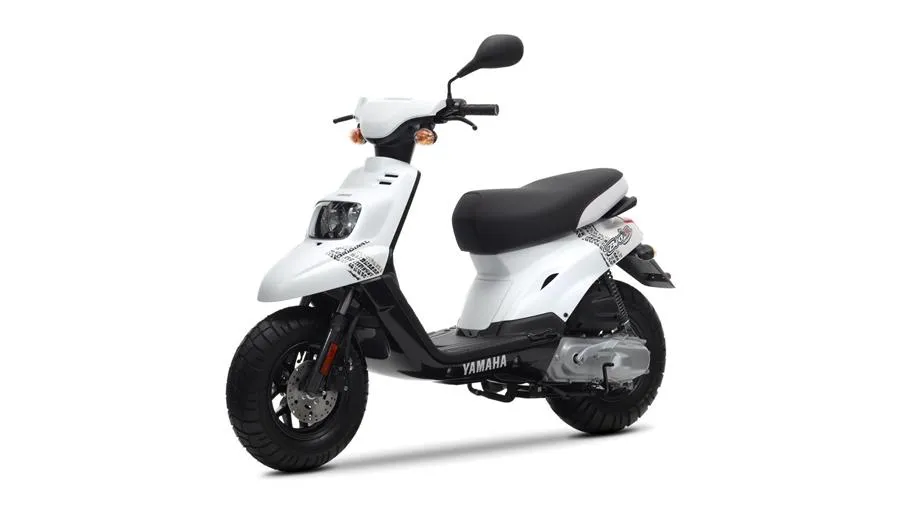

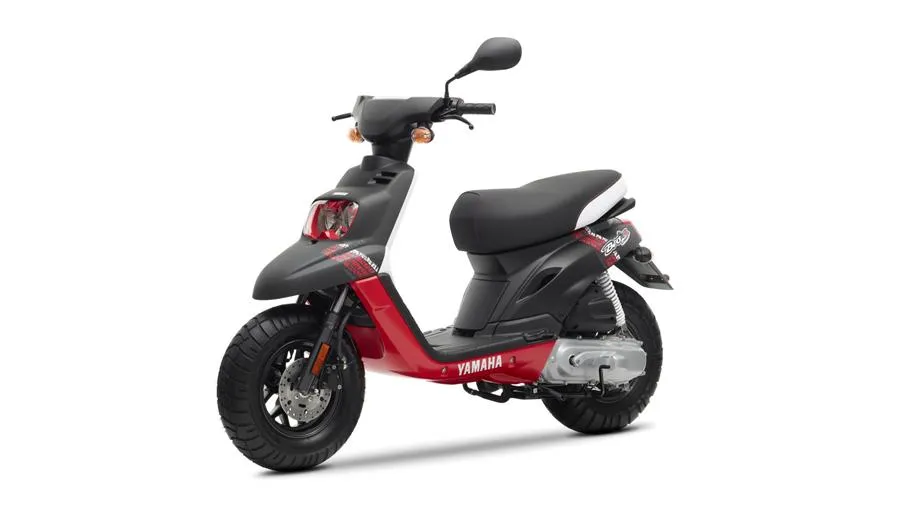

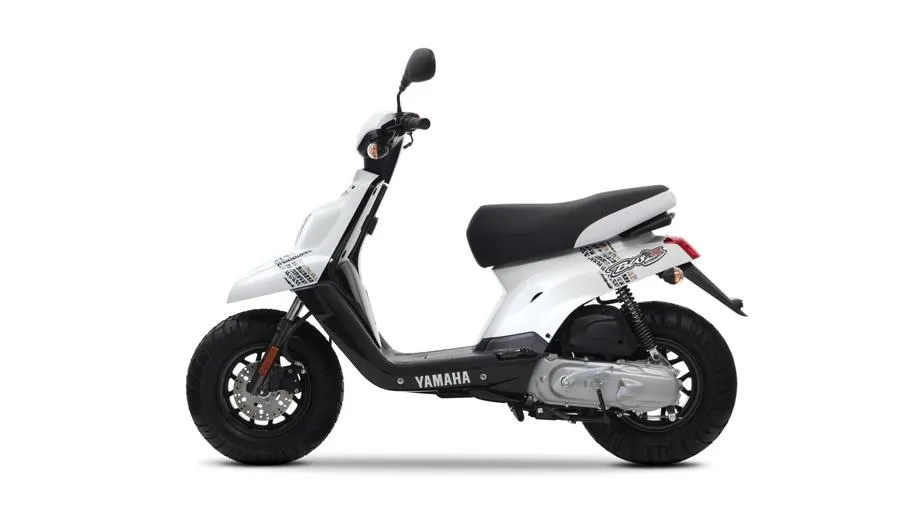

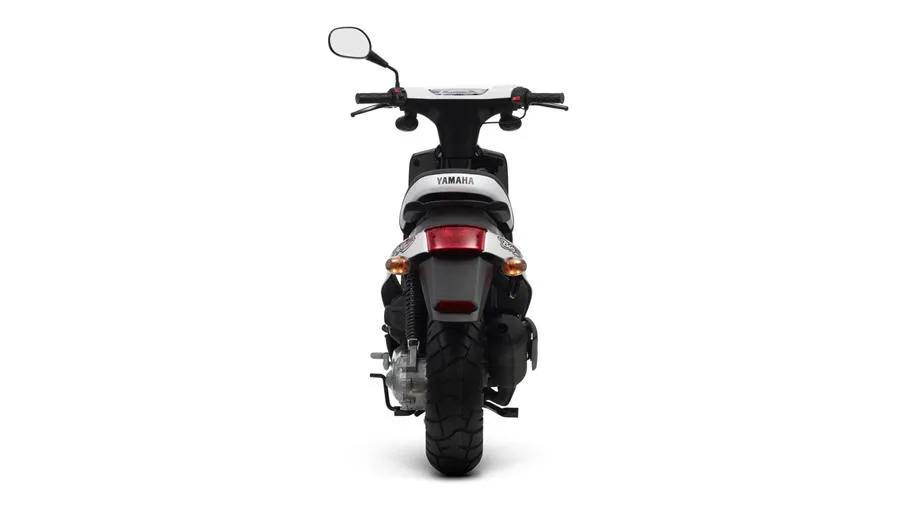

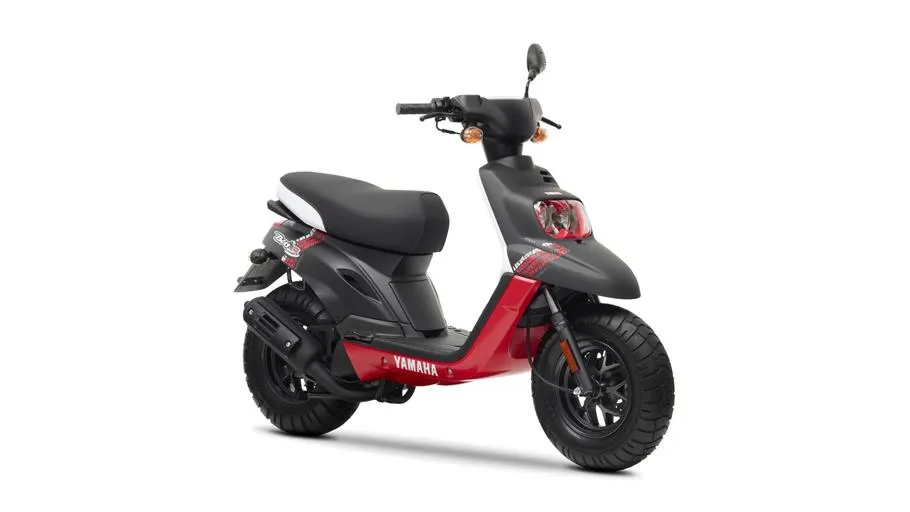

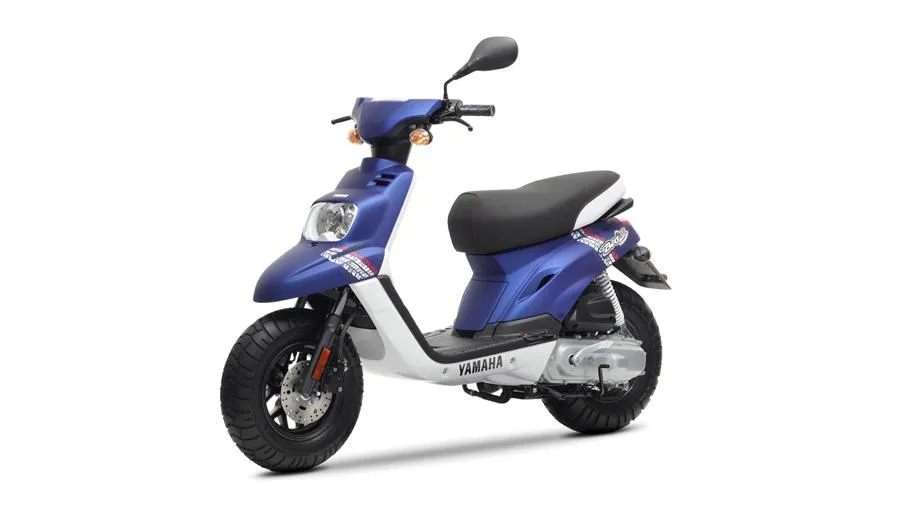

YAMAHA BW's (2012-2013)
Selected year: 2013
Technical specifications
- Engine capacity
- 49 cm³
- Power
- 2.7 hp (2 kW)
- Wet weight
- 82 kg
- Seat height
- 767 mm
Overview
The Yamaha BW’s is a scooter in the BWs family, produced in 2013. Its air-cooled, single-cylinder 2-stroke engine displaces 49 cm³ and makes 3 hp (2 kW); the scooter weighs 82 kg.
An automatic CVT handles gear changes, while the belt final drive means there is no chain to clean or adjust. The 767 mm seat height may make it easier to reach the ground, and 70 mm of travel at each end with 124 mm of ground clearance suits smoother routes better than rough or deeply rutted ones.
Specifications
Engine
Engine
- Engine capacity
- 49 cm³
- Compression ratio
- 7.22: 1
- Fuel system
- Fuel injection
- Stroke
- 41 mm
Performance and transmission
Performance and transmission
- Power
- 2.7 hp (2 kW)
- Final drive
- Belt
- Gearbox
- Automatic
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 5.3 L
- Ground clearance
- 124 mm
- Overall length
- 1,684 mm
- Overall width
- 676 mm
- Seat height
- 767 mm
- Wet weight
- 82 kg
- Wheelbase
- 1,171 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel
Brakes and wheels
Brakes and wheels
- Front tyre
- 120/90-10
- Rear tyre
- 150/80-10
Pros and cons
Advantages
Lightweight
At 82 kg, it should be easier to maneuver at low speeds and move around while parked.
Automatic transmission
The CVT removes manual gear changes, making stop-and-go riding simpler.
Low seat
The 767 mm seat height can help riders get a foot down more easily at stops.
Things to consider
Limited suspension travel
With 70 mm of travel front and rear, the suspension has less room to absorb larger bumps.
Modest ground clearance
The 124 mm clearance can make tall road obstacles and deep ruts more challenging.
Rear drum brake
The rear uses a 110 mm drum rather than a disc, alongside the 180 mm front disc.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
767 mm
Approx. loaded height
737 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 5.3 L at 3.5 L/100 km
Lower consumption = longer range.
Estimated range
151 km
With 10% reserve
136 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2013 Yamaha BW’s have?
It has a 49 cm³ air-cooled, single-cylinder 2-stroke engine producing 3 hp (2 kW).
Does the Yamaha BW’s have an automatic transmission?
Yes, it uses an automatic CVT.
How much does the 2013 Yamaha BW’s weigh?
It weighs 82 kg.
What are the seat height and ground clearance?
The seat is 767 mm high, and ground clearance is 124 mm.
