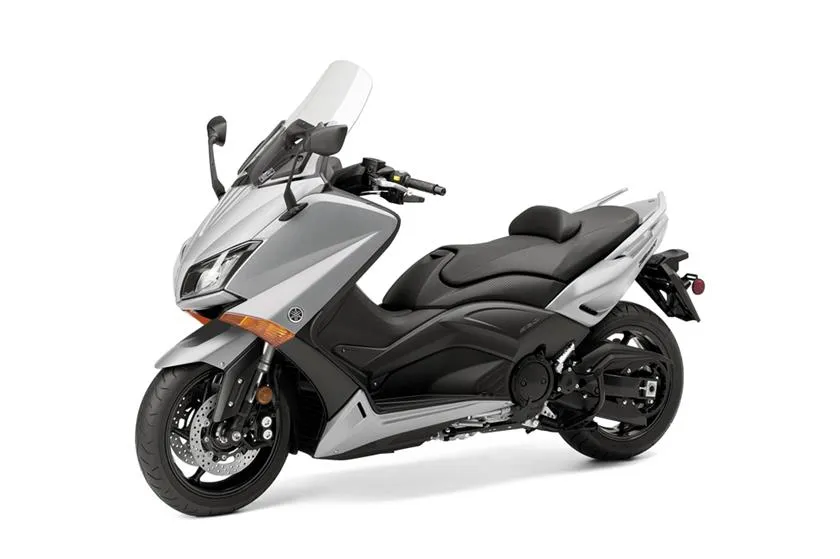

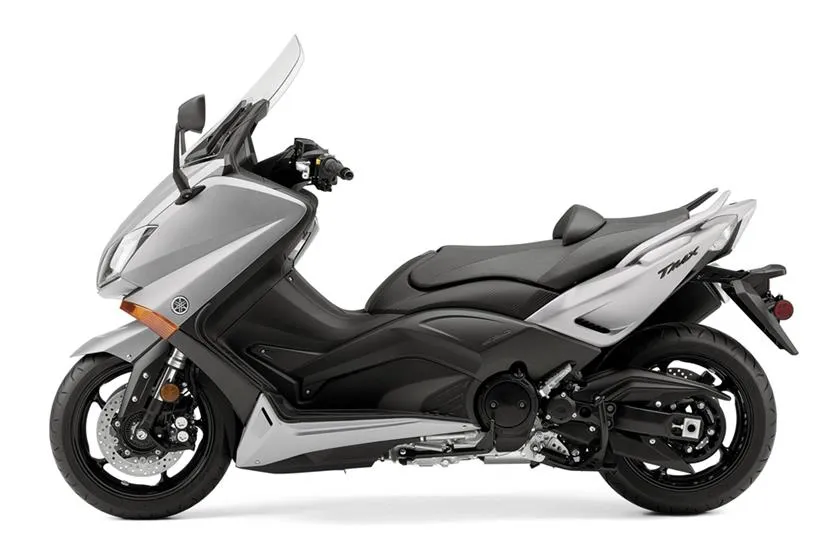

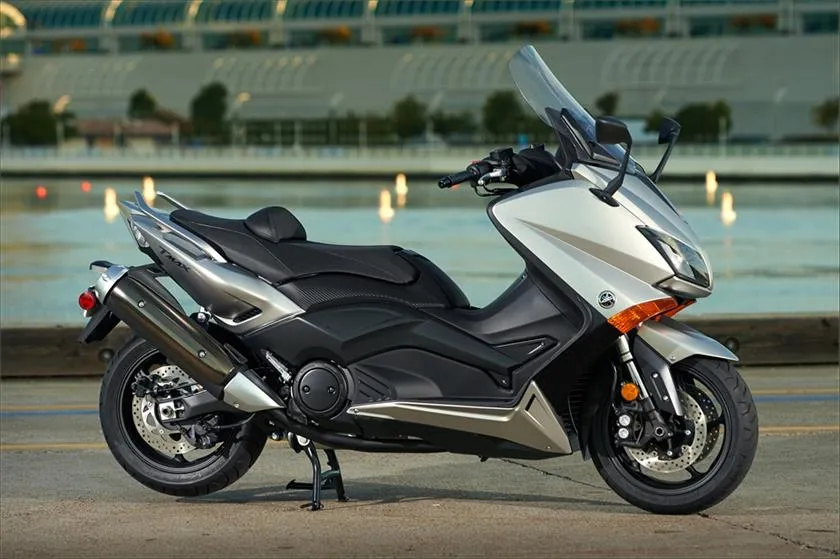

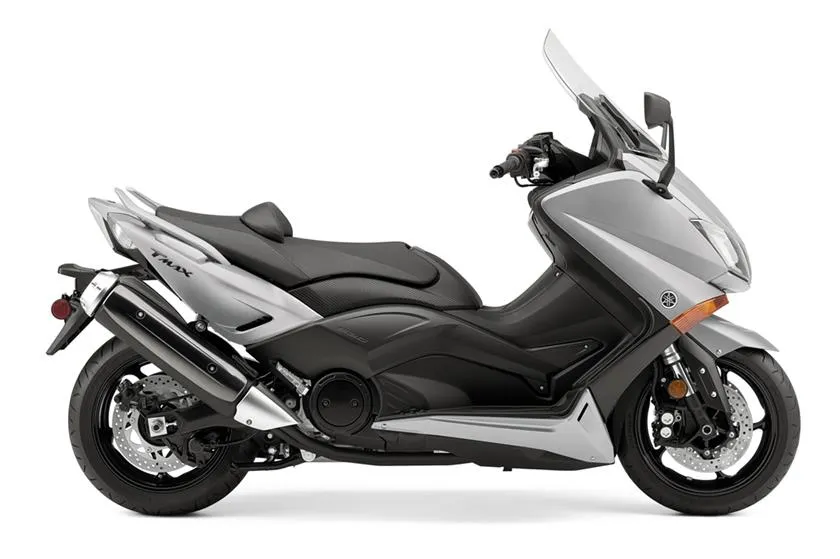

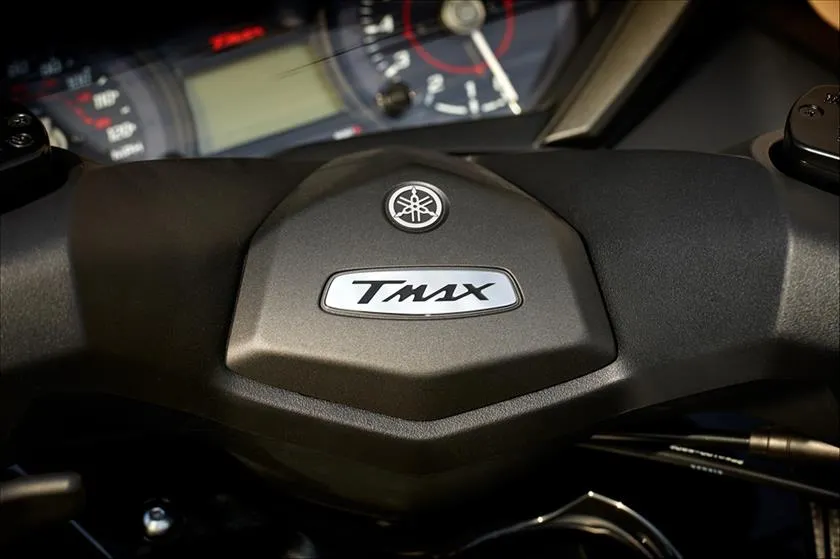

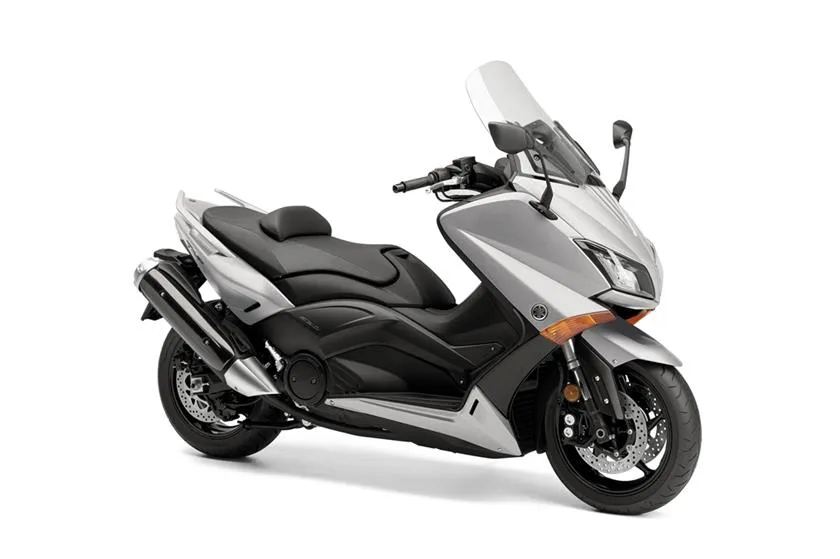

YAMAHA TMAX 530 (2016-2017)
Selected year: 2016
Technical specifications
- Engine capacity
- 530 cm³
- Power
- 46 hp (34 kW) at 6,750 rpm
- Wet weight
- 219 kg
- Seat height
- 800 mm
Overview
The 2016 Yamaha TMAX 530 is a scooter from the TMAX family, produced in 2016. Its 530 cm³ liquid-cooled parallel-twin four-stroke makes 46 hp (34 kW) and 52.3 Nm at 5,250 rpm; wet weight is 219 kg.
The automatic transmission and belt final drive remove manual shifting and chain upkeep from everyday riding. The 800 mm seat height may make it harder for shorter riders to put both feet down, while the 15.1-liter tank and 5.00 L/100 km fuel consumption correspond to a calculated range of about 302 km. ABS is optional.
Specifications
Engine
Engine
- Bore x stroke
- 68.0 x 73.0 mm
- Engine capacity
- 530 cm³
- Compression ratio
- 10.9:1
- Cooling system
- Liquid
- Engine type
- Parallel Twin, four-stroke
- Fuel system
- Injection
- Ignition
- Digital TCI: Transistor Controlled Ignition
- Lubrication system
- Dry sump
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 116 g/km CO₂
- Fuel consumption
- 5 L/100 km
- Power
- 46 hp (34 kW) at 6,750 rpm
- Power weight ratio
- 0.2239 HP/kg (dry)
- Torque
- 52.3 Nm at 5,250 rpm
- Clutch
- Wet, multiple-disc automatic centrifugal
- Final drive
- Belt
- Transmission type
- Automatic
Dimensions and weight
Dimensions and weight
- Dry weight
- 205 kg
- Fuel capacity
- 15.1 L
- Ground clearance
- 124 mm
- Overall height
- 1,475 mm
- Overall length
- 2,195 mm
- Overall width
- 775 mm
- Seat height
- 800 mm
- Wet weight
- 219 kg
- Wheelbase
- 1,580 mm
Chassis and suspension
Chassis and suspension
- Frame
- Die-cast aluminium frame
- Front suspension
- 43mm telescopic forks
- Front wheel travel
- 120 mm
- Rear suspension
- Swingarm
- Rear wheel travel
- 116 mm
Brakes and wheels
Brakes and wheels
- Abs
- Optional
- Front brakes
- Double disc. Optional ABS.
- Front brakes diameter
- 267 mm
- Front tyre
- 120/70-15
- Rear brakes
- Single disc. Optional ABS.
- Rear brakes diameter
- 282 mm
- Rear tyre
- 160/60-15
Colours and equipment
Colours and equipment
- Colours
- Sonic Gray
- Warranty
- 12
Pros and cons
Advantages
Automatic transmission
It handles gear changes automatically, so you can ride without shifting by hand.
Belt final drive
The belt avoids the routine cleaning and adjustment required by a chain.
Useful tank range
The 15.1-liter tank gives a calculated range of about 302 km at the stated fuel consumption.
Things to consider
Heavy at low speeds
At 219 kg wet, the TMAX can take more effort to maneuver in tight spaces or while parking.
ABS costs an option
ABS is optional rather than standard, so it is not included on every version.
800 mm seat height
The seat may make it difficult for shorter riders to plant both feet firmly at a stop.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
800 mm
Approx. loaded height
770 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 15.1 L at 5 L/100 km
Lower consumption = longer range.
Estimated range
302 km
With 10% reserve
272 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much power does the 2016 Yamaha TMAX 530 make?
Its 530 cm³ parallel-twin engine produces 46 hp (34 kW) and 52.3 Nm at 5,250 rpm.
Does the Yamaha TMAX 530 have an automatic transmission?
Yes, it has an automatic transmission and belt final drive.
What is the fuel range of the 2016 TMAX 530?
Its 15.1-liter tank and stated fuel consumption give a calculated range of about 302 km.
Does the 2016 Yamaha TMAX 530 have ABS?
ABS is optional on the front and rear brakes.
