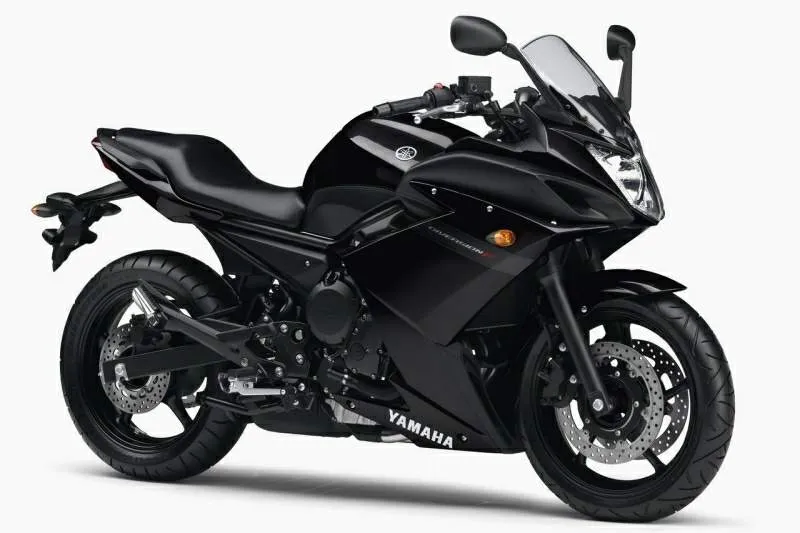

Yamaha XJ 6 Diversion F
- Production years
- 2011–2015
- Brand
- Yamaha
Choose model year
1 / 1
Selected year: 2015
Technical specifications
- Engine capacity
- 600 cm³
- Power
- 76 hp (57 kW) at 10,000 rpm
- Wet weight
- 217 kg
- Seat height
- 785 mm
Overview
The Yamaha XJ 6 Diversion F is a Sport Tourer from the XJ family, produced from 2011 to 2015. The 2015 model has a 600 cm³ liquid-cooled, fuel-injected inline-four engine producing 76 hp (57 kW) and 59.7 Nm of torque at 6,100 rpm, with a wet weight of 217 kg.
Its 785 mm seat height and 217 kg wet weight are useful figures to consider when maneuvering at low speeds or moving the bike while parked. The rear monoshock has adjustable spring preload, so its setup can be adapted to different loads, while the chain final drive needs regular cleaning and adjustment. ABS was optional rather than standard.
Specifications
Engine
Engine
- Bore x stroke
- 65.5 x 44.5 mm
- Engine capacity
- 600 cm³
- Compression ratio
- 12.2:1
- Cooling system
- Liquid
- Engine type
- In-line four, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Lubrication system
- Wet sump
- Oil capacity
- 3.4 L
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 2 g/km CO₂
- Power
- 76 hp (57 kW) at 10,000 rpm
- Power weight ratio
- 0.3521 HP/kg (wet)
- Torque
- 59.7 Nm at 6,100 rpm
- Clutch
- Wet, Multiple Disc
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 17 L
- Ground clearance
- 140 mm
- Overall height
- 1,210 mm
- Overall length
- 2,120 mm
- Overall width
- 770 mm
- Reserve fuel capacity
- 4 L
- Seat height
- 785 mm
- Wet weight
- 217 kg
- Wheelbase
- 1,440 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel, Diamond Shaped
- Front suspension
- Telescopic forks
- Front wheel travel
- 130 mm
- Rake
- 26.0°
- Rear suspension
- Linked monoshock with spring preload adjustment
- Rear wheel travel
- 130 mm
- Trail
- 104 mm
Brakes and wheels
Brakes and wheels
- Abs
- Optional
- Front brakes
- Double disc. Optional ABS
- Front brakes diameter
- 298 mm
- Front tyre
- 120/70-ZR17
- Rear brakes
- Single disc. Optional ABS
- Rear brakes diameter
- 245 mm
- Rear tyre
- 160/60-ZR17
Colours and equipment
Colours and equipment
- Colours
- White, blue
Model years
No recorded specification changes between model years.
| Specification | ||||
|---|---|---|---|---|
| Engine capacity | 600 cm³ | 600 cm³ | 600 cm³ | 600 cm³ |
| Power | 76 hp (57 kW) | 76 hp (57 kW) | 76 hp (57 kW) | 76 hp (57 kW) |
| Torque | 59.7 Nm | 59.7 Nm | 59.7 Nm | 59.7 Nm |
| Wet weight | 217 kg | 217 kg | 217 kg | 217 kg |
| Seat height | 785 mm | 785 mm | 785 mm | 785 mm |
| Fuel capacity | 17 L | 17 L | 17 L | 17 L |
Pros and cons
Advantages
Adjustable rear preload
The linked rear monoshock lets you adjust spring preload to suit the load carried.
Twin front brake discs
Two 298 mm front discs provide braking at both sides of the front wheel.
Things to consider
ABS was optional
You will need to confirm that a particular bike is equipped with ABS rather than assume it is included.
Chain final drive
The chain needs periodic cleaning and adjustment.
217 kg wet weight
That weight can make pushing the motorcycle around or balancing it at walking pace more demanding.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
785 mm
Approx. loaded height
755 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 17 L at 7 L/100 km
Lower consumption = longer range.
Estimated range
243 km
With 10% reserve
219 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2015 Yamaha XJ 6 Diversion F have?
It has a 600 cm³ liquid-cooled, fuel-injected, four-stroke inline-four engine.
How much power and torque does it produce?
It produces 76 hp (57 kW) and 59.7 Nm of torque at 6,100 rpm.
What are the seat height and wet weight?
The seat is 785 mm high, and wet weight is 217 kg.
Does the 2015 Yamaha XJ 6 Diversion F have ABS?
ABS was optional on the 2015 model.
