Honda CB 1000RA ABS
- Production years
- 2013–2014
- Brand
- Honda
1 / 5

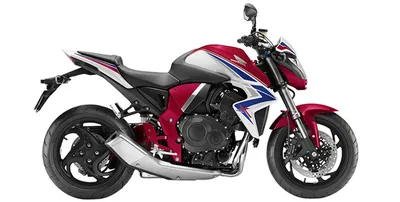

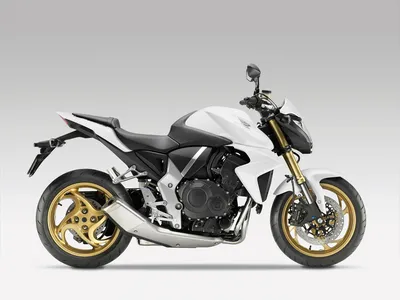

HONDA CB1000RA ABS (2013-2014)
Selected year: 2014
Technical specifications
- Engine capacity
- 998 cm³
- Wet weight
- 222 kg
- Seat height
- 826 mm
Overview
The Honda CB 1000RA ABS is a naked motorcycle from the CB family, produced for 2014. Its liquid-cooled 998 cm³ DOHC inline-four has four valves per cylinder and delivers 100 Nm of torque at 8,000 rpm; the motorcycle weighs 222 kg.
The 826 mm seat height affects how easily a rider can put their feet down at a stop. ABS works at both the front and rear brakes, while the fully adjustable 43 mm inverted front fork and rear shock let riders tune suspension response; the 17 l tank sets the amount of fuel carried between stops, and the sealed O-ring chain requires chain maintenance.
Specifications
Engine
Engine
- Engine capacity
- 998 cm³
- Compression ratio
- 11.2:1
- Stroke
- 76 mm
Performance and transmission
Performance and transmission
- Torque
- 100 Nm at 8,000 rpm
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 17 L
- Seat height
- 826 mm
- Wet weight
- 222 kg
- Wheelbase
- 1,445 mm
Chassis and suspension
Chassis and suspension
- Frame
- Aluminium
Pros and cons
Advantages
ABS at both ends
ABS on the front and rear brakes can help the rider retain control during hard braking.
Adjustable suspension
The fully adjustable front fork and rear preload and rebound damping allow suspension setup to be tailored to the rider and road.
Strong peak torque
Its 100 Nm peak at 8,000 rpm gives the engine substantial torque when it reaches that part of the rev range.
Things to consider
222 kg to maneuver
At 222 kg, the motorcycle takes more effort to move around by hand and handle at very low speeds.
Chain maintenance
The sealed O-ring final-drive chain still needs cleaning, lubrication, and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Balls of both feet likely down
You should reach on both sides, but probably not with your heels fully down.
Seat height
826 mm
Approx. loaded height
796 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 17 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
309 km
With 10% reserve
278 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2014 Honda CB 1000RA ABS have?
It has a liquid-cooled 998 cm³ DOHC inline-four with four valves per cylinder.
How much torque does the Honda CB 1000RA ABS produce?
It produces 100 Nm of torque at 8,000 rpm.
Does the 2014 Honda CB 1000RA ABS have ABS?
Yes, ABS is fitted to both the front and rear brakes.
What is the seat height of the 2014 Honda CB 1000RA ABS?
Its seat height is 826 mm.
