Honda CRF 110F
- Production years
- 2013–2027
- Brand
- Honda
Choose model year
1 / 3

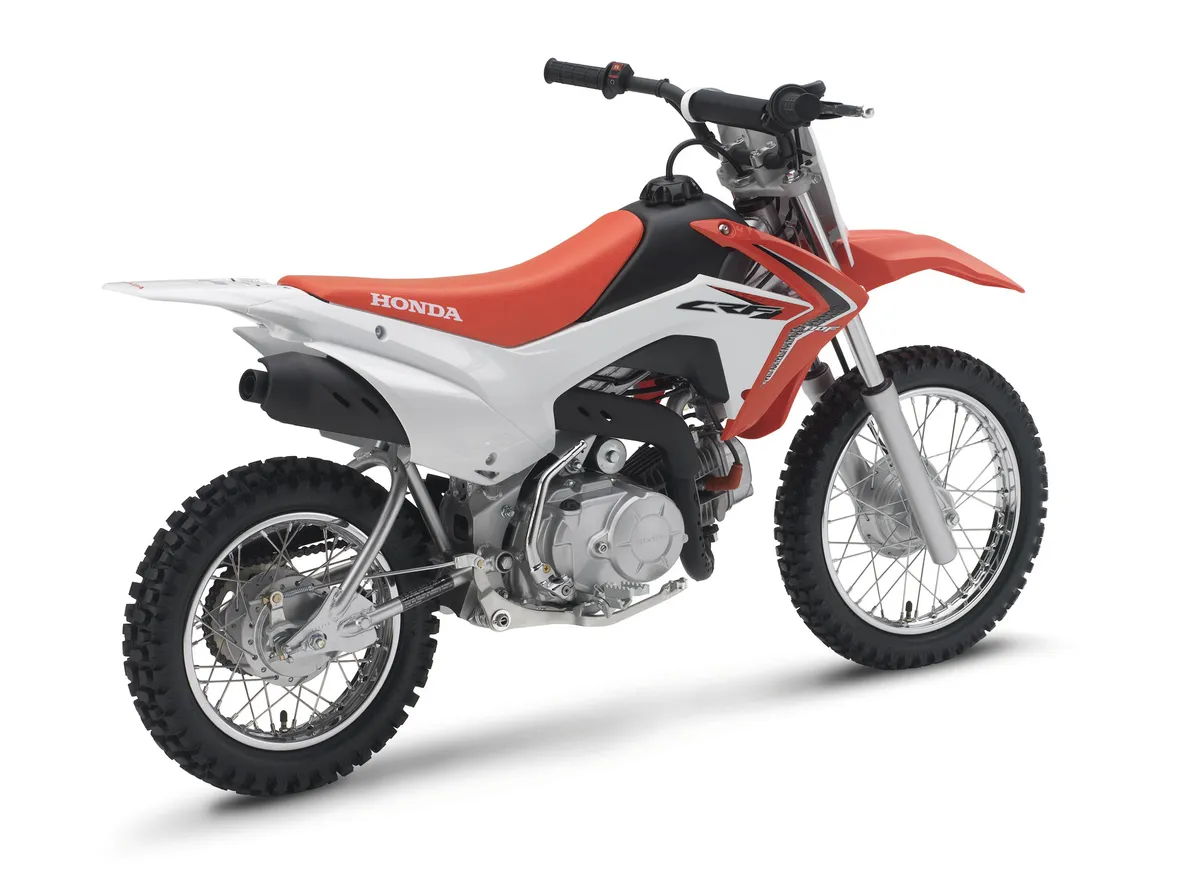

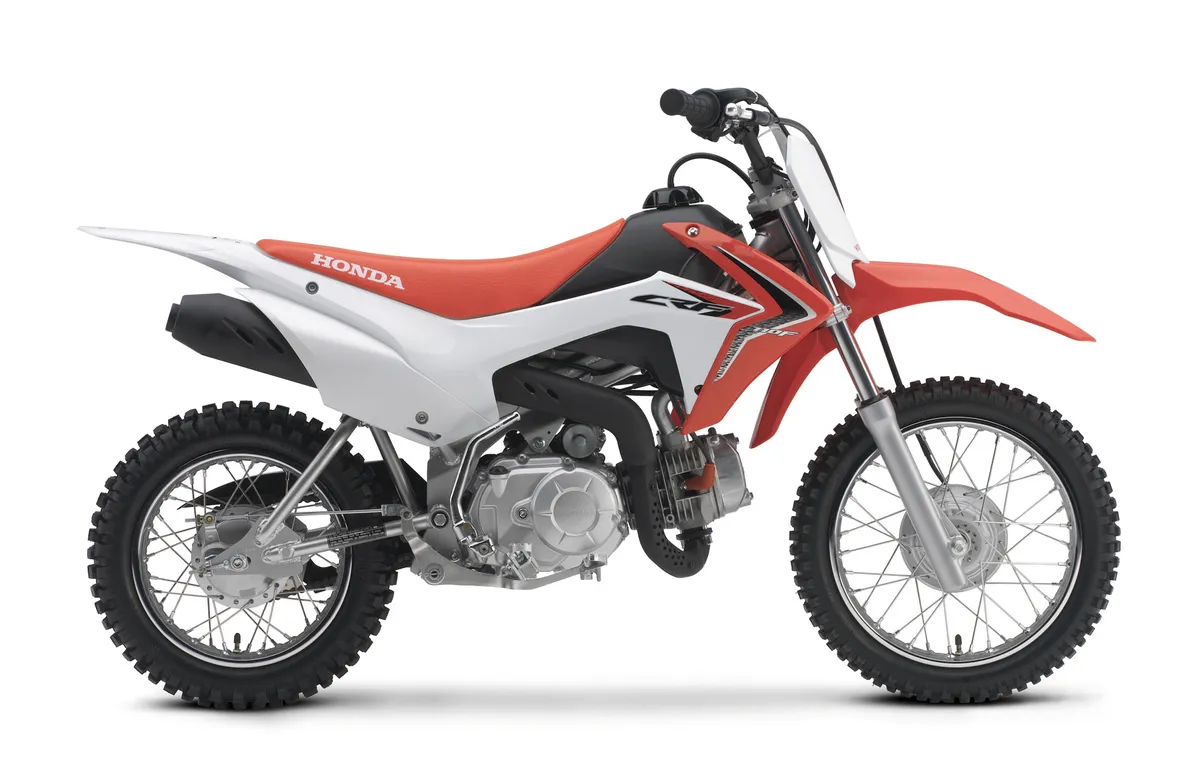

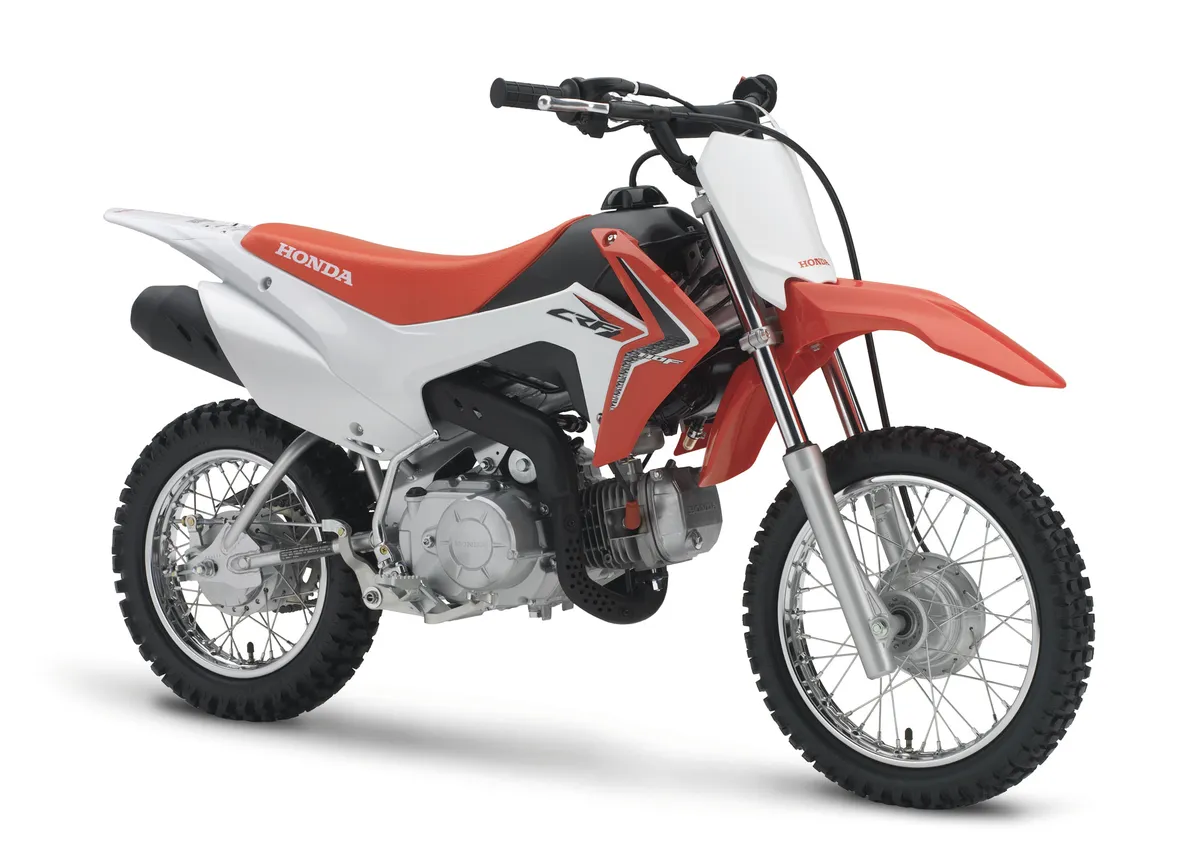

HONDA CRF110F (2013-2018)
Selected year: 2027
Technical specifications
- Engine capacity
- 109 cm³
- Power
- 7 hp (5 kW)
- Wet weight
- 76.7 kg
- Seat height
- 658 mm
Overview
The Honda CRF 110F is a minibike produced from 2013 through 2027. The 2027 model has a 109.0 cm³ air-cooled, four-stroke single making 7 hp (5 kW), with a wet weight of 76.7 kg.
Its 658 mm seat and 76.7 kg wet weight make it easier for smaller riders to reach the ground and maneuver at low speed. The four-speed gearbox is shifted manually, while the automatic centrifugal clutch removes the need to operate a clutch lever; electric and kick starting provide two ways to get underway. The 3.80-liter tank means fuel stops come sooner than with a larger tank, and the front and rear brakes are mechanical drums.
Specifications
Engine
Engine
- Bore x stroke
- 50.0 x 55.6 mm
- Engine capacity
- 109 cm³
- Compression ratio
- 9.0:1
- Cooling system
- Air
- Engine type
- Single, four-stroke
- Fuel system
- Injection
- Ignition
- Full transistorized
- Starting
- Electric & kick
- Valves per cylinder
- 2
Performance and transmission
Performance and transmission
- Power
- 7 hp (5 kW)
- Power weight ratio
- 0.0913 HP/kg (wet)
- Clutch
- Automatic, centrifugal multiplate wet clutch
- Final drive
- Chain
- Gearbox
- Manual 4-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 3.8 L
- Ground clearance
- 170 mm
- Overall height
- 922 mm
- Overall length
- 1,542 mm
- Overall width
- 678 mm
- Seat height
- 658 mm
- Wet weight
- 76.7 kg
- Wheelbase
- 1,064 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel backbone
- Front suspension
- 31mm conventional telescopic coil-spring fork; 4.3 in. travel
- Front wheel travel
- 109 mm
- Rake
- 25.3deg
- Rear suspension
- Single shock; 3.8 in. travel
- Rear wheel travel
- 97 mm
- Trail
- 52 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Mechanical; single 95mm leading-trailing drum
- Front brakes diameter
- 95 mm
- Front tyre
- 70/100-14 w/ tube
- Rear brakes
- Mechanical; single 95mm leading-trailing drum
- Rear brakes diameter
- 109 mm
- Rear tyre
- 80/100-12 w/ tube
Colours and equipment
Colours and equipment
- Colours
- Red
Model years
2014
Engine capacity: 110 cm³ → 109 cm³; Wet weight: 74 kg → 73.9 kg; Seat height: 667 mm → 668 mm; Fuel capacity: 5 L → 4.2 L
2019
Seat height: 668 mm → 658 mm
2020
Wet weight: 73.9 kg → 77.1 kg; Fuel capacity: 4.2 L → 3.8 L
2022
Wet weight: 77.1 kg → 76.7 kg; Seat height: 658 mm → 657 mm; Fuel capacity: 3.8 L → 4.5 L
2023
Fuel capacity: 4.5 L → 3.8 L
2024
Seat height: 657 mm → 658 mm
2025
Seat height: 658 mm → 657 mm
2026
Power: 7.2 hp (5.4 kW) → 7 hp (5 kW); Seat height: 657 mm → 658 mm
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 109 cm³ | 109 cm³ | 109 cm³ | 109 cm³ | 109 cm³ | 109 cm³ |
| Power | 7.2 hp (5.4 kW) | 7.2 hp (5.4 kW) | 7.2 hp (5.4 kW) | 7.2 hp (5.4 kW) | 7 hp (5 kW) | 7 hp (5 kW) |
| Torque | 8.9 Nm | 8.9 Nm | 8.9 Nm | 8.9 Nm | — | — |
| Wet weight | 76.7 kg | 76.7 kg | 76.7 kg | 76.7 kg | 76.7 kg | 76.7 kg |
| Seat height | 657 mm | 657 mm | 658 mm | 657 mm | 658 mm | 658 mm |
| Fuel capacity | 4.5 L | 3.8 L | 3.8 L | 3.8 L | 3.8 L | 3.8 L |
Pros and cons
Advantages
Low seat
The 658 mm seat makes it easier for shorter riders to get both feet down.
Light wet weight
At 76.7 kg wet, it is easier to maneuver at low speeds and move around when parked.
Automatic clutch
The automatic centrifugal clutch lets the rider shift through the four-speed gearbox without operating a clutch lever.
Things to consider
Small fuel tank
The 3.80-liter tank means more frequent fuel stops than a larger tank would.
Drum brakes
Mechanical drum brakes at both ends lack the braking feel and heat management of disc brakes.
Limited suspension travel
The front fork's 4.3 inches and rear shock's 3.8 inches of travel leave less room to absorb larger bumps.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
658 mm
Approx. loaded height
628 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 3.8 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
69 km
With 10% reserve
62 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine size of the 2027 Honda CRF 110F?
It has a 109.0 cm³, air-cooled, four-stroke single-cylinder engine.
How much power does the 2027 Honda CRF 110F make?
It makes 7 hp (5 kW).
How tall is the seat on the 2027 Honda CRF 110F?
The seat height is 658 mm.
Does the 2027 Honda CRF 110F have electric start?
Yes, it has both electric and kick starting.
