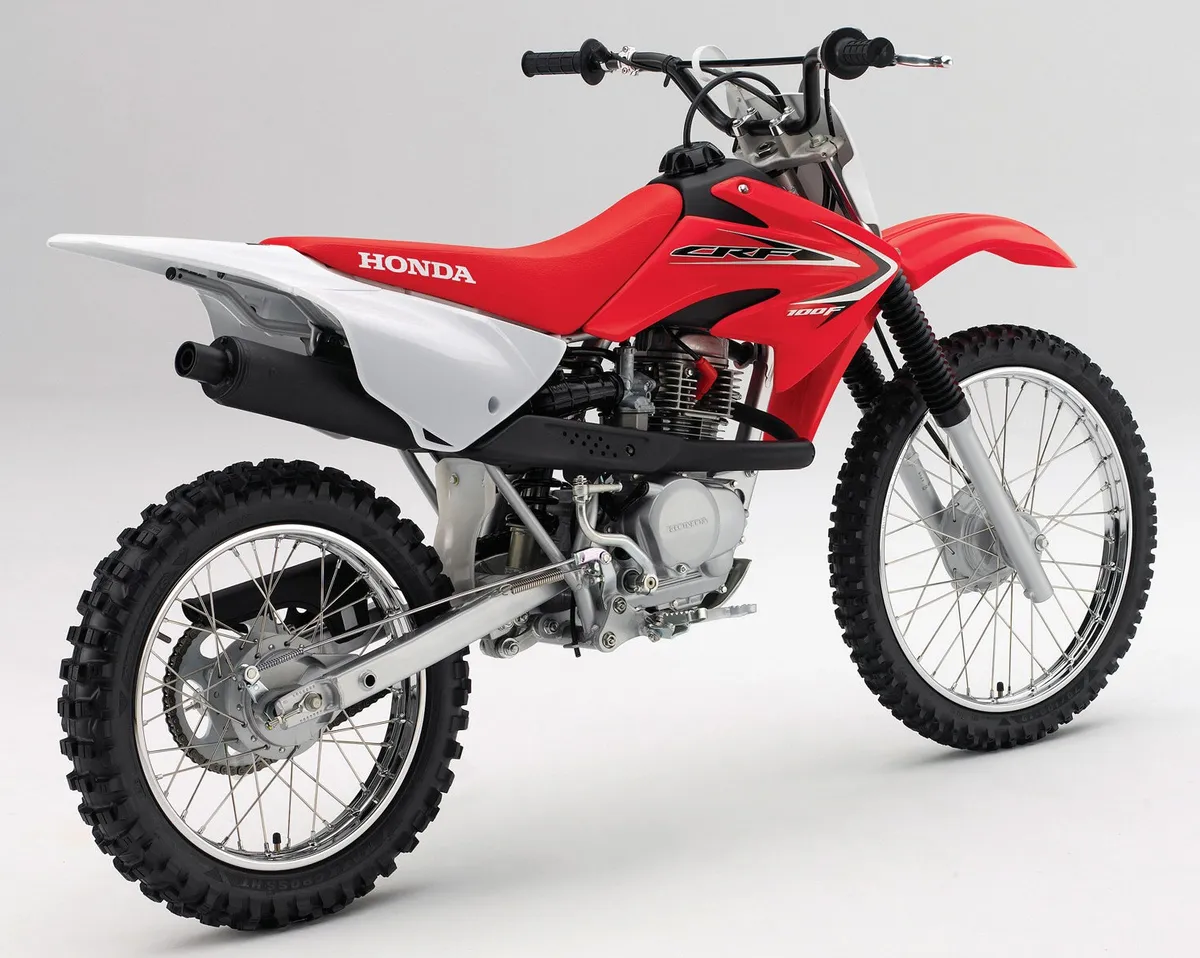

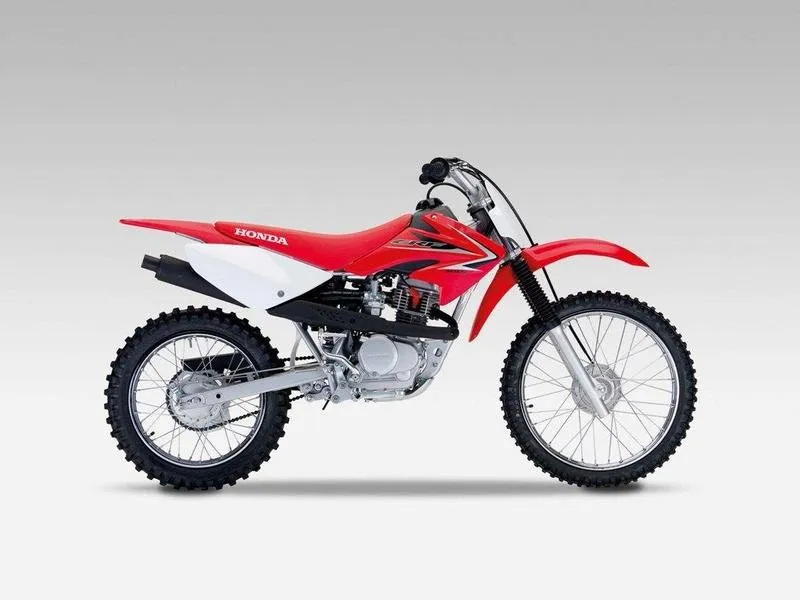

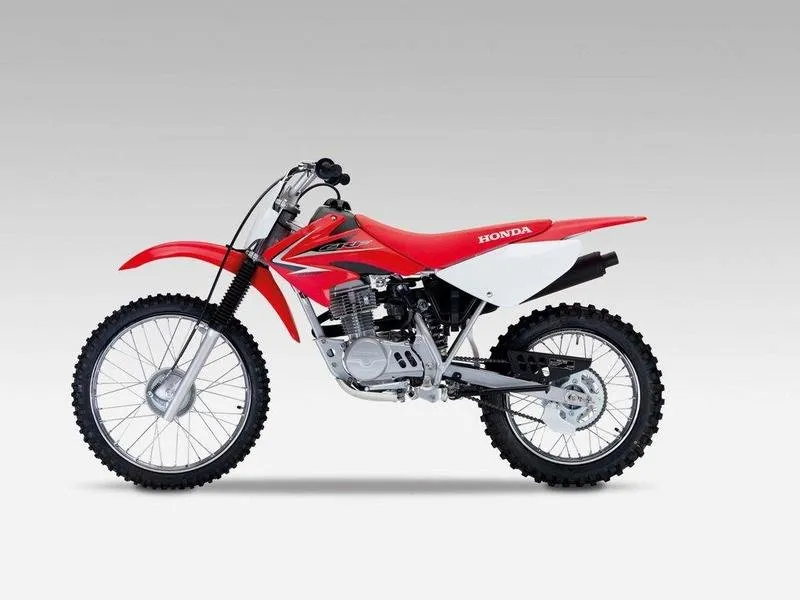

Honda CR F 100F
- Production years
- 2006–2016
- Brand
- Honda
Choose model year
1 / 10

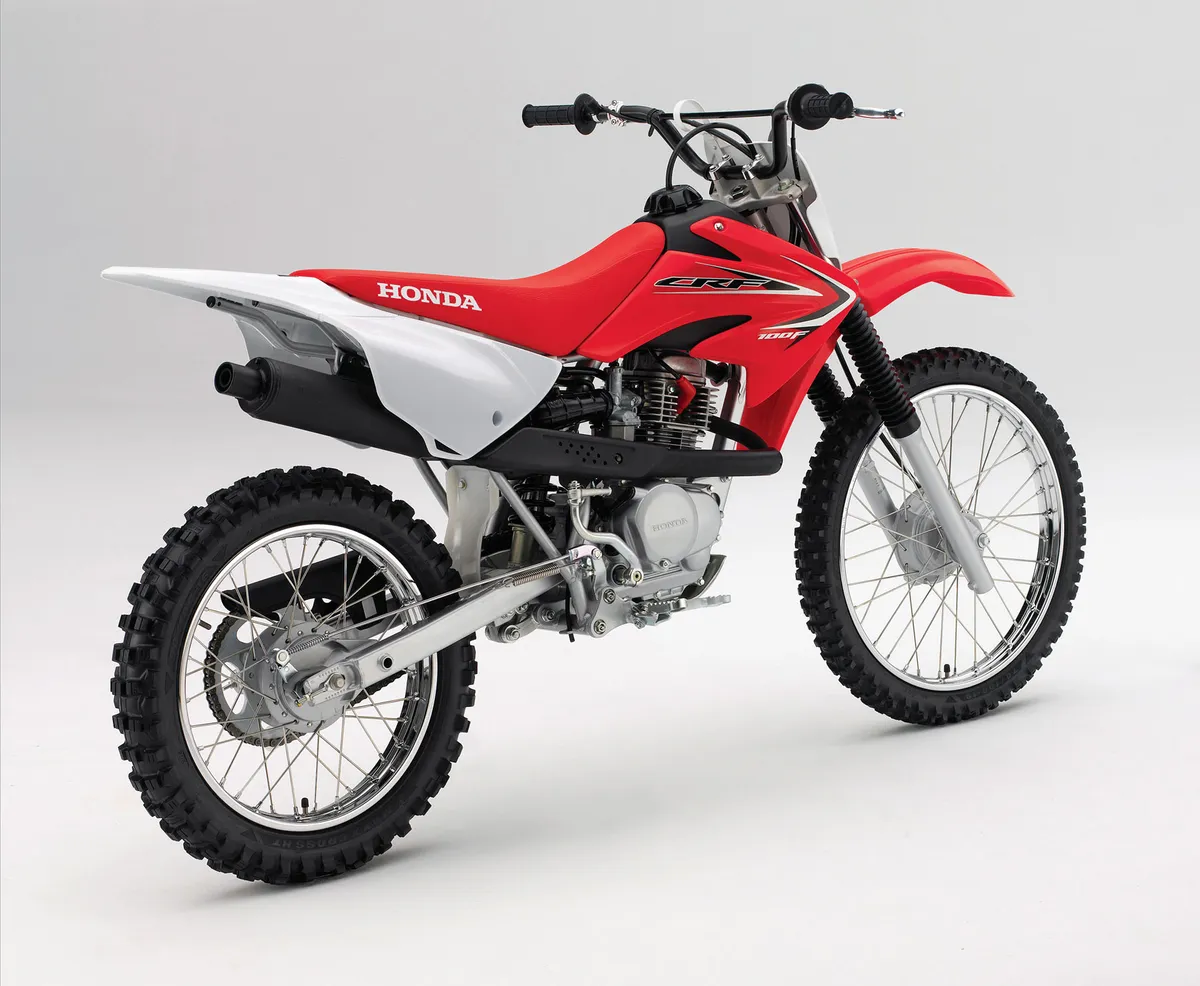

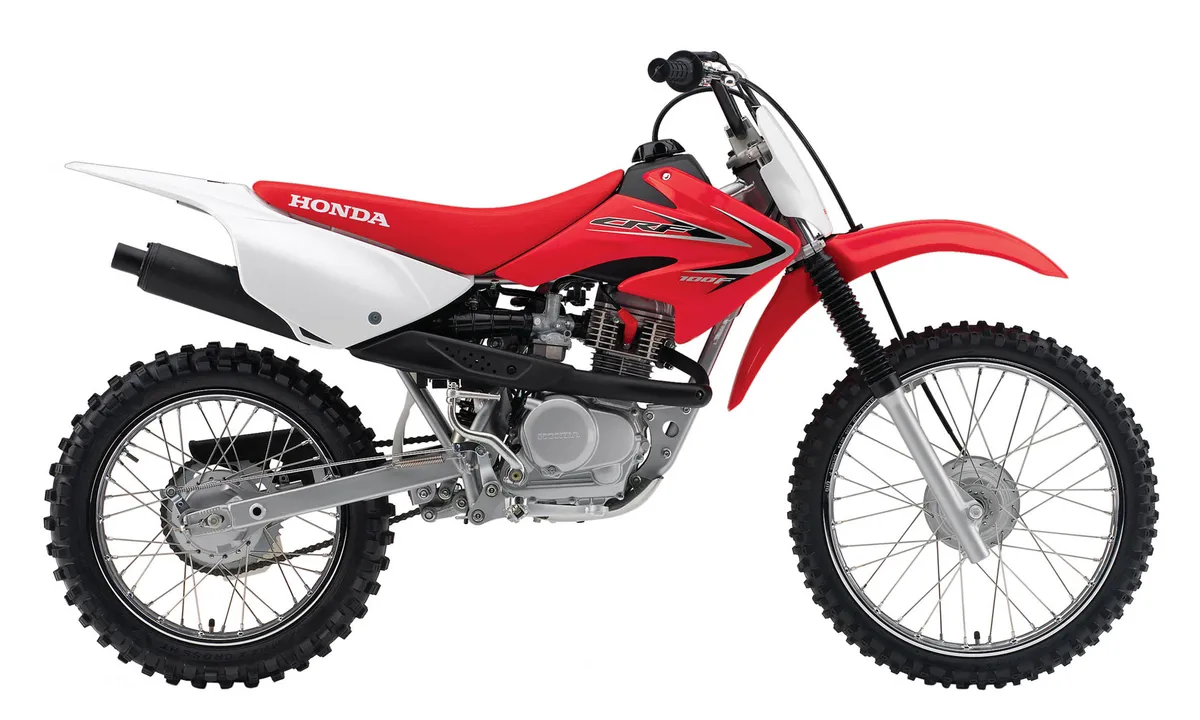

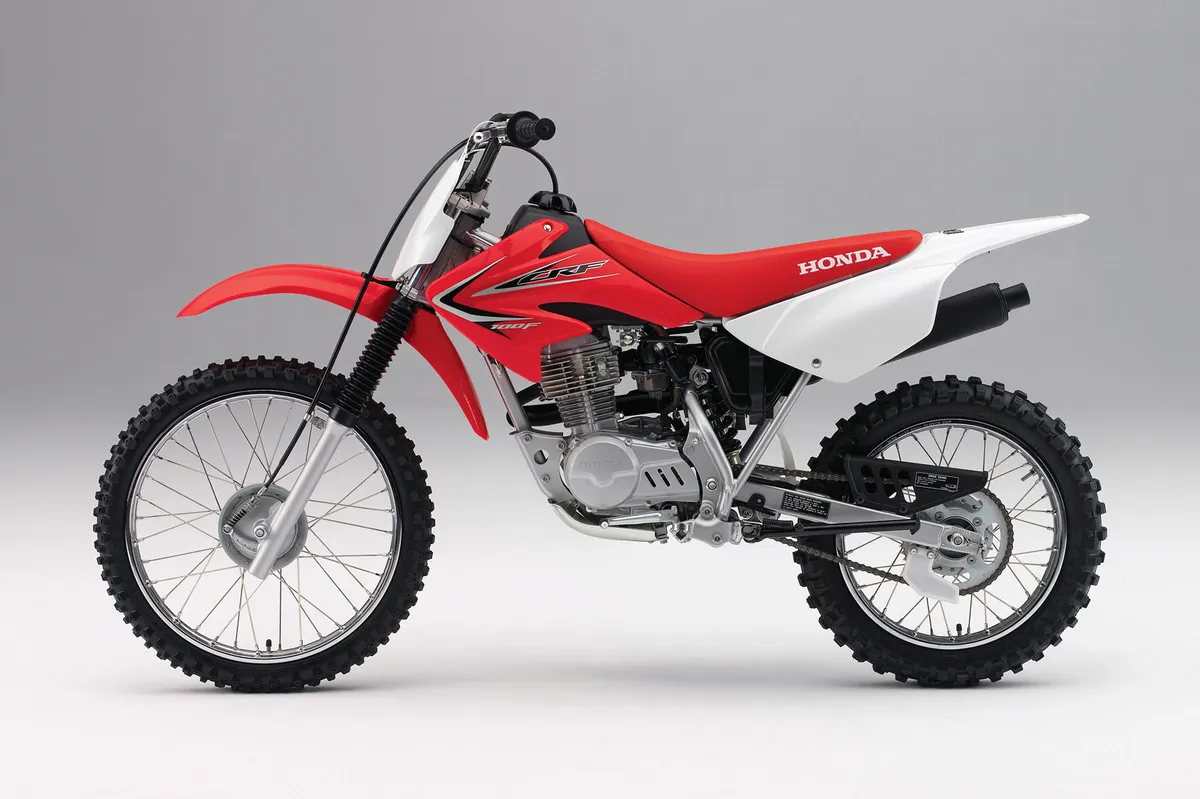

HONDA CRF100F (2010-2011)
Selected year: 2016
Technical specifications
- Engine capacity
- 99 cm³
- Power
- 8 hp (6 kW)
- Wet weight
- 77.1 kg
- Seat height
- 785 mm
Overview
The Honda CR F 100F is an enduro bike produced from 2006 to 2016. The 2016 model has a 99.0 cm³, air-cooled, single-cylinder four-stroke engine producing 8 hp (6 kW); it weighs 77.1 kg wet.
At 785 mm, the seat height is relatively low, which can make footing easier for many riders. The 77.1 kg wet weight helps keep the bike manageable at low speeds, while 251 mm of ground clearance and suspension travel of 132 mm up front and 147 mm at the rear suit riding over uneven ground. Electric starting makes getting underway straightforward, and the 4.90-liter tank includes a 1.10-liter reserve. Both wheels use drum brakes.
Specifications
Engine
Engine
- Bore x stroke
- 53.0 x 45.0 mm
- Engine capacity
- 99 cm³
- Compression ratio
- 9.4:1
- Cooling system
- Air
- Engine type
- Single, four-stroke
- Fuel system
- Carburettor
- Ignition
- CDI
- Starting
- Electric
- Valves per cylinder
- 2
Performance and transmission
Performance and transmission
- Power
- 8 hp (6 kW)
- Power weight ratio
- 0.1070 HP/kg (dry)
- Final drive
- Chain
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 74.8 kg
- Fuel capacity
- 4.9 L
- Ground clearance
- 251 mm
- Reserve fuel capacity
- 1.1 L
- Seat height
- 785 mm
- Wet weight
- 77.1 kg
- Wheelbase
- 1,250 mm
Chassis and suspension
Chassis and suspension
- Frame
- 27.0mm leading-axle Showa fork; 5.2-inch travel
- Front suspension
- 27.0mm leading-axle Showa® fork; 5.2-inch travel
- Front wheel travel
- 132 mm
- Rake
- 28.5°
- Rear suspension
- Pro-Link® Showa single shock; 5.8-inch travel
- Rear wheel travel
- 147 mm
- Trail
- 99 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Expanding brake (drum brake)
- Front brakes diameter
- 99 mm
- Front tyre
- 2.50-19
- Rear brakes
- Expanding brake (drum brake)
- Rear brakes diameter
- 99 mm
- Rear tyre
- 3.00-16
Colours and equipment
Colours and equipment
- Colours
- Red
- Warranty
- 6
Model years
2008
Fuel capacity: 5.7 L → 4.9 L
2013
Wet weight: 78.9 kg → 77.1 kg
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 99 cm³ | 99 cm³ | 99 cm³ | 99 cm³ | 99 cm³ | 99 cm³ |
| Power | — | — | — | 8 hp (6 kW) | 8 hp (6 kW) | 8 hp (6 kW) |
| Wet weight | 78.9 kg | 78.9 kg | 77.1 kg | 77.1 kg | 77.1 kg | 77.1 kg |
| Seat height | 785 mm | 785 mm | 785 mm | 785 mm | 785 mm | 785 mm |
| Fuel capacity | 4.9 L | 4.9 L | 4.9 L | 4.9 L | 4.9 L | 4.9 L |
Pros and cons
Advantages
Light wet weight
At 77.1 kg wet, the bike is easier to maneuver at low speeds and pick up after a fall.
Ground clearance
The 251 mm clearance helps keep the bike clear of ruts and other obstacles.
Electric starting
The electric starter avoids relying on a kick-start routine.
Things to consider
Drum brakes
Drum brakes at both ends provide less immediate stopping response than disc brakes.
Small fuel tank
The 4.90-liter tank limits how much fuel the bike can carry between refills.
Chain final drive
The chain needs periodic cleaning, lubrication, and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
785 mm
Approx. loaded height
755 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 4.9 L at 6 L/100 km
Lower consumption = longer range.
Estimated range
82 km
With 10% reserve
74 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2016 Honda CR F 100F have?
It has a 99.0 cm³, air-cooled, single-cylinder four-stroke engine producing 8 hp (6 kW).
How much does the Honda CR F 100F weigh?
Its wet weight is 77.1 kg, and its dry weight is 74.8 kg.
How tall is the seat on the 2016 Honda CR F 100F?
The seat height is 785 mm.
What brakes does the Honda CR F 100F use?
It has expanding drum brakes at both the front and rear.
