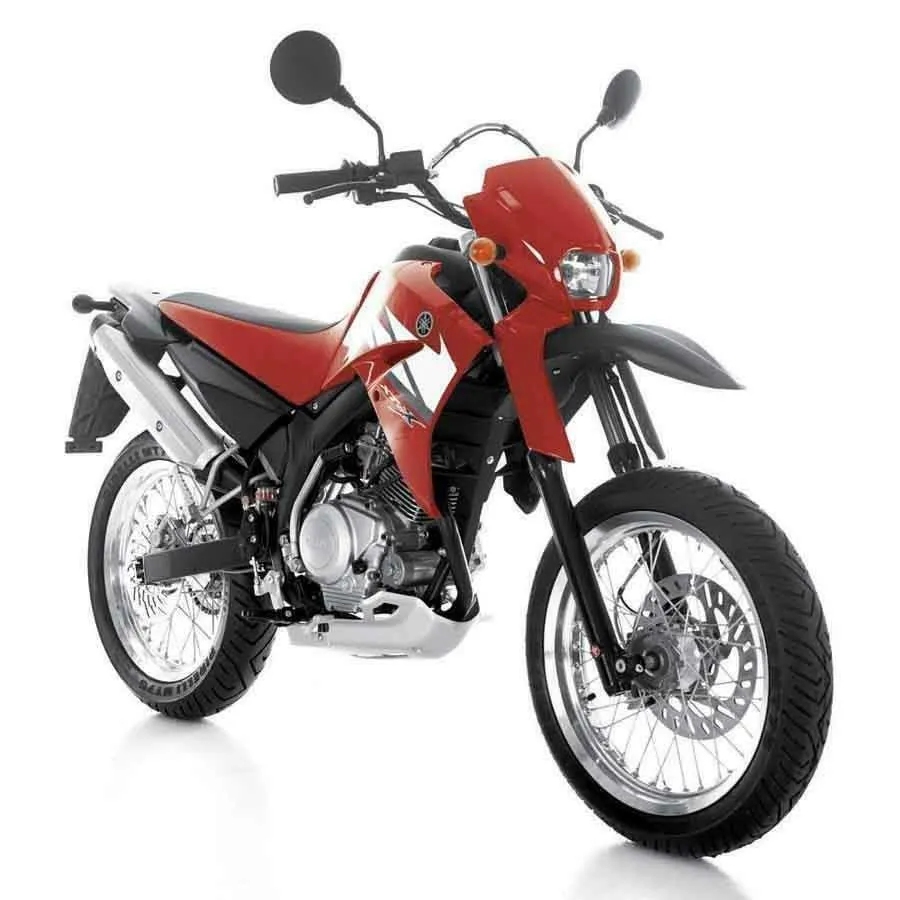

Yamaha XT 125X
- Production years
- 2006–2009
- Brand
- Yamaha
Choose model year
1 / 1
Selected year: 2009
Technical specifications
- Engine capacity
- 124 cm³
- Power
- 9.8 hp (7.3 kW)
- Wet weight
- 120 kg
- Seat height
- 860 mm
Overview
The Yamaha XT 125X is a supermoto produced from 2006 to 2009. The 2009 model has a 124 cm³, air-cooled, four-stroke single producing 9.8 hp (7.3 kW) and 10.1 Nm of torque; it weighs 120 kg wet and 106 kg dry.
At 860 mm, the seat is relatively tall and can make getting a foot down harder for shorter riders. The 120 kg wet weight keeps low-speed maneuvering manageable, while 190 mm of ground clearance and 175 mm front and 190 mm rear wheel travel help with rough pavement. Torque increased from 9.5 Nm in 2008 to 10.1 Nm in 2009, while the seat rose from 830 mm to 860 mm and the tank shrank from 10 liters to 9 liters, leaving less fuel aboard between fill-ups. The chain final drive needs periodic cleaning and adjustment.
Specifications
Engine
Engine
- Bore x stroke
- 54.0 x 54.0 mm
- Engine capacity
- 124 cm³
- Compression ratio
- 10.0:1
- Cooling system
- Air
- Engine type
- Single, four-stroke
- Fuel system
- Carburettor
- Ignition
- CDI
- Lubrication system
- Wet sump
- Oil capacity
- 1.2 L
- Starting
- Electric
Performance and transmission
Performance and transmission
- Power
- 9.8 hp (7.3 kW)
- Power weight ratio
- 0.0925 HP/kg (dry)
- Torque
- 10.1 Nm
- Clutch
- Wet, multiple disc
- Final drive
- Chain
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 106 kg
- Fuel capacity
- 9 L
- Ground clearance
- 190 mm
- Overall height
- 1,130 mm
- Overall length
- 2,050 mm
- Overall width
- 800 mm
- Seat height
- 860 mm
- Wet weight
- 120 kg
- Wheelbase
- 1,335 mm
Chassis and suspension
Chassis and suspension
- Front suspension
- Telescopic forks
- Front wheel travel
- 175 mm
- Rear suspension
- Swingarm
- Rear wheel travel
- 190 mm
- Trail
- 78 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Single disc
- Front brakes diameter
- 260 mm
- Front tyre
- 100/80-S17
- Rear brakes
- Single disc
- Rear brakes diameter
- 220 mm
- Rear tyre
- 130/70-S17
Model years
2009
Torque: 9.5 Nm → 10.1 Nm; Seat height: 830 mm → 860 mm; Fuel capacity: 10 L → 9 L
| Specification | ||||
|---|---|---|---|---|
| Engine capacity | 124 cm³ | 124 cm³ | 124 cm³ | 124 cm³ |
| Power | 9.8 hp (7.3 kW) | 9.8 hp (7.3 kW) | 9.8 hp (7.3 kW) | 9.8 hp (7.3 kW) |
| Torque | 9.5 Nm | 9.5 Nm | 9.5 Nm | 10.1 Nm |
| Dry weight | 106 kg | 120 kg | 120 kg | 120 kg |
| Seat height | 830 mm | 830 mm | 830 mm | 860 mm |
| Fuel capacity | 10 L | 10 L | 10 L | 9 L |
Pros and cons
Advantages
Manageable wet weight
At 120 kg wet, the XT 125X is relatively easy to maneuver at low speeds.
Room over bumps
Its 190 mm of ground clearance helps keep the underside clear over uneven surfaces.
Things to consider
Tall seat
The 860 mm seat height can make it difficult for shorter riders to plant both feet at a stop.
Smaller tank
The 9-liter tank holds 1 liter less than the 2008 model, leaving less fuel aboard between fill-ups.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Tiptoes likely; one-foot stops may feel easier
Plan to use a one-foot stop and test the motorcycle before buying.
Seat height
860 mm
Approx. loaded height
830 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 9 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
164 km
With 10% reserve
147 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much power does the 2009 Yamaha XT 125X make?
It produces 9.8 hp (7.3 kW) and 10.1 Nm of torque.
What is the seat height of the Yamaha XT 125X?
The 2009 model has an 860 mm seat height.
How much does the 2009 Yamaha XT 125X weigh?
It weighs 120 kg wet and 106 kg dry.
How large is the fuel tank on the 2009 Yamaha XT 125X?
The fuel tank holds 9 liters.
