Honda INTEGRA
- Production years
- 2012–2020
- Brand
- Honda
Choose model year
1 / 2

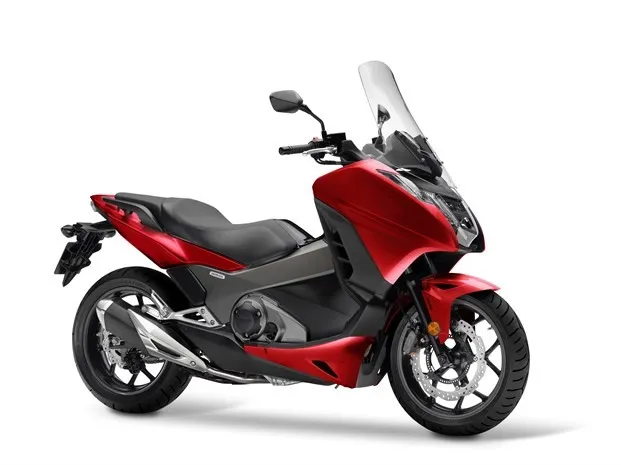

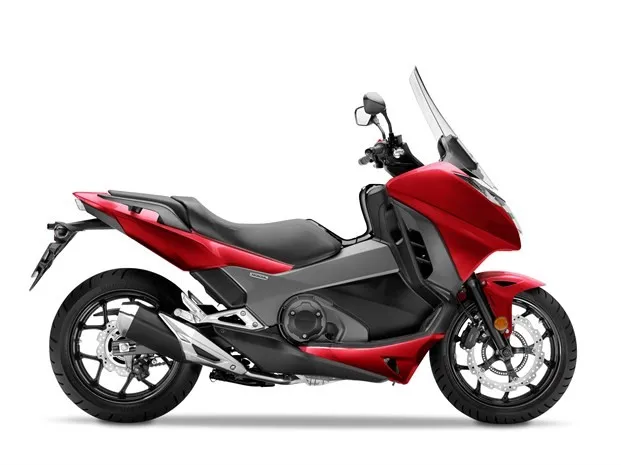

HONDA Integra (2018-Present)
Selected year: 2020
Technical specifications
- Engine capacity
- 745 cm³
- Power
- 54 hp (40 kW) at 6,250 rpm
- Wet weight
- 238 kg
- Seat height
- 790 mm
Overview
The Honda INTEGRA is a scooter produced from 2012 through 2020. The 2020 model has a 745 cm³ liquid-cooled parallel-twin four-stroke engine producing 54 hp (40 kW) and 68.0 Nm of torque at 4,750 rpm, with a wet weight of 238 kg.
Its 790 mm seat height and 238 kg wet weight are relevant when placing a foot down or maneuvering at low speed. Fuel consumption is 2.90 liters/100 km, with a calculated full-tank range of about 486 km from the 14.10-liter tank; the six-speed manual transmission requires rider-operated gear changes, and the chain final drive needs cleaning and adjustment.
Specifications
Engine
Engine
- Bore x stroke
- 77.0 x 80.0 mm
- Engine capacity
- 745 cm³
- Compression ratio
- 10.7:1
- Cooling system
- Liquid
- Engine type
- Parallel Twin, four-stroke
- Fuel system
- Injection
- Ignition
- Computer controlled digital transistorised with electronic advance
- Oil capacity
- 4.1 L
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 68 g/km CO₂
- Fuel consumption
- 2.9 L/100 km
- Power
- 54 hp (40 kW) at 6,250 rpm
- Power weight ratio
- 0.2269 HP/kg (wet)
- Torque
- 68 Nm at 4,750 rpm
- Clutch
- Wet multiplate hydraulic 2-clutch
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 14.1 L
- Ground clearance
- 135 mm
- Overall height
- 1,440 mm
- Overall length
- 2,215 mm
- Overall width
- 810 mm
- Seat height
- 790 mm
- Wet weight
- 238 kg
- Wheelbase
- 1,525 mm
Chassis and suspension
Chassis and suspension
- Frame
- Diamond; steel pipe
- Front suspension
- 41mm telescopic fork
- Front wheel travel
- 120 mm
- Rake
- 27.0°
- Rear suspension
- Monoshock damper, Pro-Link swingarm
- Rear wheel travel
- 120 mm
- Trail
- 110 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Single disc. Hydraulic. Two-piston calipers.
- Front brakes diameter
- 320 mm
- Front tyre
- 120/70-ZR17
- Rear brakes
- Single disc. Hydraulic. Single-piston caliper.
- Rear brakes diameter
- 240 mm
- Rear tyre
- 160/60-ZR17
Colours and equipment
Colours and equipment
- Colours
- Black Matte Gunpowder Metallic, Red Candy Chromosphere, Silver
Model years
2015
Engine capacity: 670 cm³ → 745 cm³; Power: 74 hp (55 kW) → 54 hp (40 kW); Torque: 62 Nm → 68.1 Nm
2016
Power: 54 hp (40 kW) → 55 hp (41 kW); Wet weight: 238 kg → 237 kg
2017
Power: 55 hp (41 kW) → 54 hp (40 kW); Torque: 68.1 Nm → 68 Nm; Wet weight: 237 kg → 238 kg
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 745 cm³ | 745 cm³ | 745 cm³ | 745 cm³ | 745 cm³ | 745 cm³ |
| Power | 54 hp (40 kW) | 55 hp (41 kW) | 54 hp (40 kW) | 54 hp (40 kW) | 54 hp (40 kW) | 54 hp (40 kW) |
| Torque | 68.1 Nm | 68.1 Nm | 68 Nm | 68 Nm | 68 Nm | 68 Nm |
| Wet weight | 238 kg | 237 kg | 238 kg | 238 kg | 238 kg | 238 kg |
| Seat height | 790 mm | 790 mm | 790 mm | 790 mm | 790 mm | 790 mm |
| Fuel capacity | 14.1 L | 14.1 L | 14.1 L | 14.1 L | 14.1 L | 14.1 L |
Pros and cons
Advantages
Strong low-rpm torque
Peak torque arrives at 4,750 rpm, giving the engine useful pulling force without needing to reach high revs.
Low fuel consumption
At 2.90 liters/100 km, the INTEGRA has a calculated range of about 486 km from a full tank.
Things to consider
Substantial weight
At 238 kg wet, it can take more effort to maneuver at walking pace or move while parked.
Chain maintenance
The chain final drive needs regular cleaning and adjustment.
Manual gear changes
The six-speed manual transmission means the rider must operate the gear changes.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
790 mm
Approx. loaded height
760 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 14.1 L at 2.9 L/100 km
Lower consumption = longer range.
Estimated range
486 km
With 10% reserve
438 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much power does the 2020 Honda INTEGRA make?
It produces 54 hp (40 kW) and 68.0 Nm of torque at 4,750 rpm.
What is the Honda INTEGRA's fuel consumption and range?
Fuel consumption is 2.90 liters/100 km, and the calculated range on a full 14.10-liter tank is about 486 km.
How much does the 2020 Honda INTEGRA weigh?
Its wet weight is 238 kg.
What changed in the Honda INTEGRA in 2015?
Compared with 2012, engine capacity increased from 670.0 cm³ to 745.0 cm³ and torque rose from 62.0 Nm to 68.1 Nm, both torque figures measured at 4,750 rpm.
