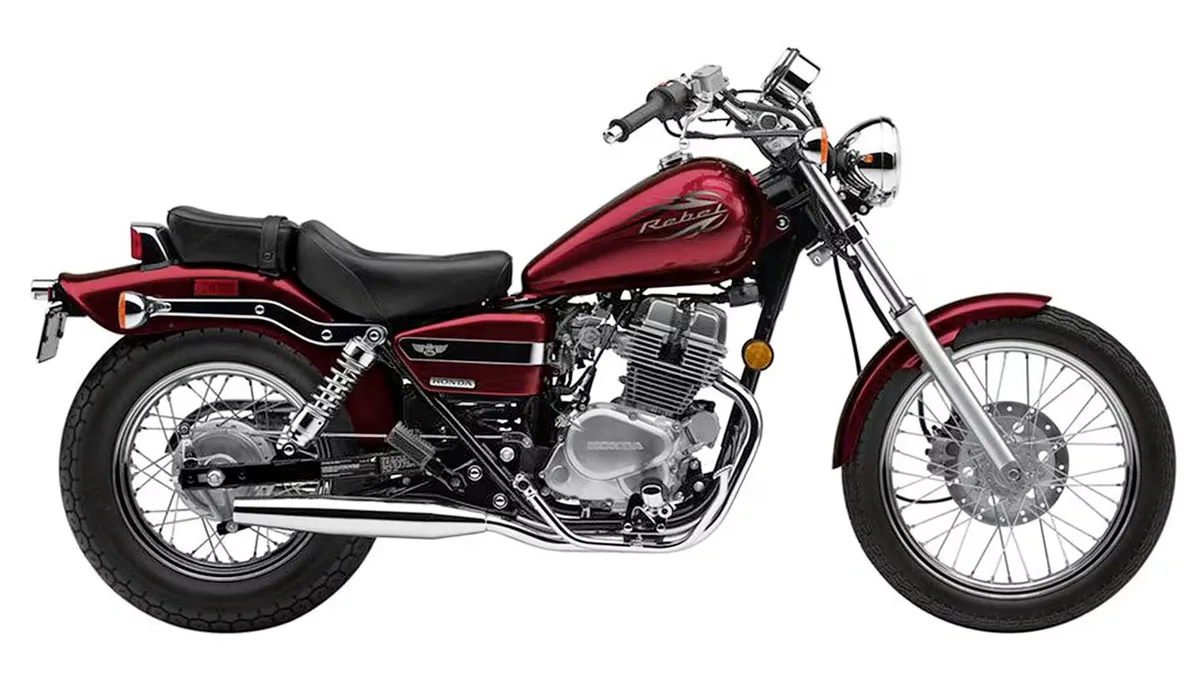

Honda Rebel 250 CX250C
- Production years
- 2009–2016
- Brand
- Honda
Choose model year
1 / 1
Selected year: 2016
Technical specifications
- Engine capacity
- 234 cm³
- Power
- 23 hp (17 kW)
- Wet weight
- 150.1 kg
- Seat height
- 676 mm
Overview
The Honda Rebel 250 CX250C is a cruiser from the Rebel family, produced from 2009 to 2016. The 2016 model uses a 234 cm³ parallel-twin four-stroke engine producing 23 hp (17 kW), and weighs 150.1 kg wet.
A 676 mm seat height gives the Rebel a low seating position, while its 150.1 kg wet weight helps keep it manageable at low speed. The 9.80 L tank is paired with an estimated range of about 350 km. Rear shocks offer five-position spring-preload adjustment, and the rear suspension has 74 mm of travel compared with 117 mm at the front.
Specifications
Engine
Engine
- Aspiration
- Naturally aspirated
- Bore x stroke
- 53.0 x 53.0 mm
- Engine capacity
- 234 cm³
- Compression ratio
- 9.2:1
- Cooling system
- Air
- Engine type
- Parallel Twin, four-stroke
- Fuel system
- Carburettor
- Ignition
- CDI
- Starting
- Electric
- Valves per cylinder
- 2
Performance and transmission
Performance and transmission
- Co2 emissions
- 50 g/km CO₂
- Epa co emissions
- 9.6 CO g/km
- Epa est fuel consumption
- 2.13 L/100 km
- Fuel consumption
- 2.8 L/100 km
- Power
- 23 hp (17 kW)
- Power weight ratio
- 0.1683 HP/kg (dry)
- Final drive
- Chain
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 139 kg
- Fuel capacity
- 9.8 L
- Fuel tank material
- Metal
- Seat height
- 676 mm
- Wet weight
- 150.1 kg
- Wheelbase
- 1,450 mm
Chassis and suspension
Chassis and suspension
- Front suspension
- 33mm fork
- Front wheel travel
- 117 mm
- Rake
- 30.4°
- Rear suspension
- Dual shocks with five-position spring-preload adjustability
- Rear wheel travel
- 74 mm
- Trail
- 113 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Double disc. Two-piston calipers.
- Front brakes diameter
- 234 mm
- Front tyre
- 3.00-18
- Rear brakes
- Expanding brake (drum brake)
- Rear brakes diameter
- 234 mm
- Rear tyre
- 130/90-15
Colours and equipment
Colours and equipment
- Colours
- Black, Candy Red
Model years
No recorded specification changes between model years.
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 234 cm³ | 234 cm³ | 234 cm³ | 234 cm³ | 234 cm³ | 234 cm³ |
| Power | 23 hp (17 kW) | 23 hp (17 kW) | 23 hp (17 kW) | 23 hp (17 kW) | 23 hp (17 kW) | 23 hp (17 kW) |
| Torque | 79 Nm | — | — | — | — | — |
| Wet weight | 150.1 kg | 150.1 kg | 150.1 kg | 150.1 kg | 150.1 kg | 150.1 kg |
| Seat height | 676 mm | 676 mm | 676 mm | 676 mm | 676 mm | 676 mm |
| Fuel capacity | 9.8 L | 9.8 L | 9.8 L | 9.8 L | 9.8 L | 9.8 L |
Pros and cons
Advantages
Low seat
The 676 mm seat height makes it easier to put a foot down at stops.
Manageable weight
At 150.1 kg wet, the Rebel is relatively easy to handle when maneuvering at low speed.
Adjustable rear preload
Five preload settings let riders adjust the rear suspension for different loads.
Things to consider
Limited rear suspension travel
The rear wheel has 74 mm of travel, leaving less room to absorb bumps than the front suspension.
Rear drum brake
The rear uses an expanding drum brake rather than a disc.
Chain final drive
The chain needs periodic cleaning and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
676 mm
Approx. loaded height
646 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 9.8 L at 2.8 L/100 km
Lower consumption = longer range.
Estimated range
350 km
With 10% reserve
315 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2016 Honda Rebel 250 have?
It has a 234 cm³ parallel-twin, four-stroke engine producing 23 hp (17 kW).
How tall is the 2016 Honda Rebel 250's seat?
The seat height is 676 mm.
How far can the 2016 Honda Rebel 250 travel on a full tank?
Its 9.80 L tank has an estimated full-tank range of about 350 km.
What brakes does the 2016 Honda Rebel 250 use?
It has two 234 mm front disc brakes with two-piston calipers and a 234 mm rear drum brake.
