Suzuki Intruder 125 LC
- Production years
- 2000–2009
- Brand
- Suzuki
Choose model year
1 / 4

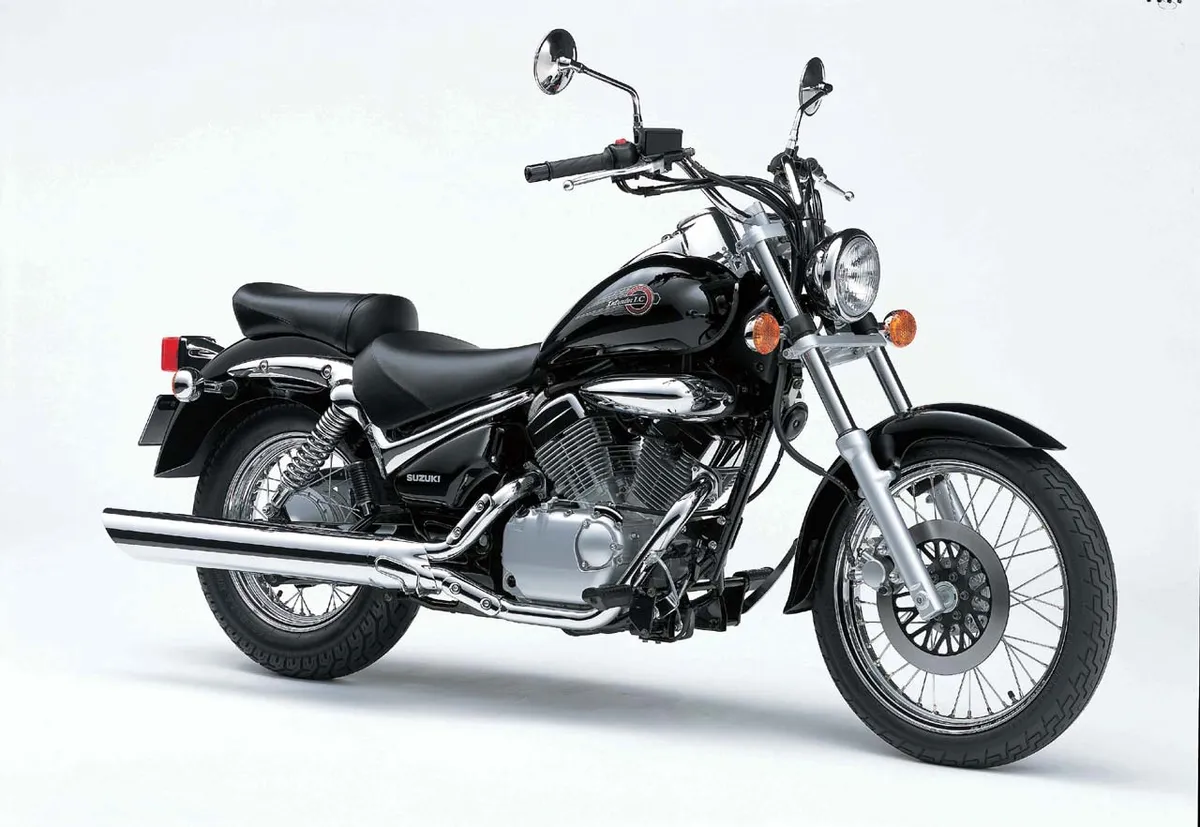

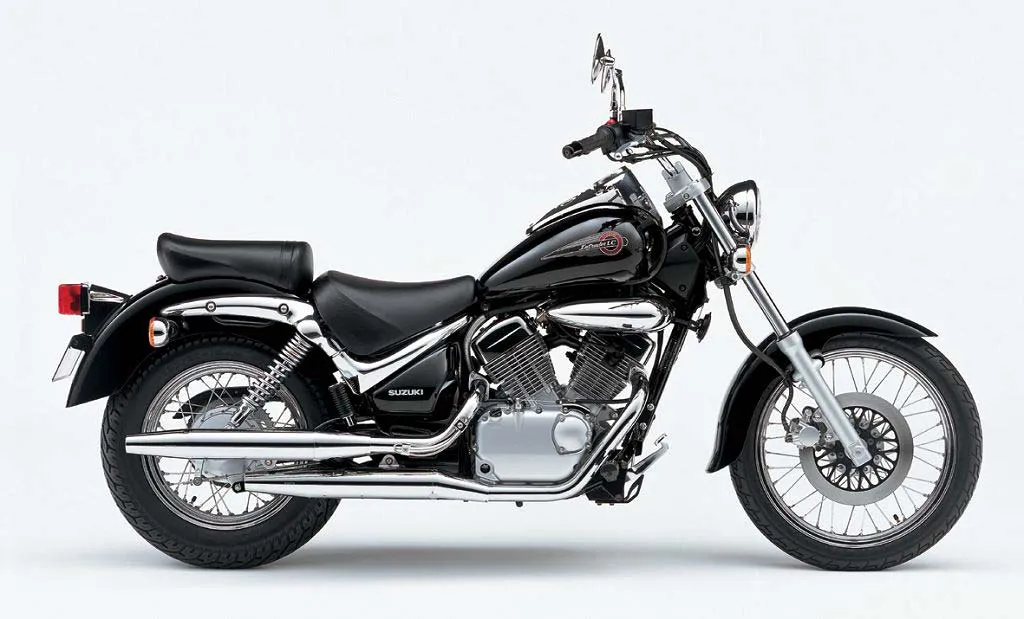

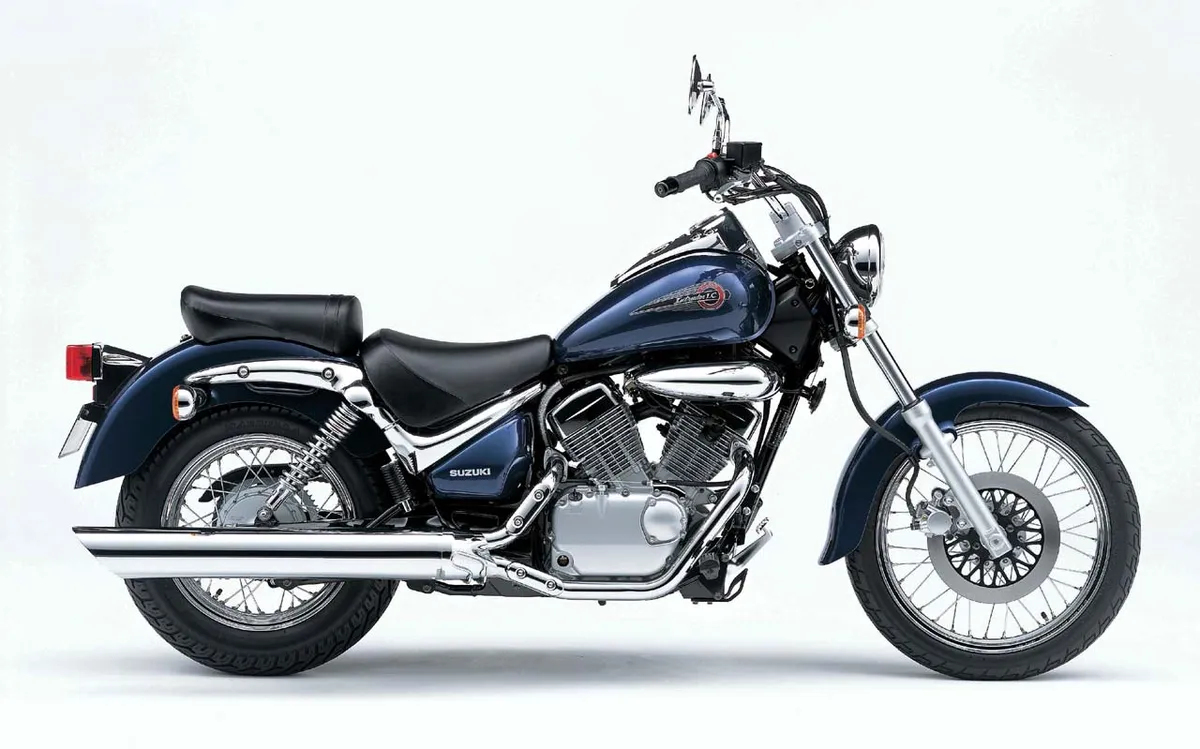

SUZUKI Intruder 125LC (2005-2006)
Selected year: 2009
Technical specifications
- Engine capacity
- 124 cm³
- Power
- 15 hp (11 kW)
- Dry weight
- 142 kg
- Seat height
- 685 mm
Overview
The Suzuki Intruder 125 LC is a cruiser from the Intruder 125 family, produced from 2000 to 2009. The 2009 model has an air-cooled, carbureted 124 cm³ V-Twin producing 15 hp (11 kW), with a dry weight of 142 kg. Electric starting takes care of getting the engine running, while a five-speed manual gearbox sends drive to the rear wheel through a chain.
The 685 mm seat makes it easier to plant your feet at stops, although the 142 kg dry weight increases once fuel is added. Its 1,520 mm wheelbase and 2,240 mm overall length mean tight parking maneuvers need some space. For 2009, peak power increased over the previous model year and the fuel tank grew from 12 L to 15 L, allowing more fuel between stops. The chain final drive requires regular cleaning, lubrication, and tension adjustment.
Specifications
Engine
Engine
- Bore x stroke
- 44.0 x 40.9 mm
- Engine capacity
- 124 cm³
- Compression ratio
- 10.3:1
- Cooling system
- Air
- Engine type
- V-Twin
- Fuel system
- Carburettor
- Ignition
- Electronic ignition (Transistorised)
- Lubrication system
- Wet sump
- Starting
- Electric
Performance and transmission
Performance and transmission
- Power
- 15 hp (11 kW)
- Power weight ratio
- 0.1056 HP/kg (dry)
- Final drive
- Chain
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 142 kg
- Fuel capacity
- 15 L
- Overall height
- 1,110 mm
- Overall length
- 2,240 mm
- Overall width
- 880 mm
- Seat height
- 685 mm
- Wheelbase
- 1,520 mm
Chassis and suspension
Chassis and suspension
- Front suspension
- Telescopic, coil spring, oil damped
- Rear suspension
- Swingarm type, coil spring, oil damped
Brakes and wheels
Brakes and wheels
- Front brakes
- Single disc
- Front tyre
- 90/90-M18
- Rear brakes
- Expanding brake (drum brake)
- Rear tyre
- 130/90-M15
Model years
2006
Engine capacity: 124.5 cm³ → 124 cm³; Power: 13 hp (10 kW) → 13 hp (10 kW)
2007
Engine capacity: 124 cm³ → 124.5 cm³; Power: 13 hp (10 kW) → 13 hp (10 kW)
2009
Engine capacity: 124.5 cm³ → 124 cm³; Power: 13 hp (10 kW) → 15 hp (11 kW); Fuel capacity: 12 L → 15 L
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 124.5 cm³ | 124.5 cm³ | 124 cm³ | 124.5 cm³ | 124.5 cm³ | 124 cm³ |
| Power | 13 hp (10 kW) | 13 hp (10 kW) | 13 hp (10 kW) | 13 hp (10 kW) | 13 hp (10 kW) | 15 hp (11 kW) |
| Torque | — | — | 9.8 Nm | — | — | — |
| Dry weight | 140 kg | 140 kg | 241 kg | 140 kg | 140 kg | 142 kg |
| Seat height | 685 mm | 685 mm | 685 mm | 685 mm | 685 mm | 685 mm |
| Fuel capacity | 12 L | 12 L | 12 L | 12 L | 12 L | 15 L |
Pros and cons
Advantages
Low seat
A 685 mm seat helps riders get their feet firmly on the ground when stopping or backing into a parking space.
Larger tank for 2009
The increase from 12 L to 15 L gives the 2009 model more fuel to use before the next fill-up.
Things to consider
Space needed for maneuvering
The 1,520 mm wheelbase and 2,240 mm length can make tight parking turns more cumbersome.
Chain upkeep
The final-drive chain adds regular cleaning, lubrication, and tension checks to the maintenance routine.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
685 mm
Approx. loaded height
655 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 15 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
273 km
With 10% reserve
245 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2009 Suzuki Intruder 125 LC have?
It has an air-cooled, carbureted 124 cm³ V-Twin producing 15 hp.
How high is the seat on the Suzuki Intruder 125 LC?
The seat is 685 mm high, making it easier to reach the ground at stops.
Does the Suzuki Intruder 125 LC have electric starting?
Yes, the 2009 Suzuki Intruder 125 LC has an electric starter.
What changed on the Suzuki Intruder 125 LC for 2009?
Engine capacity changed from 124.5 cm³ to 124 cm³, peak power increased to 15 hp, and fuel capacity grew from 12 L to 15 L.
