Yamaha C3
- Production years
- 2007–2013
- Brand
- Yamaha
Choose model year
1 / 4

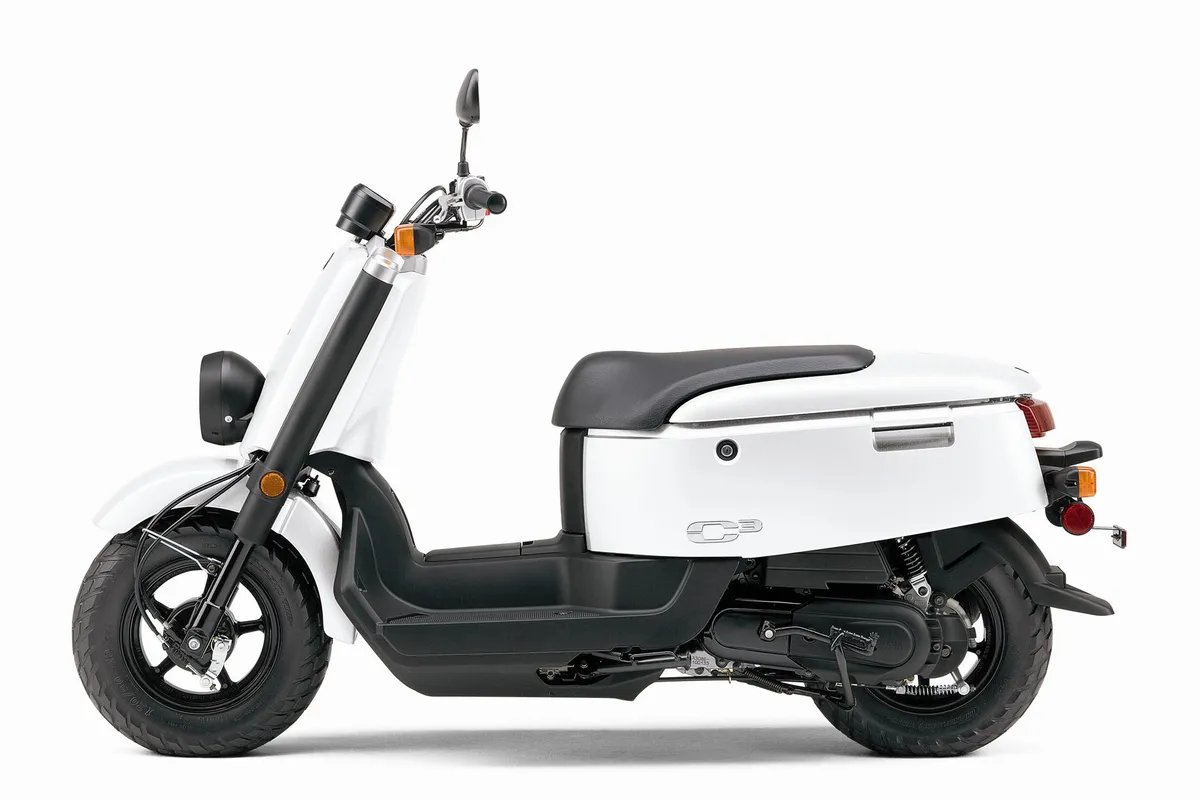

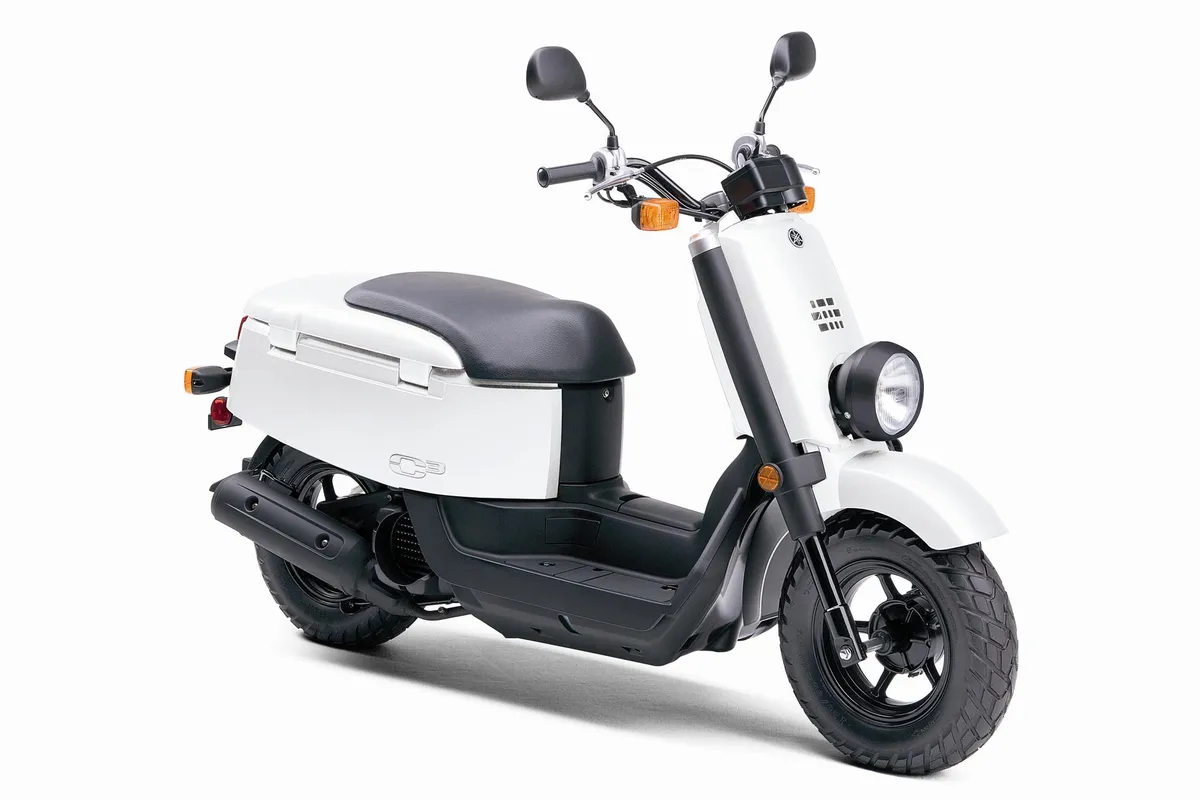

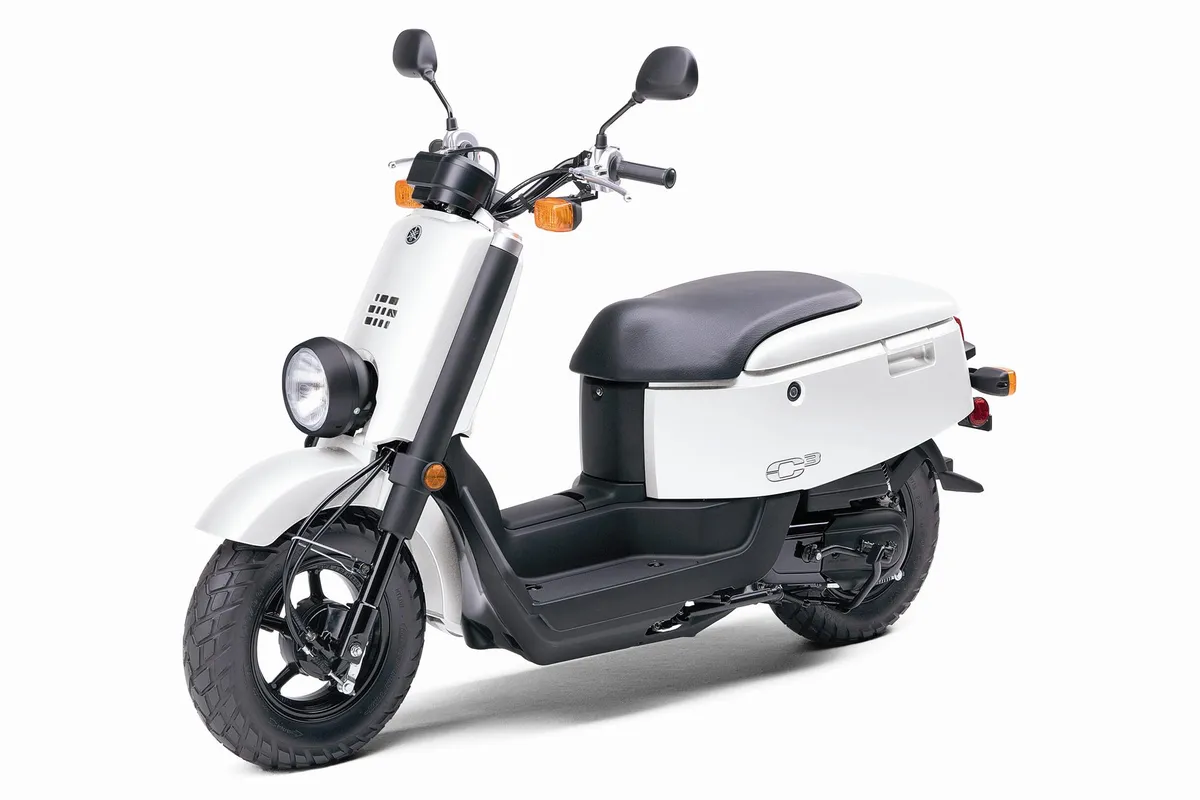

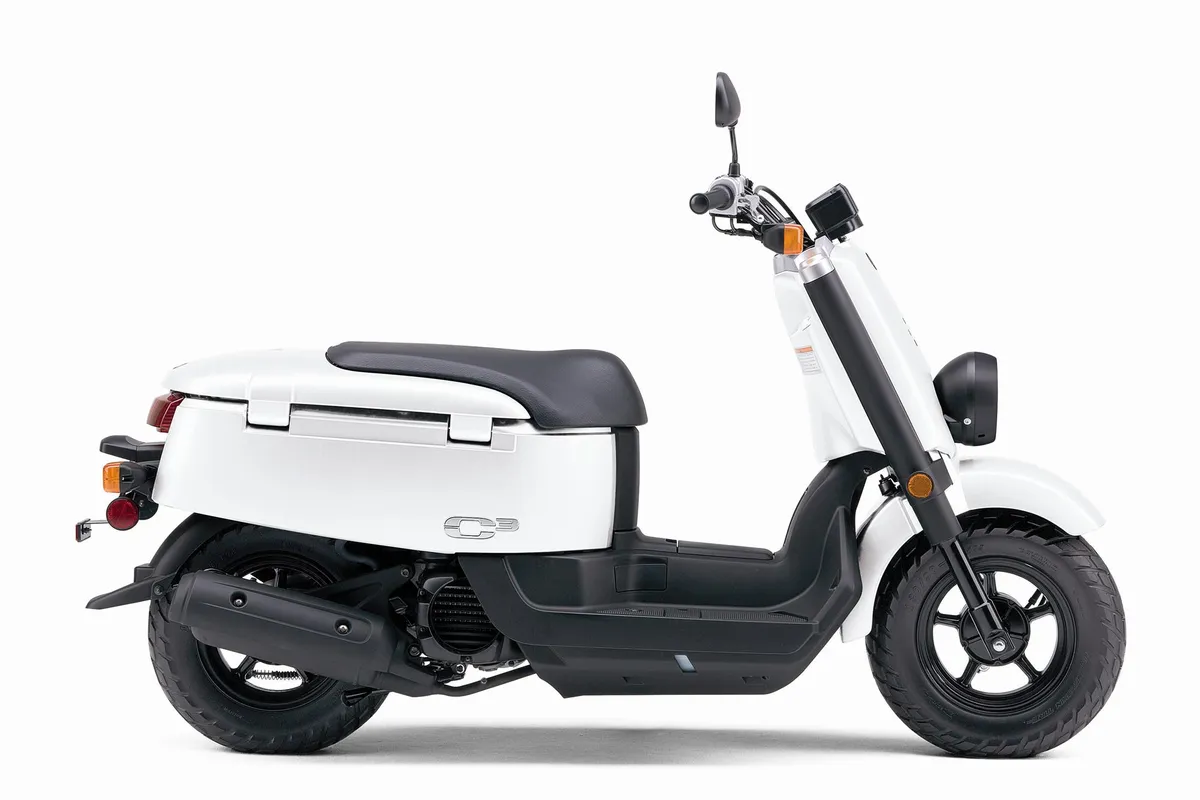

YAMAHA C3 (2007-Present)
Selected year: 2013
Technical specifications
- Engine capacity
- 49 cm³
- Power
- 5.4 hp (4 kW)
- Dry weight
- 89.8 kg
- Seat height
- 734 mm
Overview
The Yamaha C3 is a scooter produced from 2007 to 2013. The 2013 model uses a 49.0 cm³, single-cylinder, four-stroke engine rated at 5.4 hp (4 kW), with a dry weight of 89.8 kg.
Its 734 mm seat height and low 89.8 kg dry weight make it easier to manage at stops and at low speeds. The automatic transmission and centrifugal clutch handle gear changes for you, while fuel injection and a stated fuel consumption of 2.10 liters/100 km accompany an estimated 214 km range from the 4.50-liter tank. Both wheels use drum brakes, and 114 mm of ground clearance leaves limited room over high obstacles.
Specifications
Engine
Engine
- Bore x stroke
- 38.0 x 43.5 mm
- Engine capacity
- 49 cm³
- Compression ratio
- 12.0:1
- Cooling system
- Liquid
- Engine type
- Single, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Lubrication system
- Autolube Oil Injection System
- Starting
- Electric
- Valves per cylinder
- 3
Performance and transmission
Performance and transmission
- Co2 emissions
- 48 g/km CO₂
- Fuel consumption
- 2.1 L/100 km
- Power
- 5.4 hp (4 kW)
- Power weight ratio
- 0.0601 HP/kg (dry)
- Clutch
- Dry centrifugal automatic clutch
- Final drive
- Belt
- Transmission type
- Automatic
Dimensions and weight
Dimensions and weight
- Dry weight
- 89.8 kg
- Fuel capacity
- 4.5 L
- Ground clearance
- 114 mm
- Overall height
- 1,044 mm
- Overall length
- 1,854 mm
- Overall width
- 686 mm
- Seat height
- 734 mm
- Wheelbase
- 1,280 mm
Chassis and suspension
Chassis and suspension
- Front suspension
- Telescopic fork, 2.3-in travel
- Front wheel travel
- 58 mm
- Rear suspension
- Unit swing, 2.2-in travel
- Rear wheel travel
- 56 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Expanding brake (drum brake)
- Front brakes diameter
- 110 mm
- Front tyre
- 120/90-10
- Rear brakes
- Expanding brake (drum brake)
- Rear brakes diameter
- 110 mm
- Rear tyre
- 120/90-10
Colours and equipment
Colours and equipment
- Colours
- Pearl White
- Warranty
- 12
Model years
2008
Seat height: 737 mm → 734 mm
| Specification | |||||
|---|---|---|---|---|---|
| Engine capacity | 49 cm³ | 49 cm³ | 49 cm³ | 49 cm³ | 49 cm³ |
| Power | 5.4 hp (4 kW) | 5.4 hp (4 kW) | 5.4 hp (4 kW) | 5.4 hp (4 kW) | 5.4 hp (4 kW) |
| Dry weight | 84.8 kg | 84.8 kg | 89.8 kg | 89.8 kg | 89.8 kg |
| Seat height | 737 mm | 734 mm | 734 mm | 734 mm | 734 mm |
| Fuel capacity | 4.5 L | 4.5 L | 4.5 L | 4.5 L | 4.5 L |
Pros and cons
Advantages
Lightweight
At 89.8 kg dry, the C3 is easier to maneuver and balance at low speeds than a heavier scooter.
Automatic transmission
The automatic transmission and centrifugal clutch remove the need to operate a manual clutch or shift gears.
Low fuel consumption
Consumption of 2.10 liters/100 km pairs with an estimated 214 km range on a full tank.
Things to consider
Drum brakes at both ends
The front and rear use drum brakes, rather than disc brakes.
Limited ground clearance
The 114 mm ground clearance leaves little space for clearing high obstacles.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
734 mm
Approx. loaded height
704 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 4.5 L at 2.1 L/100 km
Lower consumption = longer range.
Estimated range
214 km
With 10% reserve
193 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine size of the 2013 Yamaha C3?
It has a 49.0 cm³, single-cylinder, four-stroke engine.
How much power does the 2013 Yamaha C3 make?
The engine is rated at 5.4 hp (4 kW).
What is the fuel consumption and estimated range?
Fuel consumption is 2.10 liters/100 km, with an estimated full-tank range of about 214 km.
Does the Yamaha C3 have an automatic transmission?
Yes, it has an automatic transmission with a dry centrifugal automatic clutch.
