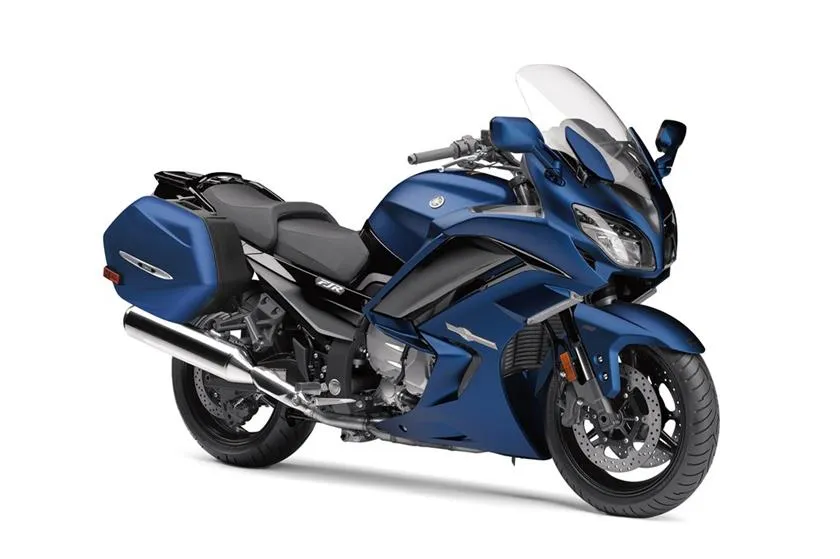

Yamaha FJR1300ES
- Production years
- 2018–2026
- Brand
- Yamaha
1 / 10

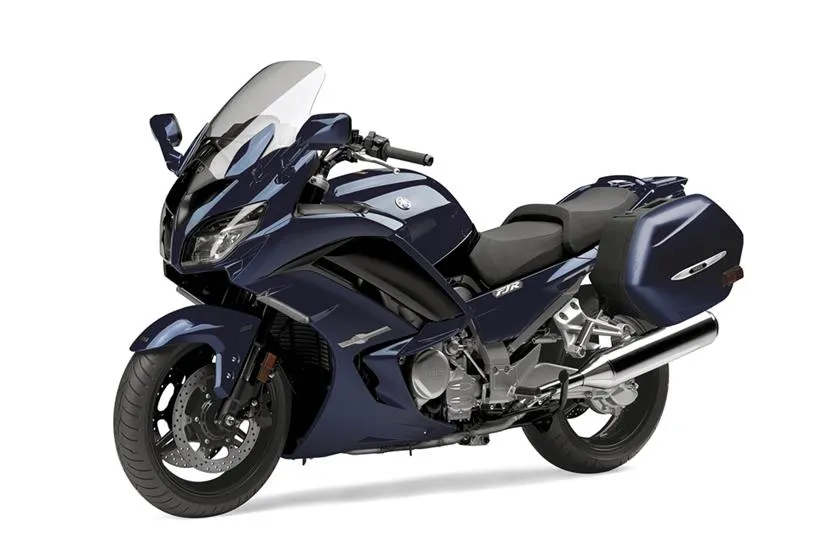

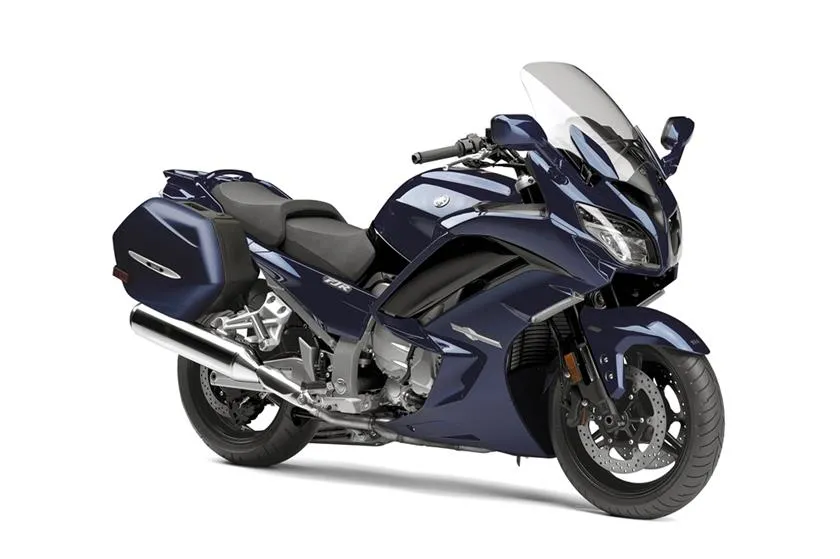

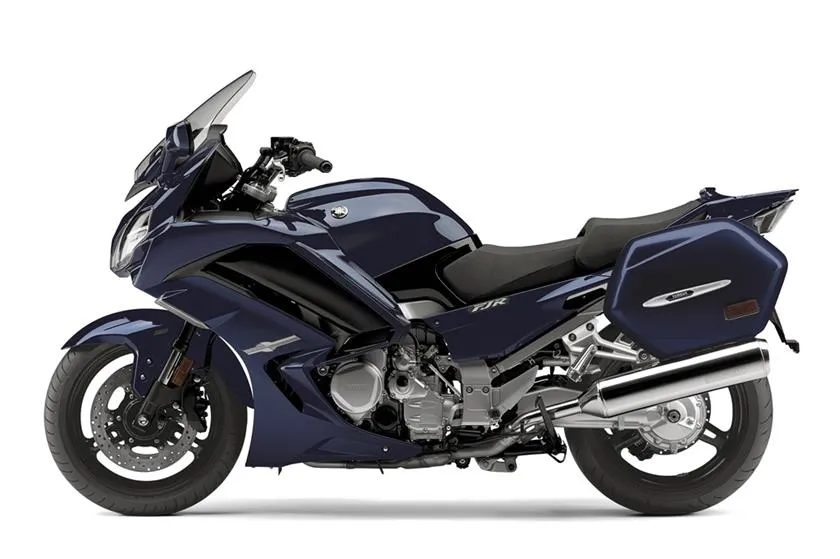

YAMAHA FJR1300ES (2016-2017)
Selected year: 2026
Technical specifications
- Engine capacity
- 1,298 cm³
- Power
- 143 hp (107 kW)
- Wet weight
- 291 kg
- Seat height
- 805 mm
Overview
The 2026 Yamaha FJR1300ES is a sport tourer powered by a liquid-cooled, 1,298 cm³ DOHC inline four-cylinder engine with 16 valves. It produces 143 hp (107 kW), and the motorcycle weighs 291 kg.
Electronic adjustment lets the rider change front rebound and compression damping, while the rear suspension also offers electronic preload adjustment. Shaft drive eliminates chain cleaning and adjustment, and ABS with linked braking helps manage braking input; the 124 mm ground clearance can limit room over tall obstacles and steep transitions.
Specifications
Engine
Engine
- Engine capacity
- 1,298 cm³
- Compression ratio
- 10.8:1
- Stroke
- 66 mm
Performance and transmission
Performance and transmission
- Power
- 143 hp (107 kW)
- Final drive
- Shaft
- Gearbox
- Manual 6-speed
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 25 L
- Ground clearance
- 124 mm
- Overall length
- 2,230 mm
- Overall width
- 749 mm
- Seat height
- 805 mm
- Wet weight
- 291 kg
- Wheelbase
- 1,544 mm
Chassis and suspension
Chassis and suspension
- Frame
- Aluminium
Brakes and wheels
Brakes and wheels
- Front brakes
- 320 mm
- Front tyre
- 120/70ZR17
- Rear tyre
- 180/55ZR17
Pros and cons
Advantages
Electronically adjustable suspension
Electronic adjustment of damping at both ends, plus rear preload adjustment, lets the rider tailor suspension settings.
Shaft drive
The shaft drive avoids routine chain cleaning and adjustment.
ABS and linked braking
ABS and linked braking provide braking assistance across the two wheels.
Things to consider
Heavy at low speeds
At 291 kg, the FJR1300ES can take more effort to balance and maneuver at walking pace.
Limited ground clearance
The 124 mm clearance leaves less room over tall obstacles and steep transitions.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
805 mm
Approx. loaded height
775 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 25 L at 7 L/100 km
Lower consumption = longer range.
Estimated range
357 km
With 10% reserve
321 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much horsepower does the 2026 Yamaha FJR1300ES have?
It produces 143 hp (107 kW).
What is the engine size of the Yamaha FJR1300ES?
Its liquid-cooled DOHC inline four-cylinder engine has a displacement of 1,298 cm³.
Does the Yamaha FJR1300ES have shaft drive?
Yes, it uses shaft drive.
Does the 2026 Yamaha FJR1300ES have electronically adjustable suspension?
Yes, the front damping and rear damping and spring preload are electronically adjustable.
