Yamaha FJ R1300A
- Production years
- 2018–2020
- Brand
- Yamaha
Choose model year
1 / 2

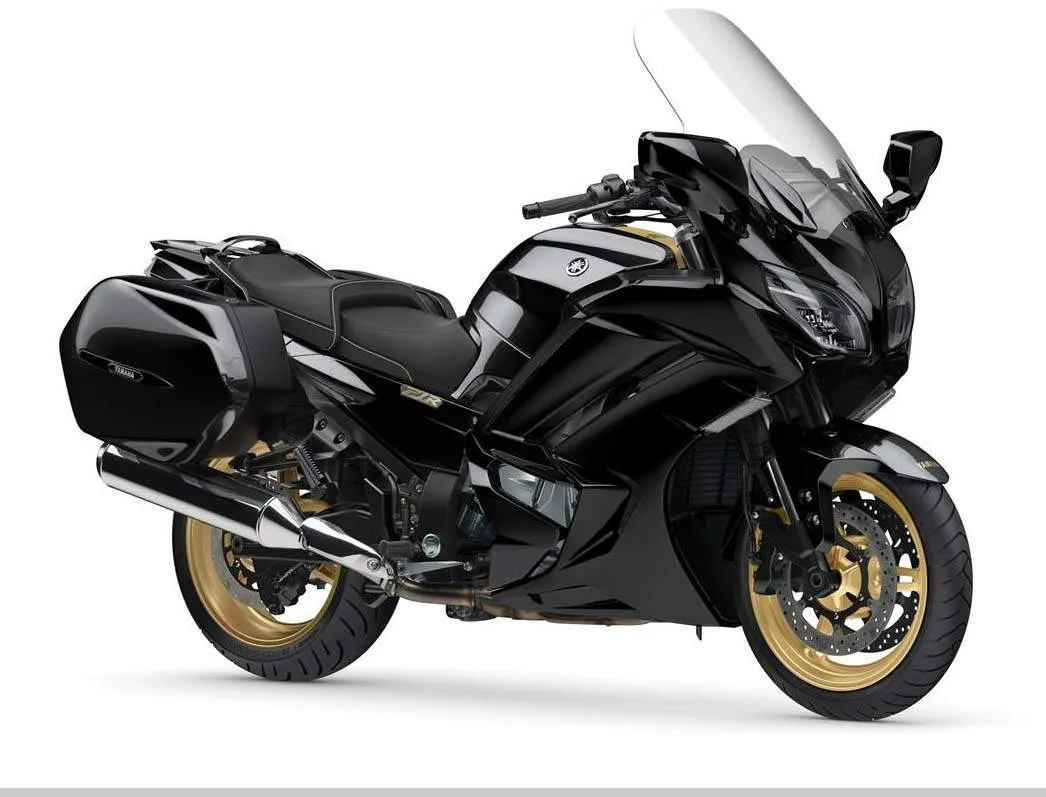

Yamaha FJR1300A 2020
Selected year: 2020
Technical specifications
- Engine capacity
- 1,298 cm³
- Power
- 146 hp (109 kW) at 8,000 rpm
- Wet weight
- 288 kg
- Seat height
- 805 mm
Overview
The Yamaha FJ R1300A is a Sport Tourer from the FJ family, produced from 2018 to 2020. The 2020 model has a 1298 cm³ liquid-cooled inline-four making 146 hp (109 kW) and 138 Nm at 7,000 rpm, with a wet weight of 288 kg.
At 805 mm, the seat height is a key fit measurement, while the 288 kg wet weight can make low-speed maneuvering more demanding. Its 25-liter tank and 6.50 L/100 km fuel consumption give a calculated range of about 385 km per tank. Shaft drive eliminates chain cleaning and adjustment, the assist-and-slipper clutch helps calm the rear wheel on hard downshifts, and ABS works with unified braking. Saddle bags provide built-in carrying capacity.
Specifications
Engine
Engine
- Bore x stroke
- 79.0 x 66.2 mm
- Engine capacity
- 1,298 cm³
- Compression ratio
- 10.8:1
- Cooling system
- Liquid
- Engine type
- In-line four, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Lubrication system
- Wet sump
- Oil capacity
- 4.9 L
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 152 g/km CO₂
- Fuel consumption
- 6.5 L/100 km
- Power
- 146 hp (109 kW) at 8,000 rpm
- Power weight ratio
- 0.5519 HP/kg (dry)
- Torque
- 138 Nm at 7,000 rpm
- Clutch
- Multiplate assist-and-slipper wet clutch
- Final drive
- Shaft
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Carrying capacity
- Saddle bags
- Dry weight
- 264.9 kg
- Fuel capacity
- 25 L
- Ground clearance
- 130 mm
- Overall height
- 1,455 mm
- Overall length
- 2,230 mm
- Overall width
- 749 mm
- Seat height
- 805 mm
- Wet weight
- 288 kg
- Wheelbase
- 1,544 mm
Chassis and suspension
Chassis and suspension
- Frame
- Aluminium, Diamond Shaped
- Front suspension
- 48mm fork, fully adjustable
- Front wheel travel
- 135 mm
- Rake
- 26.0°
- Rear suspension
- Single shock, adjustable preload and rebound damping, 4.9-in travel
- Rear wheel travel
- 124 mm
- Trail
- 109 mm
Brakes and wheels
Brakes and wheels
- Abs
- Yes
- Front brakes
- Double disc. Unified Brake System and ABS
- Front brakes diameter
- 320 mm
- Front tyre
- 120/70-ZR17
- Rear brakes
- Single disc. Unified Brake System and ABS
- Rear brakes diameter
- 282 mm
- Rear tyre
- 180/55-ZR17
Colours and equipment
Colours and equipment
- Colours
- Liquid Graphite
- Warranty
- 12
Model years
2020
Wet weight: 288.9 kg → 288 kg
| Specification | |||
|---|---|---|---|
| Engine capacity | 1,298 cm³ | 1,298 cm³ | 1,298 cm³ |
| Power | 146 hp (109 kW) | 146 hp (109 kW) | 146 hp (109 kW) |
| Torque | 138 Nm | 138 Nm | 138 Nm |
| Wet weight | 288.9 kg | 288.9 kg | 288 kg |
| Seat height | 805 mm | 805 mm | 805 mm |
| Fuel capacity | 25 L | 25 L | 25 L |
Pros and cons
Advantages
Shaft final drive
The shaft drive avoids the routine chain cleaning and adjustment required by chain final drives.
Touring storage and range
Saddle bags and an estimated 385 km from the 25-liter tank support longer rides between fuel stops.
Adjustable suspension
The fully adjustable front fork and rear preload and rebound settings let riders tune the suspension to their needs.
Things to consider
Substantial weight
At 288 kg wet, the bike can take more effort to maneuver at walking speed or move while parked.
Fuel use
Consumption of 6.50 L/100 km means fuel stops come sooner than they would on a more fuel-efficient ride.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
805 mm
Approx. loaded height
775 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 25 L at 6.5 L/100 km
Lower consumption = longer range.
Estimated range
385 km
With 10% reserve
346 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much power does the 2020 Yamaha FJ R1300A make?
It produces 146 hp (109 kW) and 138 Nm of torque at 7,000 rpm.
What is the fuel tank capacity and range?
The tank holds 25 liters, with a calculated range of about 385 km.
Does the Yamaha FJ R1300A have ABS?
Yes, ABS is fitted with the unified braking system on both the front and rear brakes.
What type of final drive does it use?
It uses shaft drive, paired with a six-speed manual gearbox.
