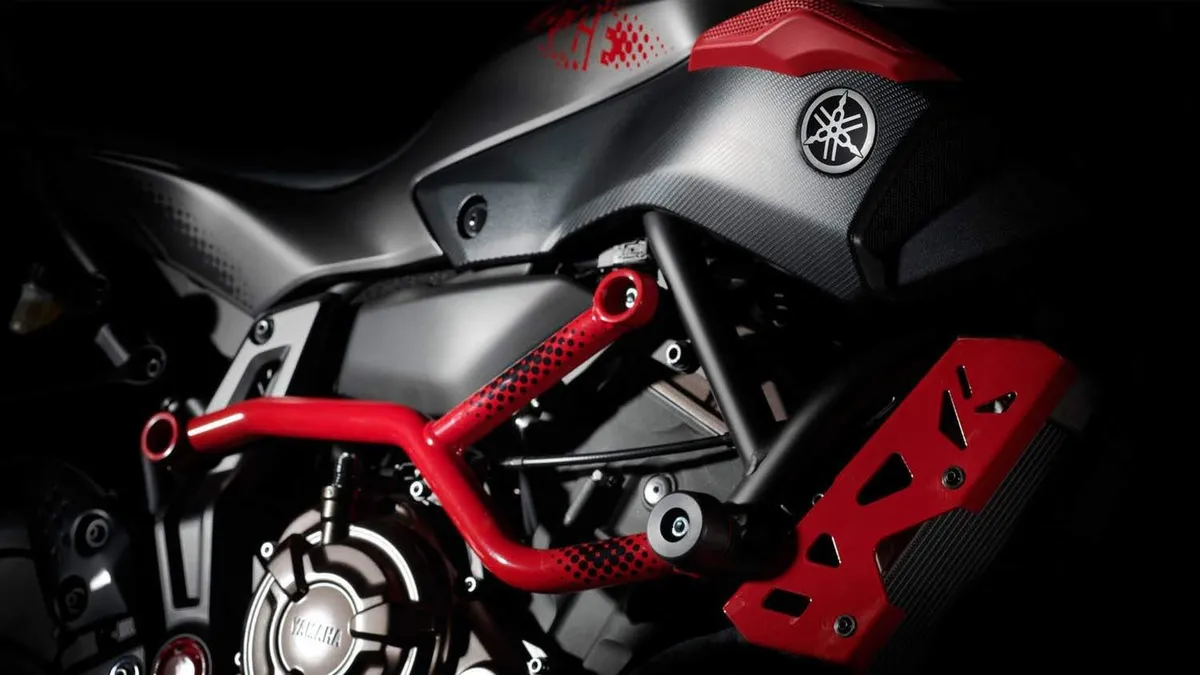

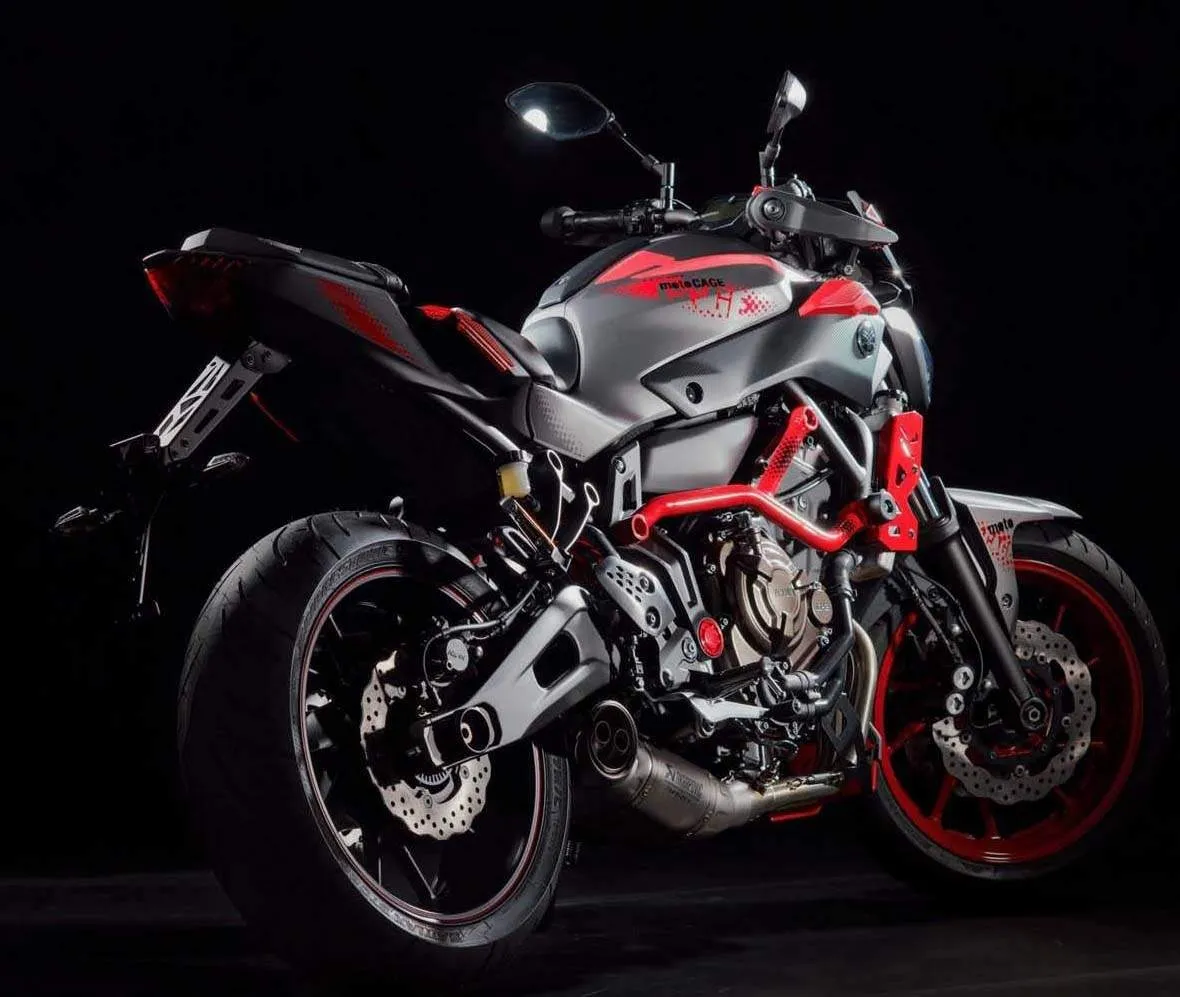

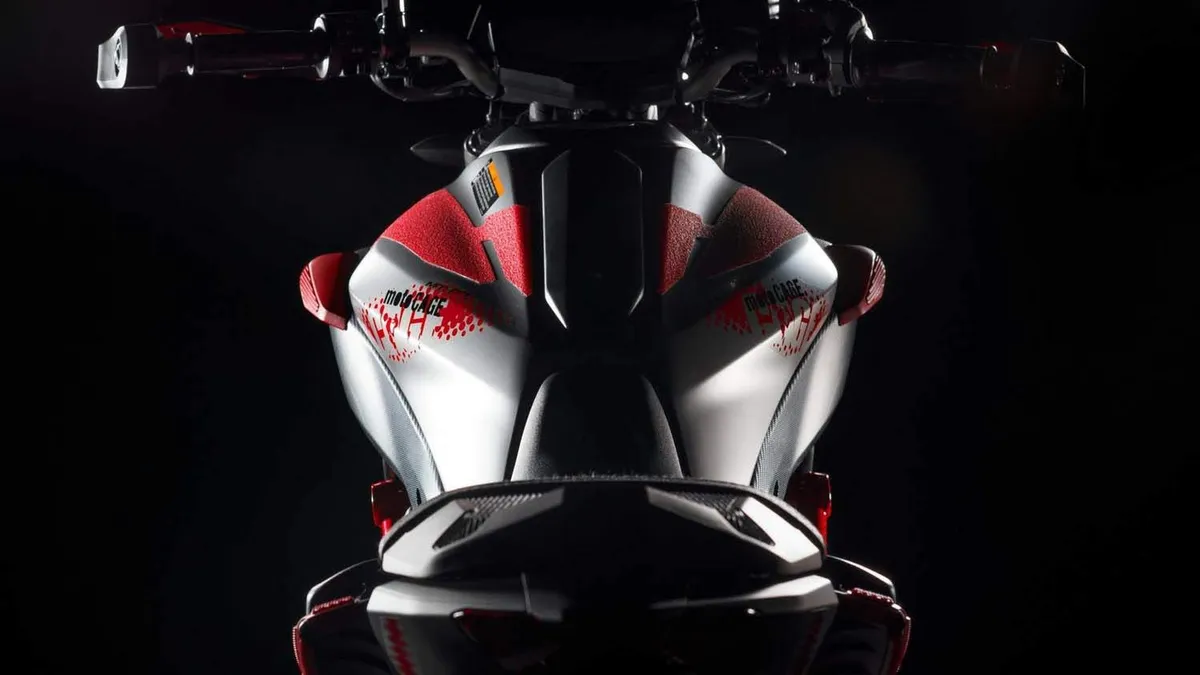

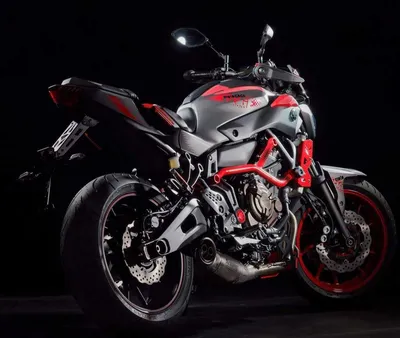

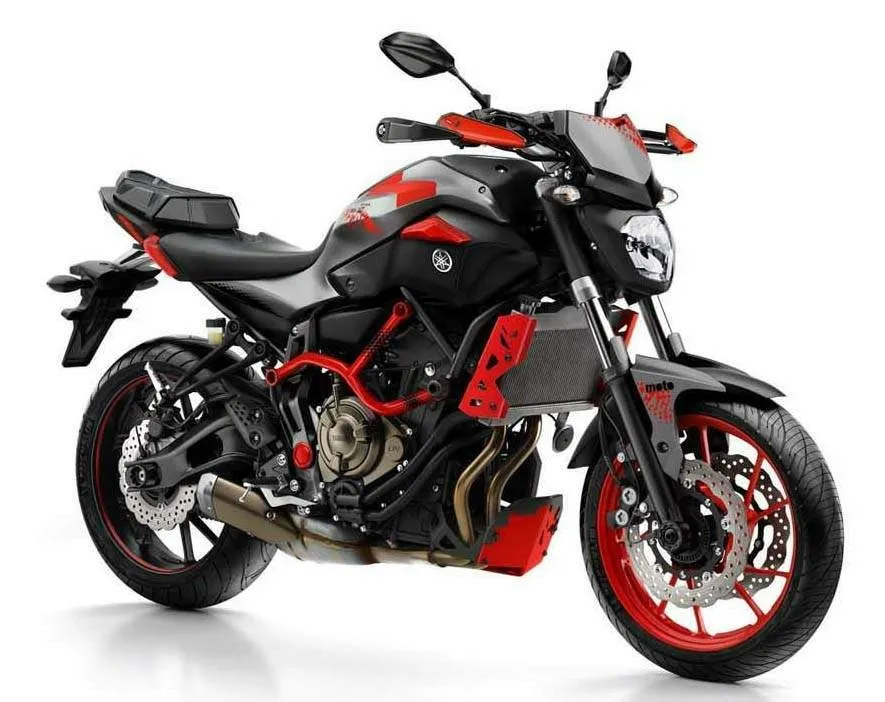

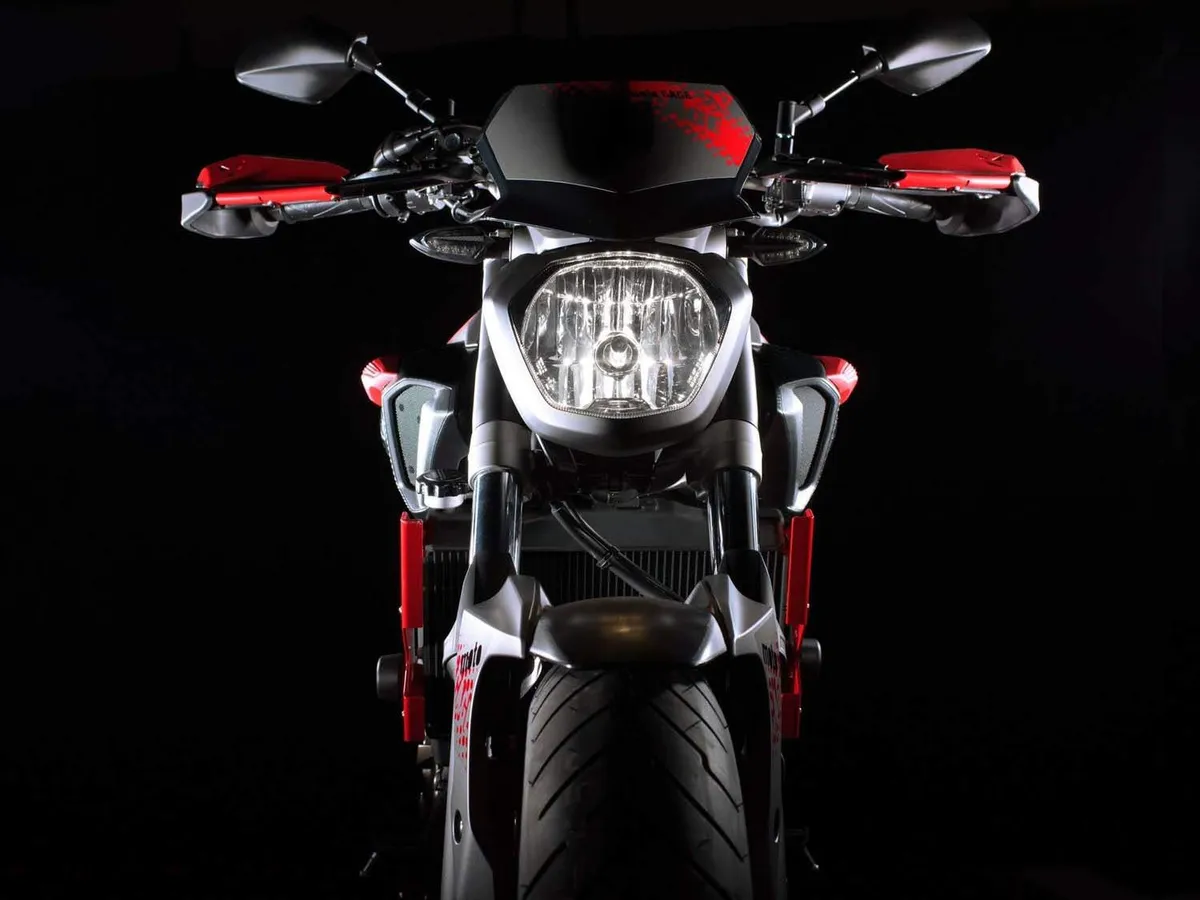

Yamaha MT 07 Moto Cage

Production years: 2015–2017
Brand: Yamaha

Choose model year

1 / 5

Selected year: 2017

Technical specifications

Engine capacity: 689 cm³
Power: 74 hp (55 kW) at 9,000 rpm
Wet weight: 179 kg
Seat height: 805 mm

View full specifications Compare motorcycles

Overview

The Yamaha MT 07 Moto Cage is a naked motorcycle from the MT family, produced from 2015 to 2017. The 2017 model has a 689 cm³ liquid-cooled parallel-twin four-stroke engine producing 74 hp (55 kW) and 68 Nm of torque at 6,900 rpm; its wet weight is 179 kg.

The 3.9-second 0–100 km/h time points to brisk acceleration. Fuel consumption is 4.3 liters/100 km, and the 14-liter tank gives a calculated range of about 326 km. The 805 mm seat height may make it harder for shorter riders to put both feet down, while the 179 kg wet weight is relevant when maneuvering at low speed; ABS is fitted to both front and rear brakes.

Specifications

Engine

Bore x stroke: 80.0 x 68.6 mm
Engine capacity: 689 cm³
Compression ratio: 11.5:1
Cooling system: Liquid
Engine type: Parallel Twin, four-stroke
Fuel system: Injection
Ignition: TCI
Lubrication system: Wet sump
Oil capacity: 3 L
Starting: Electric
Valves per cylinder: 4

Performance and transmission

0 100 km h 0 62 mph: 3.90 seconds
0 60 mph: 3.60 seconds
Co2 emissions: 100 g/km CO₂
Fuel consumption: 4.3 L/100 km
Power: 74 hp (55 kW) at 9,000 rpm
Power weight ratio: 0.4500 HP/kg (dry)
Torque: 68 Nm at 6,900 rpm
Clutch: Wet, Multiple Disc
Final drive: Chain
Gearbox: Manual 6-speed
Transmission type: Manual

Dimensions and weight

Dry weight: 164 kg
Fuel capacity: 14 L
Ground clearance: 140 mm
Overall height: 1,090 mm
Overall length: 2,085 mm
Overall width: 745 mm
Seat height: 805 mm
Wet weight: 179 kg
Wheelbase: 1,400 mm

Chassis and suspension

Frame: Diamond
Front suspension: Telescopic forks
Front wheel travel: 137 mm
Rake: 24.0°
Rear suspension: Swingarm, (Link type suspension)
Rear wheel travel: 130 mm
Trail: 90 mm

Brakes and wheels

Abs: Yes
Front brakes: Double disc. Hydraulic. ABS.
Front brakes diameter: 282 mm
Front tyre: 120/70-ZR17
Rear brakes: Single disc. Hydraulic. ABS.
Rear brakes diameter: 245 mm
Rear tyre: 180/55-ZR17

Colours and equipment

Colours: Night Fluo

Model years

No recorded specification changes between model years.

Specification
Engine capacity	689 cm³	689 cm³	689 cm³
Power	74 hp (55 kW)	74 hp (55 kW)	74 hp (55 kW)
Torque	68 Nm	68 Nm	68 Nm
Wet weight	179 kg	179 kg	179 kg
Seat height	805 mm	805 mm	805 mm
Fuel capacity	14 L	14 L	14 L

Pros and cons

Advantages

Brisk acceleration
Its 0–100 km/h time of 3.9 seconds gives it quick straight-line acceleration.
Useful tank range
Fuel consumption of 4.3 liters/100 km and a 14-liter tank give a calculated range of about 326 km.
ABS at both ends
ABS on the front and rear brakes can help prevent wheel lock during hard braking.

Things to consider

Tall seat for shorter riders
The 805 mm seat height may make it difficult for shorter riders to put both feet down.
Chain maintenance
The chain final drive needs periodic cleaning, lubrication, and adjustment.

Rider fit

Rider fit calculator

Calculated in your browser

Seat height: 805 mmInseam 78.9 cm

Seat height: 805 mm

Your height

Inside leg lengthOptional

Don't know it? Leave this empty and we'll estimate it from your height.

Estimated from your height: 79 cm

How to measure

Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.

Estimated ground reach

Both feet likely flat

You should have a stable stance at a stop, although seat width and suspension setup still matter.

Seat height

805 mm

Approx. loaded height

775 mm

Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
