Yamaha MT 09 SP
- Production years
- 2018–2026
- Brand
- Yamaha
Choose model year
1 / 10

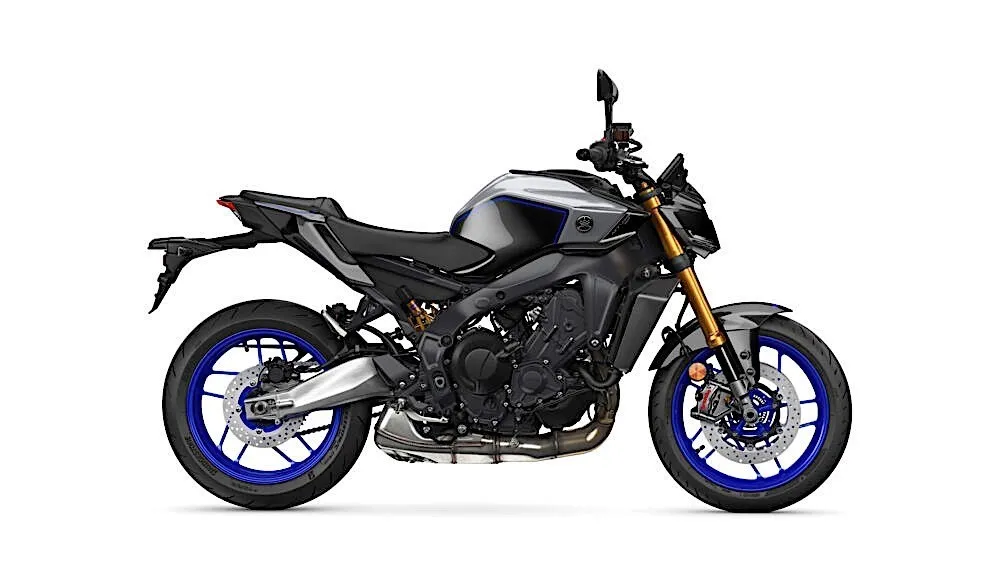

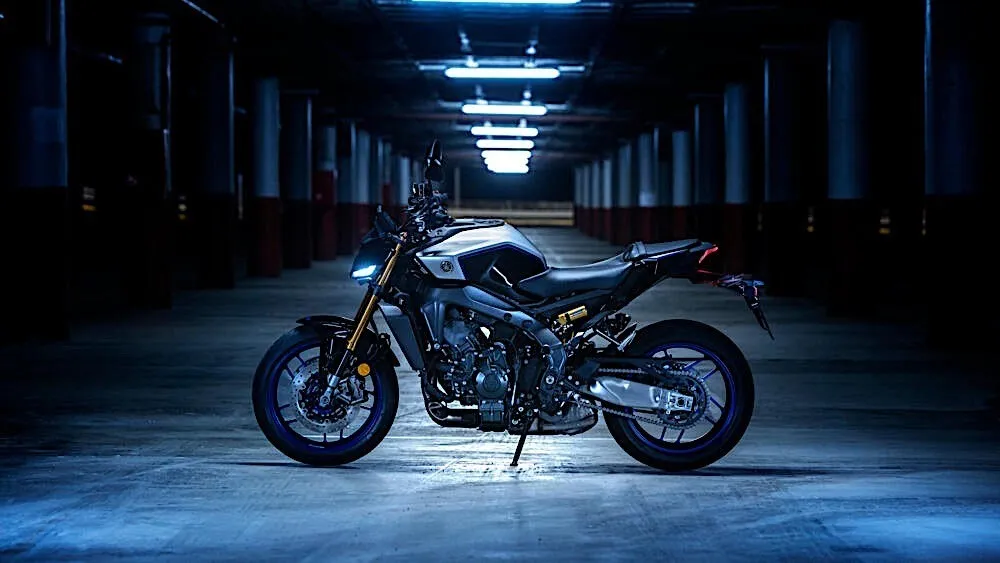

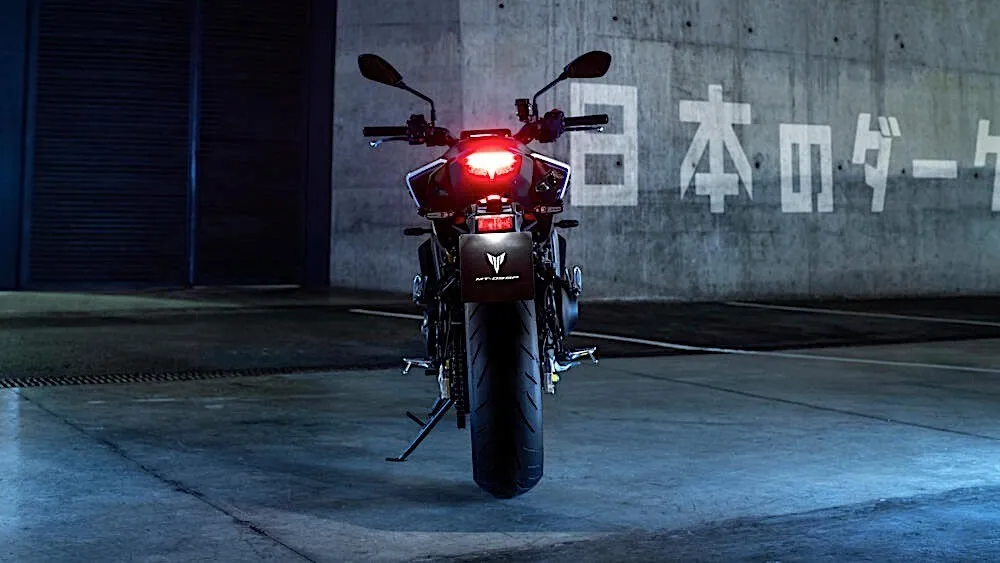

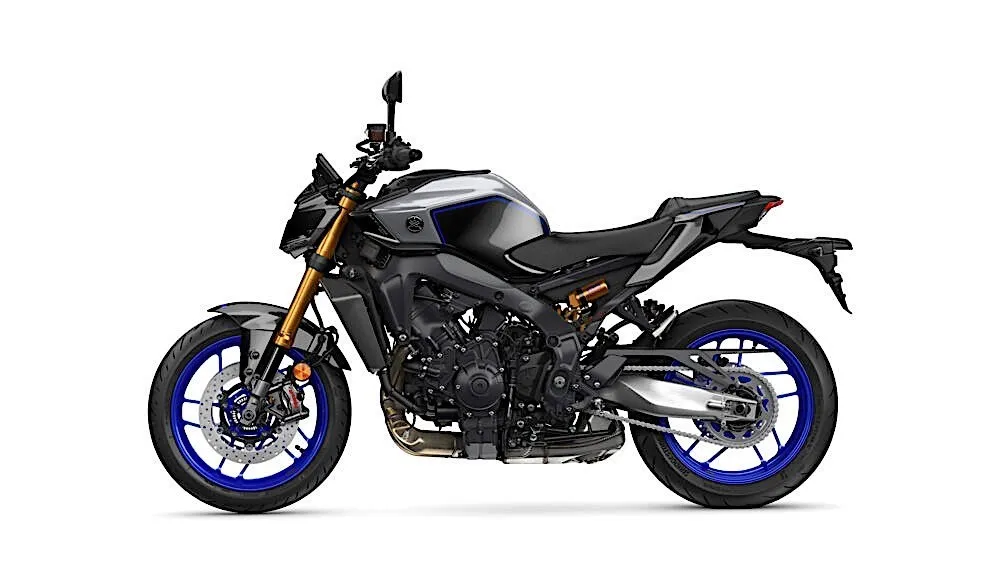

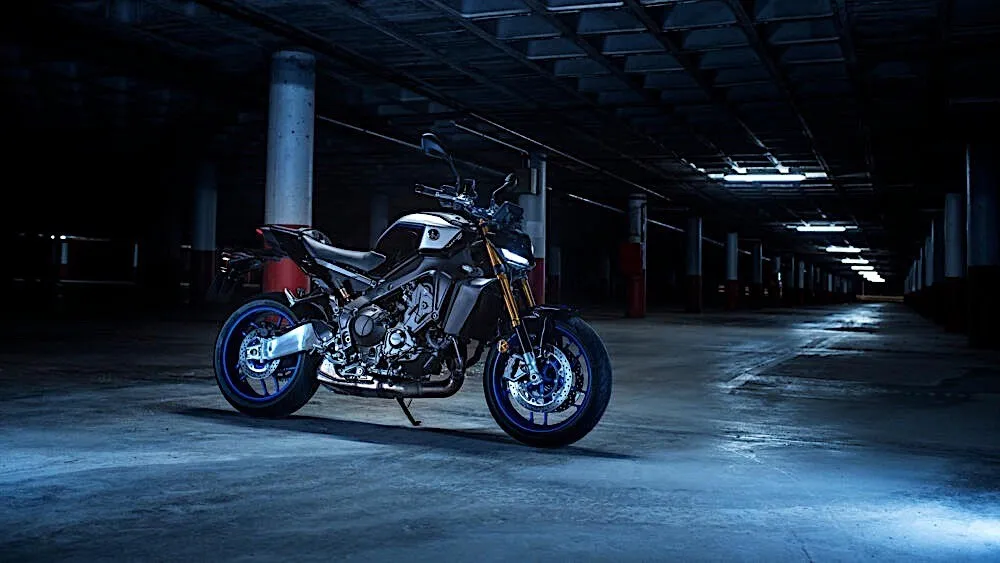

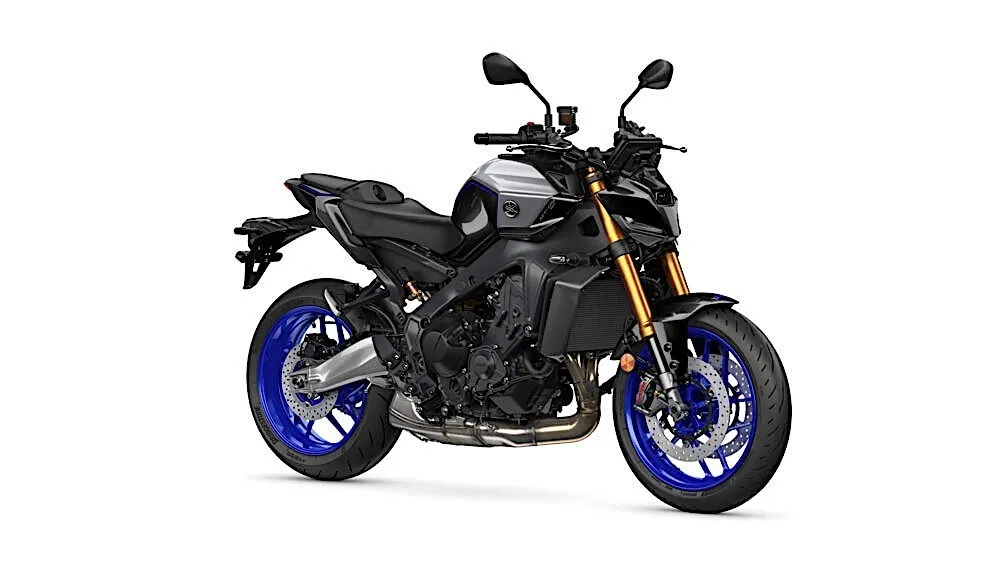

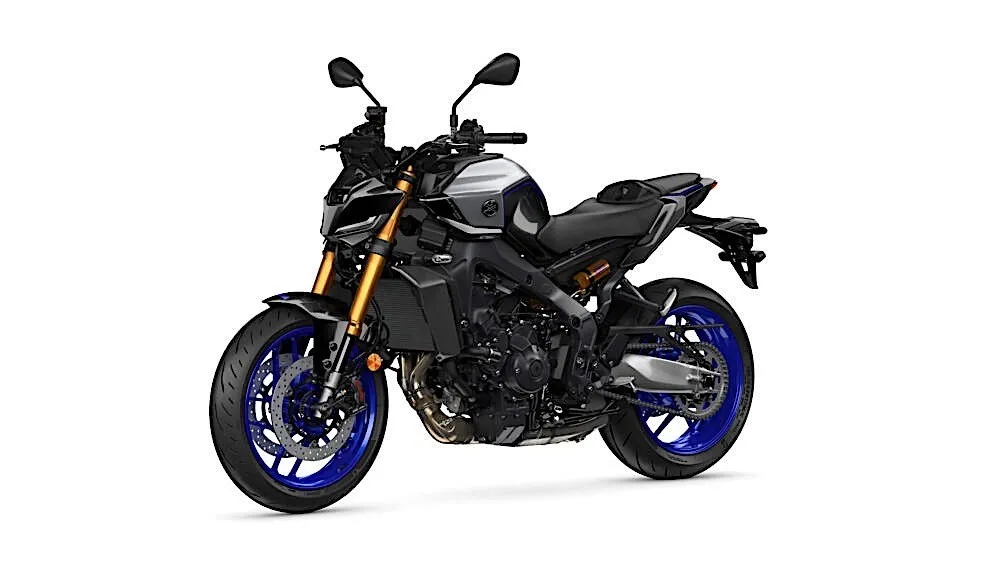

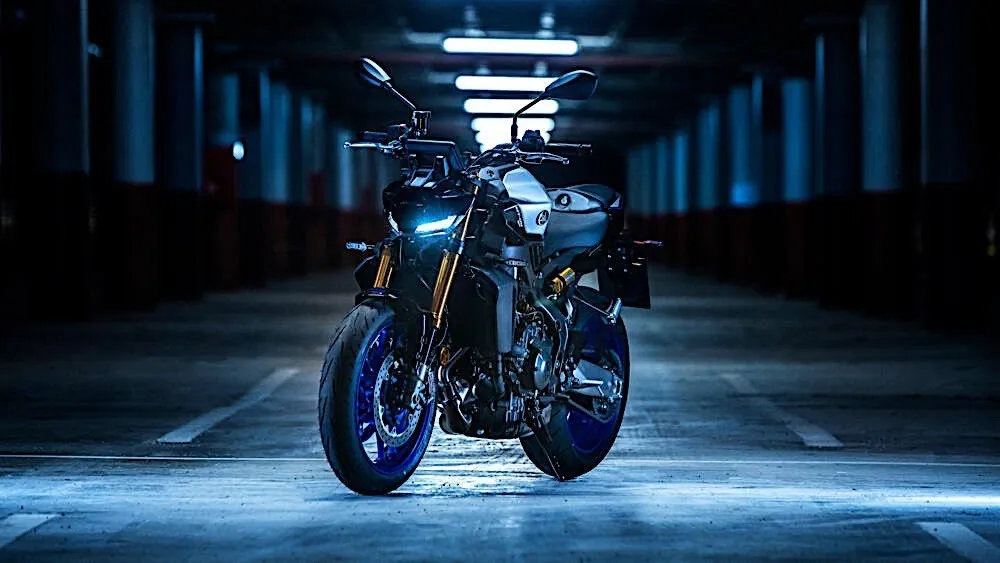

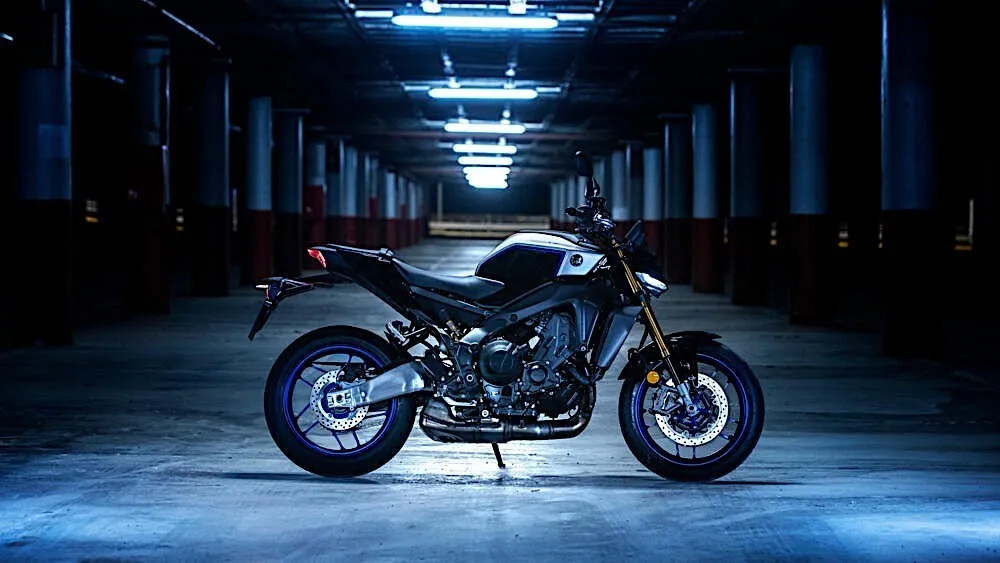

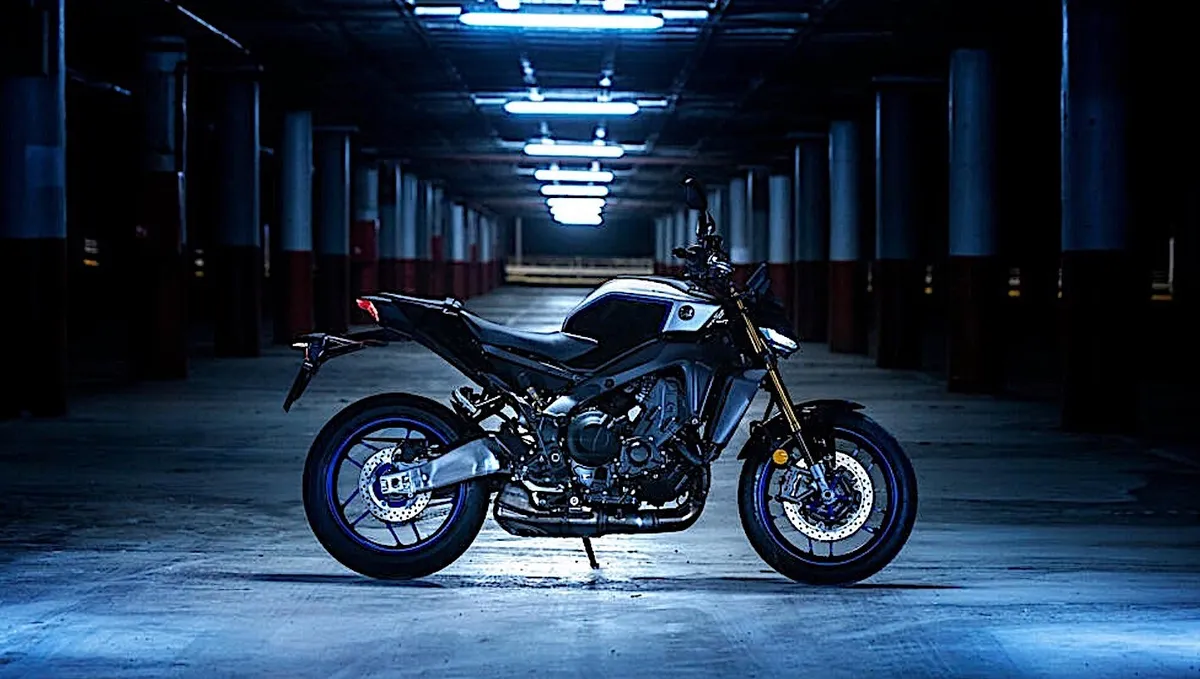

YAMAHA MT-09 SP (2023-Present)
Selected year: 2026
Technical specifications
- Engine capacity
- 890 cm³
- Power
- 119 hp (89 kW) at 10,000 rpm
- Wet weight
- 194.1 kg
- Seat height
- 825 mm
Overview
The Yamaha MT 09 SP is a naked motorcycle in the MT family, produced from 2018 through 2026. For 2026, its liquid-cooled 890 cm³ inline three-cylinder engine makes 119 hp (89 kW) and 93.0 Nm of torque at 7,000 rpm; wet weight is 194.1 kg.
The engine reaches peak torque at 7,000 rpm, and the motorcycle is listed at 3.30 seconds from 0 to 60 mph. Its 825 mm seat height and 194.1 kg wet weight shape how it feels at stops and during low-speed maneuvers. The fully adjustable KYB fork and Öhlins rear shock let riders tune suspension response, while ABS and an assist-and-slipper clutch provide braking and downshift support. Fuel consumption is 5.00 liters/100 km, with a calculated full-tank range of about 280 km from the 14-liter tank.
Specifications
Engine
Engine
- Bore x stroke
- 78.0 x 62.1 mm
- Engine capacity
- 890 cm³
- Compression ratio
- 11.5:1
- Cooling system
- Liquid
- Engine type
- In-line three-cylinder, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Lubrication system
- Wet sump
- Oil capacity
- 3.5 L
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- 0 100 km h 0 62 mph
- 3.50 seconds
- 0 60 mph
- 3.30 seconds
- Co2 emissions
- 116 g/km CO₂
- Fuel consumption
- 5 L/100 km
- Power
- 119 hp (89 kW) at 10,000 rpm
- Power weight ratio
- 0.6131 HP/kg (wet)
- Torque
- 93 Nm at 7,000 rpm
- Clutch
- Multiplate, assist and slipper clutch
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 14 L
- Ground clearance
- 140 mm
- Overall height
- 1,146 mm
- Overall length
- 2,090 mm
- Overall width
- 820 mm
- Seat height
- 825 mm
- Wet weight
- 194.1 kg
- Wheelbase
- 1,430 mm
Chassis and suspension
Chassis and suspension
- Frame
- Diamond
- Front suspension
- 41mm KYB inverted fork, adjustable preload, high/low speed compression and rebound
- Front wheel travel
- 130 mm
- Rake
- 24.7°
- Rear suspension
- Öhlins single shock, adjustable preload, compression and rebound damping;
- Rear wheel travel
- 117 mm
- Trail
- 108 mm
Brakes and wheels
Brakes and wheels
- Abs
- Yes
- Front brakes
- Double disc. ABS. Hydraulic.
- Front tyre
- 120/70-ZR17
- Rear brakes
- Single disc. ABS. Hydraulic.
- Rear tyre
- 180/55-ZR17
Colours and equipment
Colours and equipment
- Colours
- Liquid Metal/ Raven
Model years
2021
Engine capacity: 847 cm³ → 890 cm³; Power: 113 hp (85 kW) → 117 hp (87 kW); Torque: 87.5 Nm → 93 Nm; Wet weight: 193 kg → 190.1 kg; Seat height: 820 mm → 826 mm
2023
Power: 117 hp (87 kW) → 119 hp (89 kW); Seat height: 826 mm → 825 mm; Fuel consumption: 4.8 L/100 km → 5 L/100 km
2024
Wet weight: 190.1 kg → 193 kg; Seat height: 825 mm → 820 mm
2025
Wet weight: 193 kg → 194.1 kg; Seat height: 820 mm → 825 mm
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 890 cm³ | 890 cm³ | 890 cm³ | 890 cm³ | 890 cm³ | 890 cm³ |
| Power | 117 hp (87 kW) | 117 hp (87 kW) | 119 hp (89 kW) | 119 hp (89 kW) | 119 hp (89 kW) | 119 hp (89 kW) |
| Torque | 93 Nm | — | 93 Nm | 93 Nm | 93 Nm | 93 Nm |
| Wet weight | 190.1 kg | 190.1 kg | 190.1 kg | 193 kg | 194.1 kg | 194.1 kg |
| Seat height | 826 mm | 826 mm | 825 mm | 820 mm | 825 mm | 825 mm |
| Fuel capacity | 14 L | 14 L | 14 L | 14 L | 14 L | 14 L |
Pros and cons
Advantages
Adjustable suspension
The KYB fork adjusts for preload, compression, and rebound, while the Öhlins shock adds adjustable preload, compression, and rebound damping.
Assist-and-slipper clutch
It can reduce clutch effort and help calm the rear wheel during hard downshifts.
ABS at both ends
ABS-equipped front and rear brakes provide braking support at both wheels.
Things to consider
Seat height
At 825 mm, the seat may make it harder for shorter riders to plant both feet securely at a stop.
Chain final drive
The chain needs regular cleaning and adjustment, unlike a shaft drive.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Balls of both feet likely down
You should reach on both sides, but probably not with your heels fully down.
Seat height
825 mm
Approx. loaded height
795 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 14 L at 5 L/100 km
Lower consumption = longer range.
Estimated range
280 km
With 10% reserve
252 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine capacity of the 2026 Yamaha MT 09 SP?
It has an 890 cm³ liquid-cooled inline three-cylinder, four-stroke engine.
How much torque does the 2026 Yamaha MT 09 SP make?
It produces 93.0 Nm at 7,000 rpm.
How tall is the seat on the 2026 Yamaha MT 09 SP?
The seat height is 825 mm.
What is the calculated range on a full tank?
The calculated full-tank range is about 280 km from its 14-liter tank.
