Yamaha TT R110E
- Production years
- 2016–2026
- Brand
- Yamaha
Choose model year
1 / 8

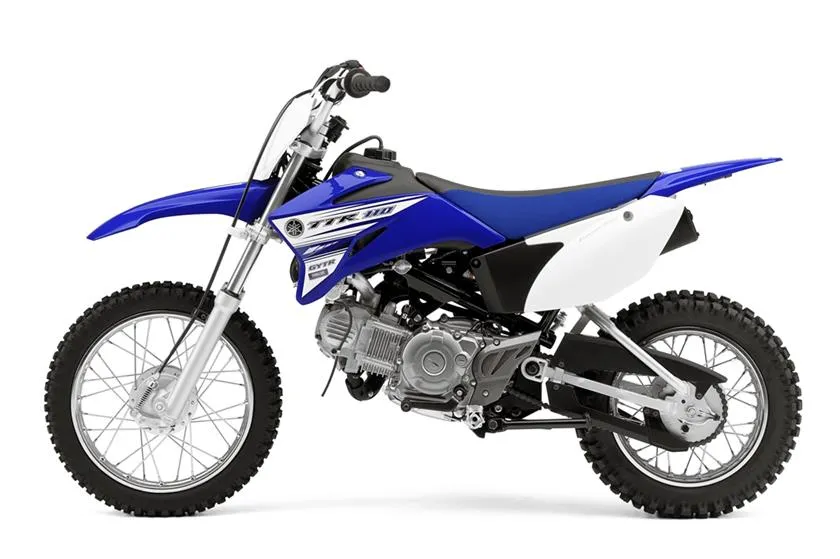

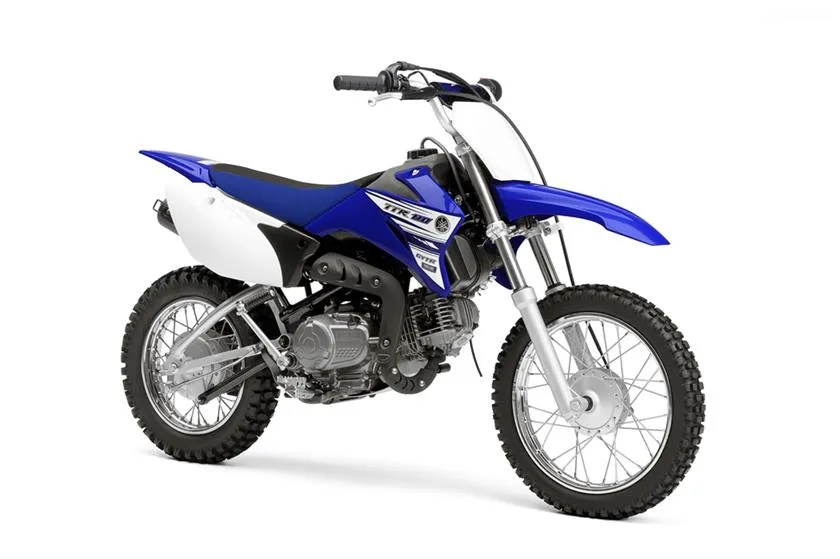

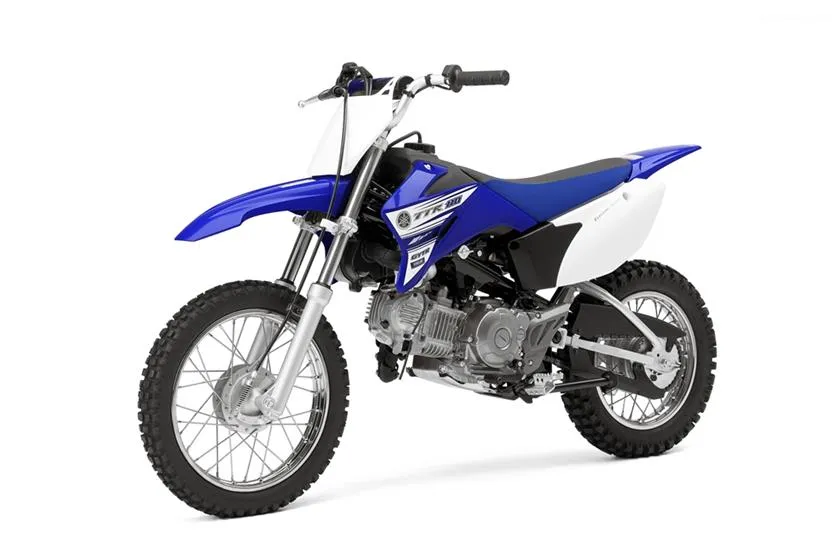

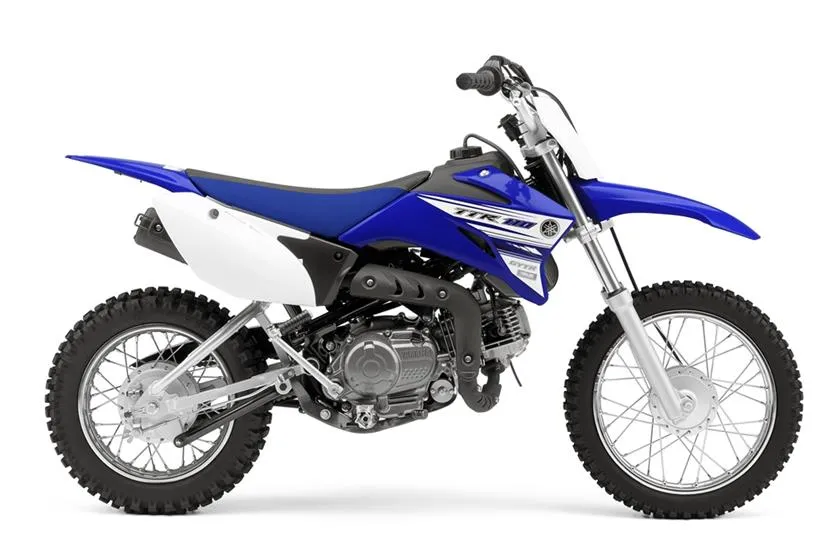

YAMAHA TT-R110E (2016-Present)
Selected year: 2026
Technical specifications
- Engine capacity
- 110 cm³
- Wet weight
- 72.1 kg
- Seat height
- 671 mm
Overview
The Yamaha TT R110E is a minibike produced from 2016 through 2026. For 2026, it has a 110 cm³ air-cooled, four-stroke single and weighs 72.1 kg wet; torque and power figures are not included here.
Its 671 mm seat height keeps the rider close to the ground, while the 72.1 kg wet weight makes the bike easier to maneuver at low speed. The 3.80-liter tank holds a limited amount of fuel between stops, and electric and kick starting give you a backup way to get going. Suspension travel is 114 mm up front and 109 mm at the rear, with 180 mm of ground clearance for riding over uneven surfaces.
Specifications
Engine
Engine
- Bore x stroke
- 51.0 x 54.0 mm
- Engine capacity
- 110 cm³
- Compression ratio
- 9.3:1
- Cooling system
- Air
- Engine type
- Single, four-stroke
- Fuel system
- Carburettor
- Ignition
- CDI
- Lubrication system
- Wet, multidisc
- Starting
- Electric & kick
- Valves per cylinder
- 2
Performance and transmission
Performance and transmission
- Clutch
- Multiplate, wet
- Final drive
- Chain
- Gearbox
- Manual 4-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 68.9 kg
- Fuel capacity
- 3.8 L
- Ground clearance
- 180 mm
- Overall height
- 919 mm
- Overall length
- 1,565 mm
- Overall width
- 681 mm
- Seat height
- 671 mm
- Wet weight
- 72.1 kg
- Wheelbase
- 1,080 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel backbound, diamond-type-design
- Front suspension
- 31mm telescopic fork
- Front wheel travel
- 114 mm
- Rake
- 26.0°
- Rear suspension
- Monocross® shock
- Rear wheel travel
- 109 mm
- Trail
- 61 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Expanding brake (drum brake)
- Front brakes diameter
- 95 mm
- Front tyre
- 2.50-14
- Rear brakes
- Expanding brake (drum brake)
- Rear brakes diameter
- 110 mm
- Rear tyre
- 3.00-12
Colours and equipment
Colours and equipment
- Colours
- Team Yamaha Blue
Model years
No recorded specification changes between model years.
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 110 cm³ | 110 cm³ | 110 cm³ | 110 cm³ | 110 cm³ | 110 cm³ |
| Power | — | — | — | — | — | — |
| Wet weight | 72.1 kg | 72.1 kg | 72.1 kg | 72.1 kg | 72.1 kg | 72.1 kg |
| Seat height | 671 mm | 671 mm | 671 mm | 671 mm | 671 mm | 671 mm |
| Fuel capacity | 3.8 L | 3.8 L | 3.8 L | 3.8 L | 3.8 L | 3.8 L |
Pros and cons
Advantages
Low seat
At 671 mm, the seat makes it easier for shorter riders to reach the ground at stops.
Light wet weight
The 72.1 kg wet weight helps keep the bike manageable during low-speed maneuvers.
Two starting methods
Electric and kick starting give you an alternative if one method is unavailable.
Things to consider
Limited fuel capacity
The 3.80-liter tank leaves less fuel aboard between stops.
Drum brakes at both ends
Both wheels use drum brakes rather than discs, which provide less braking bite and heat capacity.
Chain final drive
The chain needs periodic cleaning, lubrication, and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
671 mm
Approx. loaded height
641 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 3.8 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
69 km
With 10% reserve
62 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the Yamaha TT R110E have?
The 2026 TT R110E has a 110 cm³ air-cooled, four-stroke single.
How tall is the seat on the Yamaha TT R110E?
The seat height is 671 mm.
How does the Yamaha TT R110E start?
It has both electric and kick starting.
How much fuel does the Yamaha TT R110E hold?
Its fuel capacity is 3.80 liters.
