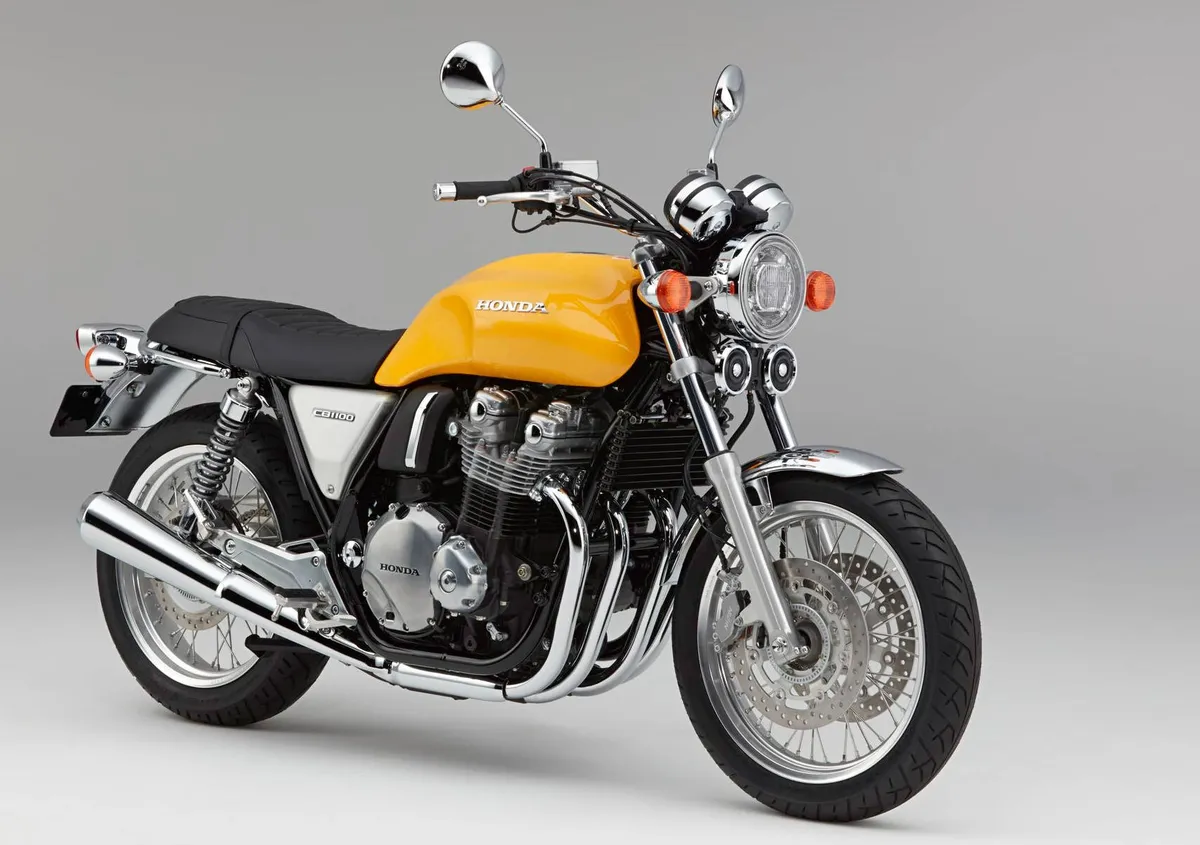

Honda CB 1100 EX
- Production years
- 2014–2019
- Brand
- Honda
Choose model year
1 / 5

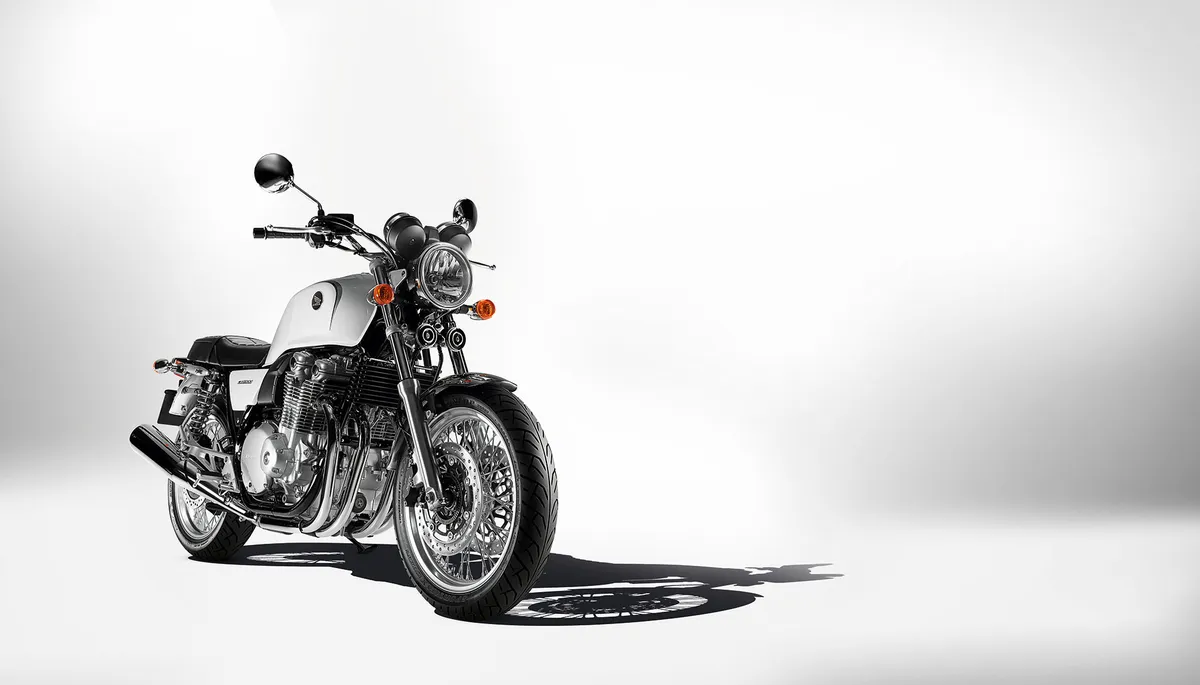

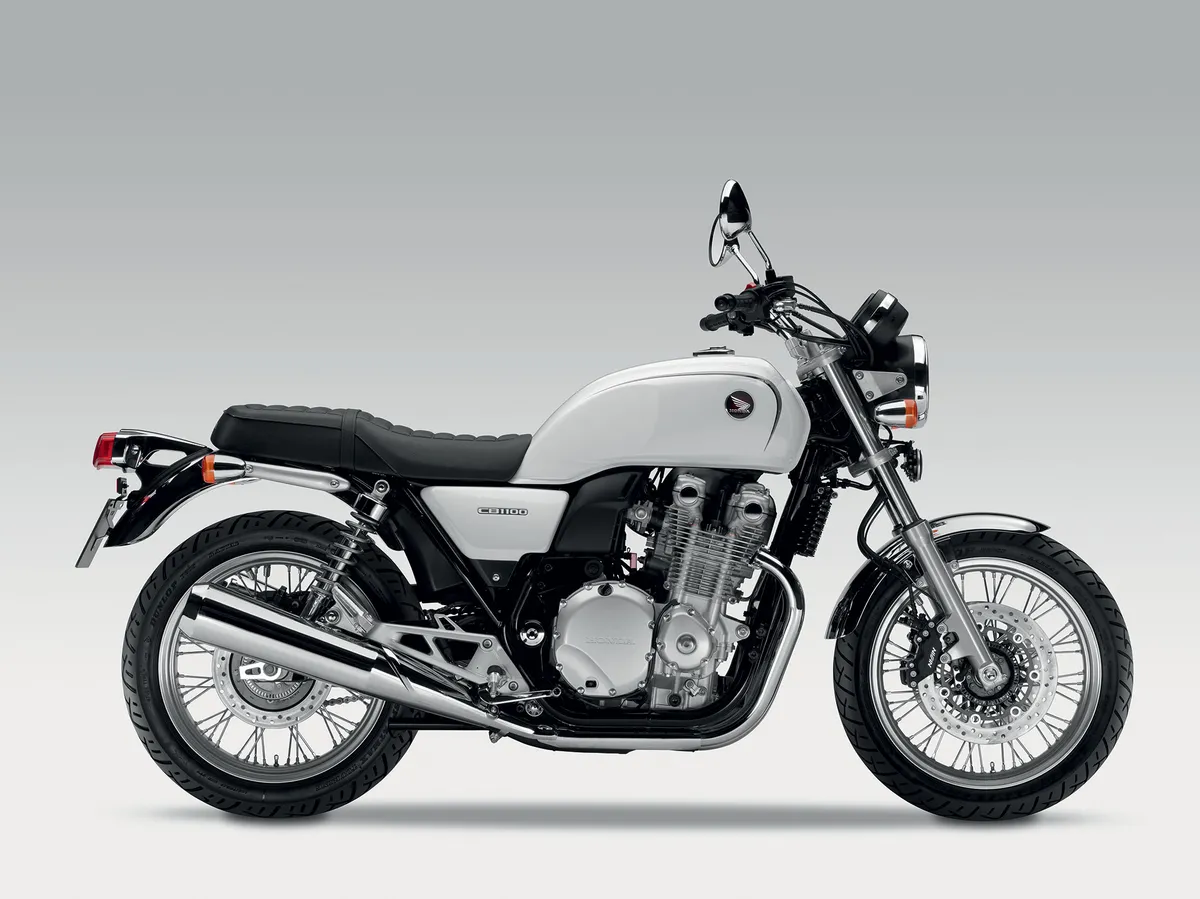

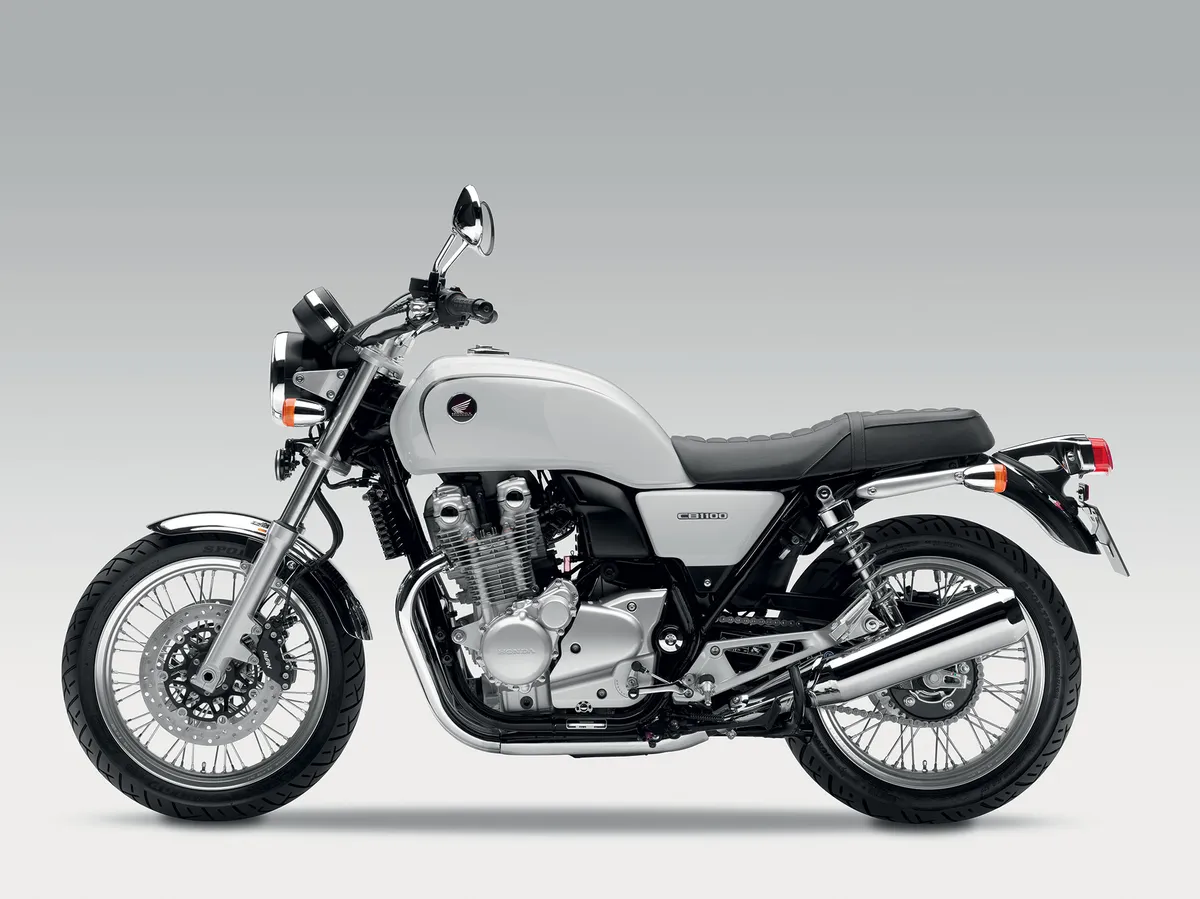

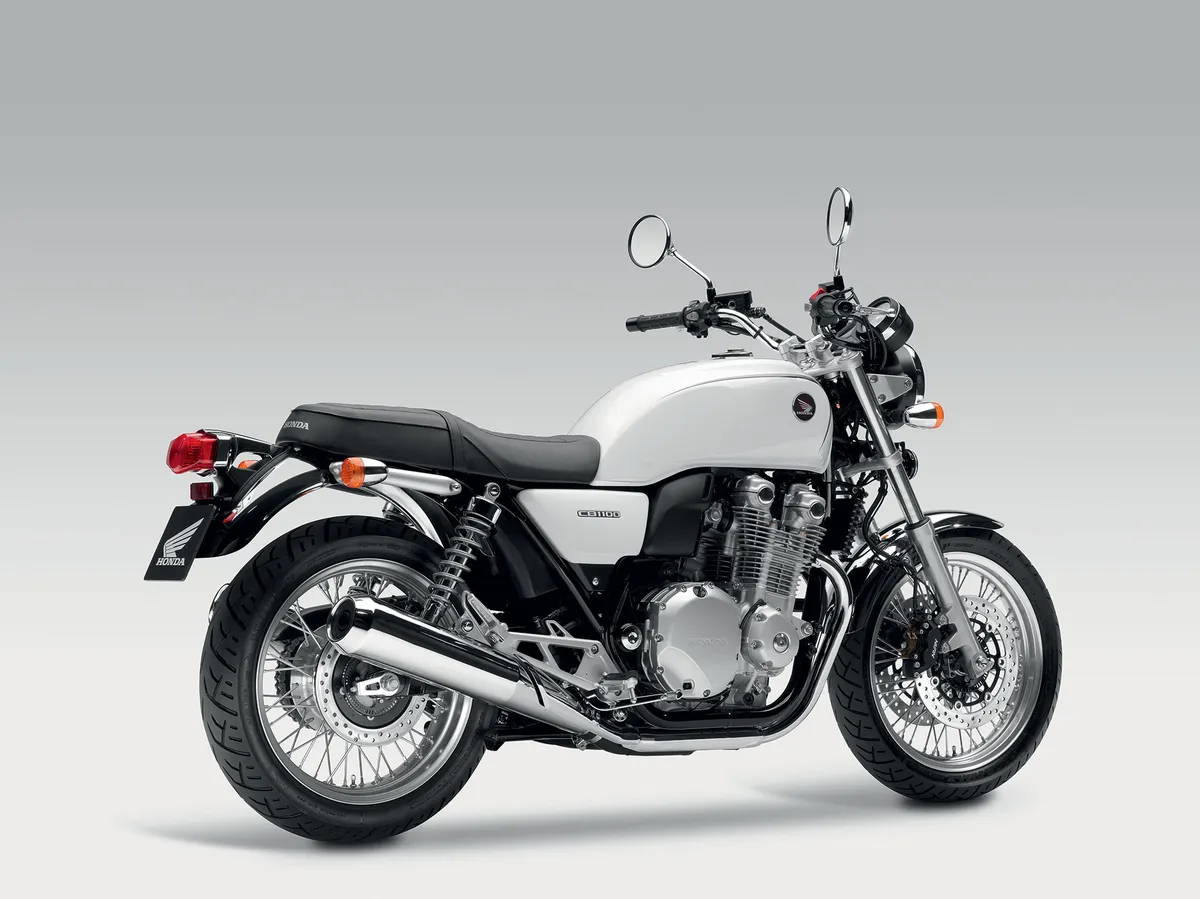

HONDA CB1100EX (2013-2014)
Selected year: 2019
Technical specifications
- Engine capacity
- 1,140 cm³
- Power
- 88 hp (66 kW) at 7,500 rpm
- Wet weight
- 255 kg
- Seat height
- 792 mm
Overview
The Honda CB 1100 EX is a naked motorcycle produced from 2014 to 2019. The 2019 model uses a 1,140 cm³, four-stroke in-line four making 88 hp (66 kW) and 91.3 Nm at 5,500 rpm, with a wet weight of 255 kg.
The 792 mm seat height affects how easily you can get your feet down at a stop, while the 255 kg wet weight can make slow-speed maneuvering more demanding. Its 16.8-liter tank and 6.00 liters/100 km fuel consumption work out to about 280 km per tank. Preload adjustment at both ends lets you tune the suspension for rider and load, and ABS is fitted to both brakes. Compared with 2018, the 2019 model is lighter than the previous 260.0 kg and has a lower seat than the previous 795 mm, easing handling and reach.
Specifications
Engine
Engine
- Bore x stroke
- 73.5 x 67.2 mm
- Engine capacity
- 1,140 cm³
- Compression ratio
- 9.5:1
- Cooling system
- Oil & air
- Engine type
- In-line four, four-stroke
- Fuel system
- Injection
- Ignition
- Digital transistorized with electronic advance
- Oil capacity
- 4.9 L
- Starting
- Electric
Performance and transmission
Performance and transmission
- Co2 emissions
- 139 g/km CO₂
- Fuel consumption
- 6 L/100 km
- Power
- 88 hp (66 kW) at 7,500 rpm
- Power weight ratio
- 0.3471 HP/kg (wet)
- Torque
- 91.3 Nm at 5,500 rpm
- Clutch
- Multi-plate wet clutch
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 16.8 L
- Ground clearance
- 135 mm
- Overall height
- 1,130 mm
- Overall length
- 2,200 mm
- Overall width
- 830 mm
- Seat height
- 792 mm
- Wet weight
- 255 kg
- Wheelbase
- 1,490 mm
Chassis and suspension
Chassis and suspension
- Frame
- Double steel cradle
- Front suspension
- 41mm conventional fork with adjustable spring preload
- Rake
- 27.0°
- Rear suspension
- Twin shocks with adjustable spring preload
- Trail
- 114 mm
Brakes and wheels
Brakes and wheels
- Abs
- Yes
- Front brakes
- Double disc. Floating discs. Four-piston calipers. ABS.
- Front brakes diameter
- 296 mm
- Front tyre
- 110/80-R18
- Rear brakes
- Single disc. Single-piston. ABS.
- Rear brakes diameter
- 256 mm
- Rear tyre
- 140/70-R18
Colours and equipment
Colours and equipment
- Colours
- Candy Chromsphere Red
Model years
2015
Fuel consumption: 5.6 L/100 km → 6 L/100 km
2019
Torque: 91 Nm → 91.3 Nm; Wet weight: 260 kg → 255 kg; Seat height: 795 mm → 792 mm; Fuel capacity: 17.5 L → 16.8 L
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 1,140 cm³ | 1,140 cm³ | 1,140 cm³ | 1,140 cm³ | 1,140 cm³ | 1,140 cm³ |
| Power | 88 hp (66 kW) | 88 hp (66 kW) | 88 hp (66 kW) | 88 hp (66 kW) | 88 hp (66 kW) | 88 hp (66 kW) |
| Torque | 91 Nm | 91 Nm | 91 Nm | 91 Nm | 91 Nm | 91.3 Nm |
| Wet weight | 260 kg | 260 kg | 260 kg | 260 kg | 260 kg | 255 kg |
| Seat height | 795 mm | 795 mm | 795 mm | 795 mm | 795 mm | 792 mm |
| Fuel capacity | 17.5 L | 17.5 L | 17.5 L | 17.5 L | 17.5 L | 16.8 L |
Pros and cons
Advantages
ABS on both brakes
ABS at the front and rear helps prevent wheel lockup during hard braking.
Adjustable suspension preload
Preload adjustment on the fork and twin shocks lets you account for changes in rider or passenger load.
Things to consider
Substantial wet weight
At 255 kg wet, the CB 1100 EX takes more effort to maneuver when moving slowly or backing up.
Chain final drive
The chain needs regular cleaning, lubrication, and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
792 mm
Approx. loaded height
762 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 16.8 L at 6 L/100 km
Lower consumption = longer range.
Estimated range
280 km
With 10% reserve
252 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2019 Honda CB 1100 EX have?
It has a 1,140 cm³, four-stroke in-line four producing 88 hp (66 kW).
How much torque does the 2019 Honda CB 1100 EX produce?
It produces 91.3 Nm at 5,500 rpm.
What is the seat height of the Honda CB 1100 EX?
The 2019 model has a seat height of 792 mm.
How far can the Honda CB 1100 EX travel on a full tank?
Its 16.8-liter tank gives a calculated range of about 280 km.
