Honda CB 1100A ABS
- Production years
- 2012–2013
- Brand
- Honda
1 / 2

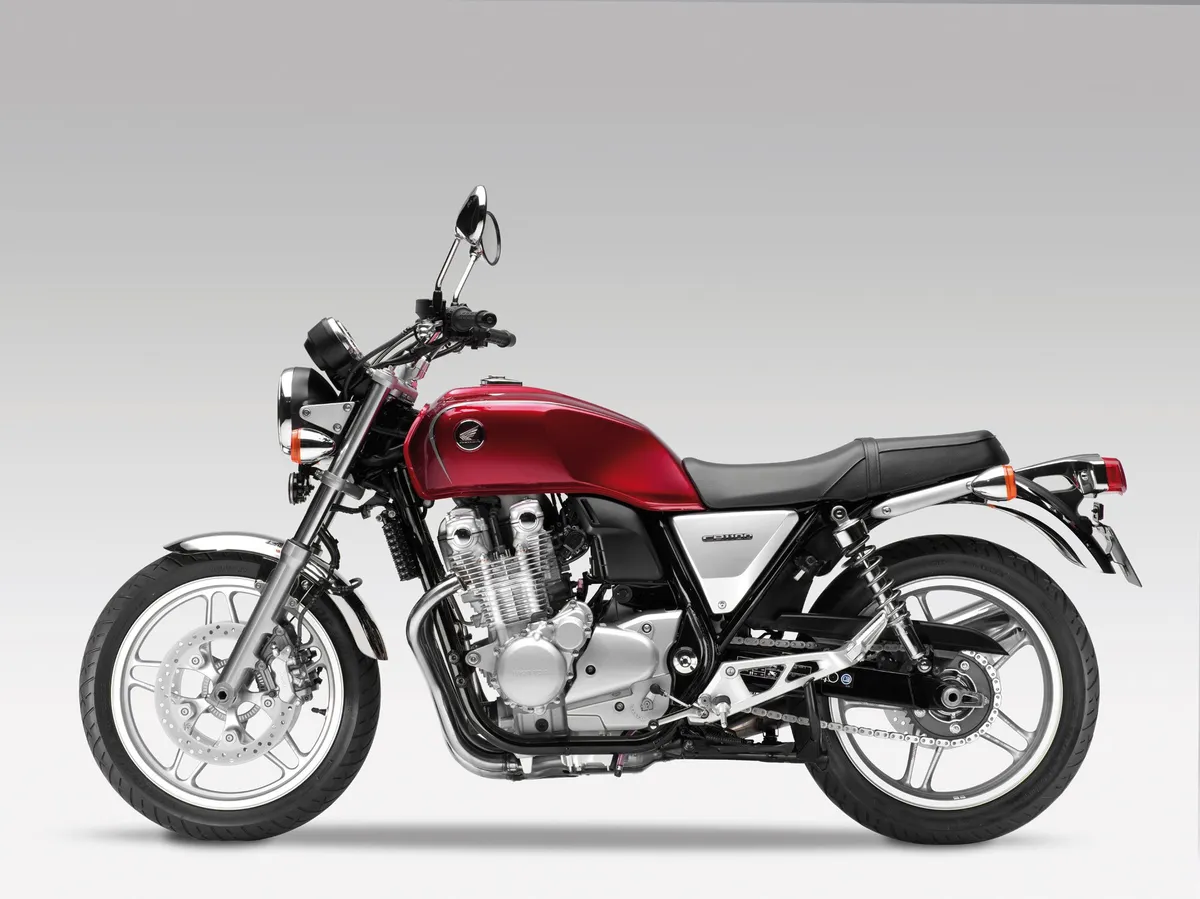

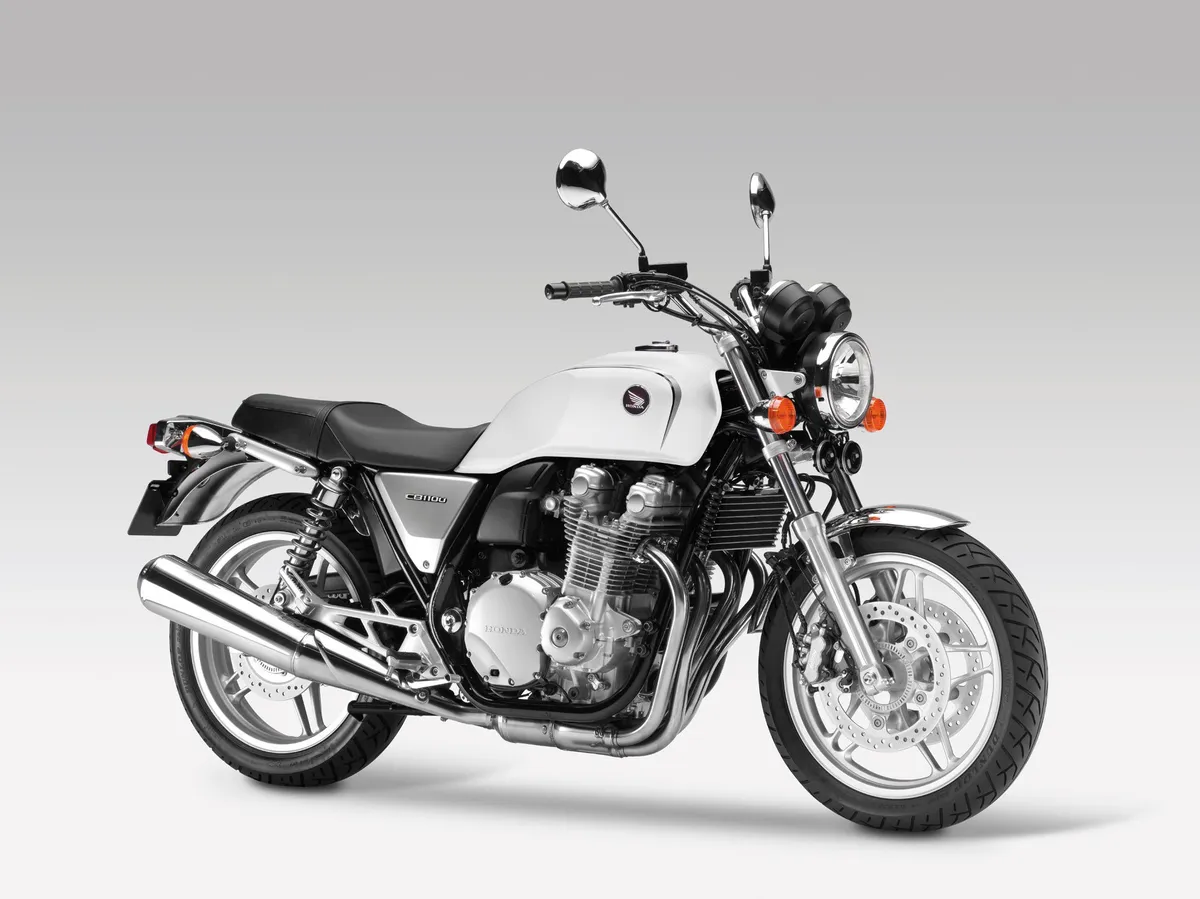

HONDA CB1100A ABS (2012-2013)
Selected year: 2013
Technical specifications
- Engine capacity
- 1,140 cm³
- Wet weight
- 248 kg
- Seat height
- 795 mm
Overview
The 2013 Honda CB 1100A ABS is a naked motorcycle powered by an air- and oil-cooled 1,140 cm³ inline-four. It produces 94 Nm of torque at 5,000 rpm and weighs 248 kg.
The 795 mm seat height gives a clear reference for reach, while the 248 kg weight can make slow-speed maneuvers more demanding. Ground clearance is 124 mm, and the 14.8 L fuel tank holds a fixed amount without establishing a riding range. Preload adjustment at both ends lets you tune the suspension for load and rider sag; ABS is fitted to both brakes. The five-speed gearbox sends power to the rear wheel through a sealed chain.
Specifications
Engine
Engine
- Engine capacity
- 1,140 cm³
- Compression ratio
- 9.5:1
- Stroke
- 74 mm
Performance and transmission
Performance and transmission
- Torque
- 94 Nm at 5,000 rpm
- Clutch
- Wet multi-plate, manual
- Gearbox
- Manual 5-speed
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 14.8 L
- Ground clearance
- 124 mm
- Overall length
- 2,195 mm
- Overall width
- 836 mm
- Seat height
- 795 mm
- Wet weight
- 248 kg
- Wheelbase
- 1,491 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel
Brakes and wheels
Brakes and wheels
- Front tyre
- 110/80 18
- Rear tyre
- 140/70 18
Pros and cons
Advantages
ABS at both ends
ABS on the front and rear brakes can help prevent wheel lock during hard braking.
Adjustable suspension preload
Preload adjustment at the fork and twin rear shocks lets you tailor suspension sag to the rider and load.
Strong torque figure
The engine’s 94 Nm peak at 5,000 rpm gives a useful measure of its pulling force without needing to chase high engine speeds.
Things to consider
Heavy at walking pace
At 248 kg, the motorcycle can take more effort to maneuver in tight spaces or when pushing it by hand.
Limited ground clearance
The 124 mm ground clearance leaves less room beneath the motorcycle over uneven surfaces.
Chain maintenance
The sealed chain still needs periodic cleaning, lubrication, and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
795 mm
Approx. loaded height
765 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 14.8 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
269 km
With 10% reserve
242 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine size of the 2013 Honda CB 1100A ABS?
It has an air- and oil-cooled 1,140 cm³ inline-four engine.
How much torque does the Honda CB 1100A ABS produce?
It produces 94 Nm of torque at 5,000 rpm.
How much does the 2013 Honda CB 1100A ABS weigh?
Its weight is 248 kg.
Does the 2013 Honda CB 1100A ABS have ABS?
Yes, ABS is fitted to both the front and rear brakes.
