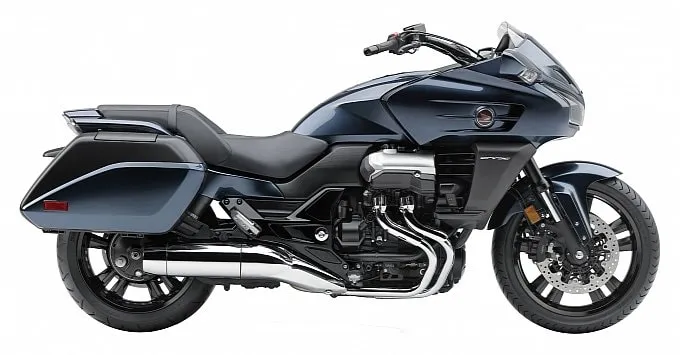

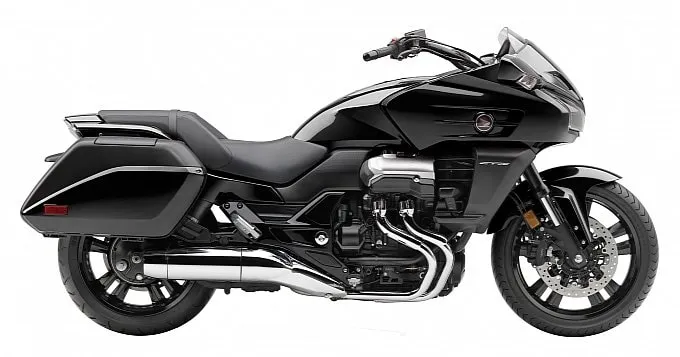

Honda CTX 1300 Deluxe
- Production years
- 2015–2018
- Brand
- Honda
Choose model year
1 / 4
HONDA CTX1300 Deluxe (2014-2014)
Selected year: 2018
Technical specifications
- Engine capacity
- 1,261 cm³
- Power
- 83 hp (62 kW) at 6,000 rpm
- Wet weight
- 338 kg
- Seat height
- 720 mm
Overview
The Honda CTX 1300 Deluxe is a cruiser produced from 2015 through 2018. The 2018 model has a 1,261 cm³ V-four, four-stroke engine making 83 hp (62 kW) and 106 Nm of torque at 4,500 rpm; its wet weight is 338 kg.
A 720 mm seat height puts the seat low, while the 338 kg wet weight can make parking and low-speed maneuvering demanding. Shaft drive means there is no chain to clean or adjust, and ABS works with the front and rear disc brakes; saddle bags provide onboard storage. The 19.5-liter tank and fuel consumption of 4.8 liters/100 km correspond to a calculated range of about 406 km. The 2016 model gained a larger tank than the 2015 version, increasing from 12.4 liters to 19.5 liters, and its wet weight rose from 333 kg to 338 kg.
Specifications
Engine
Engine
- Bore x stroke
- 78.0 x 66.0 mm
- Engine capacity
- 1,261 cm³
- Compression ratio
- 10.0:1
- Cooling system
- Liquid
- Engine type
- V four, four-stroke
- Fuel system
- Injection
- Ignition
- Computer-controlled digital with 3-D mapping and electronic advance
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 112 g/km CO₂
- Fuel consumption
- 4.8 L/100 km
- Power
- 83 hp (62 kW) at 6,000 rpm
- Power weight ratio
- 0.2459 HP/kg (wet)
- Top speed
- 195.0 km/h (121.2 mph)
- Torque
- 106 Nm at 4,500 rpm
- Final drive
- Shaft
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Carrying capacity
- Saddle bags.
- Fuel capacity
- 19.5 L
- Ground clearance
- 130 mm
- Overall height
- 1,170 mm
- Overall length
- 2,380 mm
- Overall width
- 940 mm
- Seat height
- 720 mm
- Wet weight
- 338 kg
- Wheelbase
- 1,645 mm
Chassis and suspension
Chassis and suspension
- Front suspension
- Inverted 45mm fork
- Front wheel travel
- 107 mm
- Rake
- 28.5°
- Rear suspension
- Twin rear shocks with spring
- Rear wheel travel
- 110 mm
- Trail
- 114 mm
Brakes and wheels
Brakes and wheels
- Abs
- Yes
- Front brakes
- Double disc. ABS
- Front brakes diameter
- 310 mm
- Front tyre
- 130/70-R18
- Rear brakes
- Single disc. ABS
- Rear brakes diameter
- 315 mm
- Rear tyre
- 200/50-R17
Colours and equipment
Colours and equipment
- Colours
- Metallic Black, Gray Blue Metallic, Candy Red
Model years
2016
Power: 83 hp (62 kW) → 83 hp (62 kW); Wet weight: 333 kg → 338 kg; Fuel capacity: 12.4 L → 19.5 L
| Specification | ||||
|---|---|---|---|---|
| Engine capacity | 1,261 cm³ | 1,261 cm³ | 1,261 cm³ | 1,261 cm³ |
| Power | 83 hp (62 kW) | 83 hp (62 kW) | 83 hp (62 kW) | 83 hp (62 kW) |
| Torque | — | 106 Nm | 106 Nm | 106 Nm |
| Wet weight | 333 kg | 338 kg | 338 kg | 338 kg |
| Seat height | 720 mm | 720 mm | 720 mm | 720 mm |
| Fuel capacity | 12.4 L | 19.5 L | 19.5 L | 19.5 L |
Pros and cons
Advantages
Shaft final drive
The shaft drive avoids routine chain cleaning and adjustment.
Low seat
At 720 mm, the seat height can make it easier for riders to get their feet down at a stop.
Saddle bags and ABS
Saddle bags add carrying space, while ABS helps prevent wheel lockup during hard braking.
Things to consider
Heavy at low speed
The 338 kg wet weight can take more effort to maneuver in parking lots and at walking pace.
Limited ground clearance
The 130 mm ground clearance leaves less room beneath the motorcycle over bumps or steep transitions.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
720 mm
Approx. loaded height
690 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 19.5 L at 4.8 L/100 km
Lower consumption = longer range.
Estimated range
406 km
With 10% reserve
366 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine capacity of the 2018 Honda CTX 1300 Deluxe?
It has a 1,261 cm³, four-stroke V-four engine.
How much power and torque does it make?
It produces 83 hp (62 kW) and 106 Nm of torque at 4,500 rpm.
How tall is the seat?
The seat height is 720 mm.
Does the Honda CTX 1300 Deluxe have ABS and saddle bags?
Yes, it has ABS on its disc brakes and comes with saddle bags.
