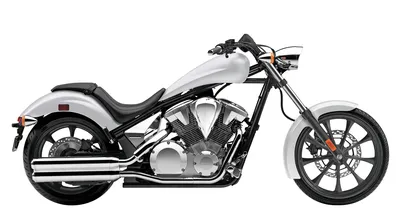

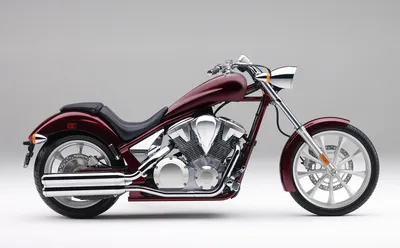

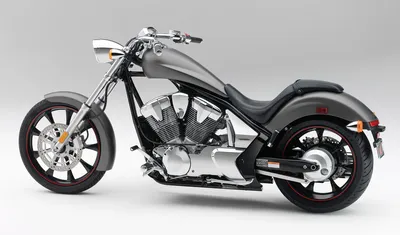

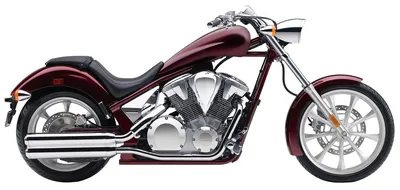

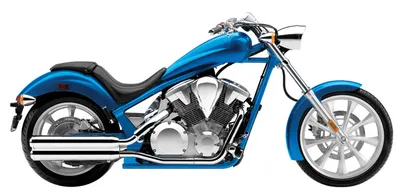

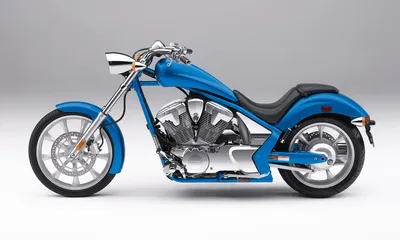

Honda Fury VT1300CX
- Production years
- 2016–2026
- Brand
- Honda
Choose model year
1 / 10
HONDA VT1300CX Fury (2009-2010)
Selected year: 2026
Technical specifications
- Engine capacity
- 1,312 cm³
- Power
- 63 hp (47 kW)
- Wet weight
- 306.2 kg
- Seat height
- 678 mm
Overview
The Honda Fury VT1300CX is a cruiser in the Fury family, produced from 2016 through 2026. The 2026 model uses a 1,312 cm³ four-stroke V-twin making 63 hp (47 kW), with a wet weight of 306.2 kg.
Its 678 mm seat height puts the rider low, while the 306.2 kg wet weight can make slow-speed maneuvering more demanding. Fuel consumption is 5.20 liters/100 km, and the 12.90-liter tank gives a calculated range of about 248 km.
Specifications
Engine
Engine
- Bore x stroke
- 89.5 x 104.3 mm
- Engine capacity
- 1,312 cm³
- Compression ratio
- 9.2:1
- Cooling system
- Liquid
- Engine type
- V-Twin, four-stroke
- Fuel system
- Injection
- Ignition
- Digital with three-dimensional mapping, two spark plugs per cylinder
- Starting
- Electric
- Valves per cylinder
- 3
Performance and transmission
Performance and transmission
- Fuel consumption
- 5.2 L/100 km
- Power
- 63 hp (47 kW)
- Power weight ratio
- 0.2057 HP/kg (wet)
- Clutch
- Multiplate wet
- Final drive
- Shaft
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 12.9 L
- Ground clearance
- 125 mm
- Overall height
- 1,151 mm
- Overall length
- 2,553 mm
- Overall width
- 897 mm
- Seat height
- 678 mm
- Wet weight
- 306.2 kg
- Wheelbase
- 1,803 mm
Chassis and suspension
Chassis and suspension
- Frame
- High-tensile steel
- Front suspension
- 45mm telescopic fork
- Front wheel travel
- 130 mm
- Rake
- 32.0°
- Rear suspension
- Single shock with adjustable rebound-damping and five-position spring-preload adjustability
- Rear wheel travel
- 89 mm
- Trail
- 92 mm
Brakes and wheels
Brakes and wheels
- Abs
- Yes
- Front brakes
- Single disc. Two-piston calipers. ABS.
- Front brakes diameter
- 336 mm
- Front tyre
- 90/90-21
- Rear brakes
- Single disc. Single-piston caliper. ABS.
- Rear brakes diameter
- 296 mm
- Rear tyre
- 200/50-18
Colours and equipment
Colours and equipment
- Colours
- Adventure Green
Model years
2018
Wet weight: 301 kg → 300.7 kg
2023
Wet weight: 300.7 kg → 308.9 kg
2025
Wet weight: 308.9 kg → 306.2 kg; Seat height: 683 mm → 678 mm
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 1,312 cm³ | 1,312 cm³ | 1,312 cm³ | 1,312 cm³ | 1,312 cm³ | 1,312 cm³ |
| Power | 63 hp (47 kW) | 63 hp (47 kW) | 63 hp (47 kW) | 63 hp (47 kW) | 63 hp (47 kW) | 63 hp (47 kW) |
| Torque | 89.5 Nm | 89.5 Nm | 89.5 Nm | 89.5 Nm | — | — |
| Wet weight | 300.7 kg | 300.7 kg | 308.9 kg | 308.9 kg | 306.2 kg | 306.2 kg |
| Seat height | 683 mm | 683 mm | 683 mm | 683 mm | 678 mm | 678 mm |
| Fuel capacity | 12.9 L | 12.9 L | 12.9 L | 12.9 L | 12.9 L | 12.9 L |
Pros and cons
Advantages
Shaft final drive
It avoids the routine chain cleaning and adjustment that chain-driven motorcycles require.
ABS on both wheels
ABS at the front and rear helps reduce the chance of wheel lockup during hard braking.
Adjustable rear suspension
The rear shock’s rebound damping and five-position spring preload can be adjusted to suit the rider and load.
Things to consider
Heavy at low speed
At 306.2 kg wet, the Fury can take more effort to push around or balance during tight, slow maneuvers.
Limited range between fuel stops
The calculated range is about 248 km on a 12.90-liter tank, so longer rides may require more frequent stops for fuel.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
678 mm
Approx. loaded height
648 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 12.9 L at 5.2 L/100 km
Lower consumption = longer range.
Estimated range
248 km
With 10% reserve
223 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine size of the 2026 Honda Fury VT1300CX?
It has a 1,312 cm³ four-stroke V-twin engine.
How much power does the 2026 Honda Fury VT1300CX make?
It makes 63 hp (47 kW).
What is the fuel range of the Honda Fury VT1300CX?
Its calculated range on a full 12.90-liter tank is about 248 km.
Does the Honda Fury VT1300CX have ABS?
Yes, ABS is fitted to both the front and rear brakes.
