Honda Shadow Phantom VT750C2B
- Production years
- 2010–2011
- Brand
- Honda
1 / 3

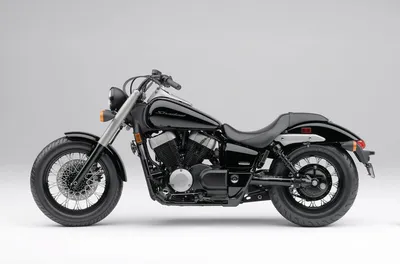

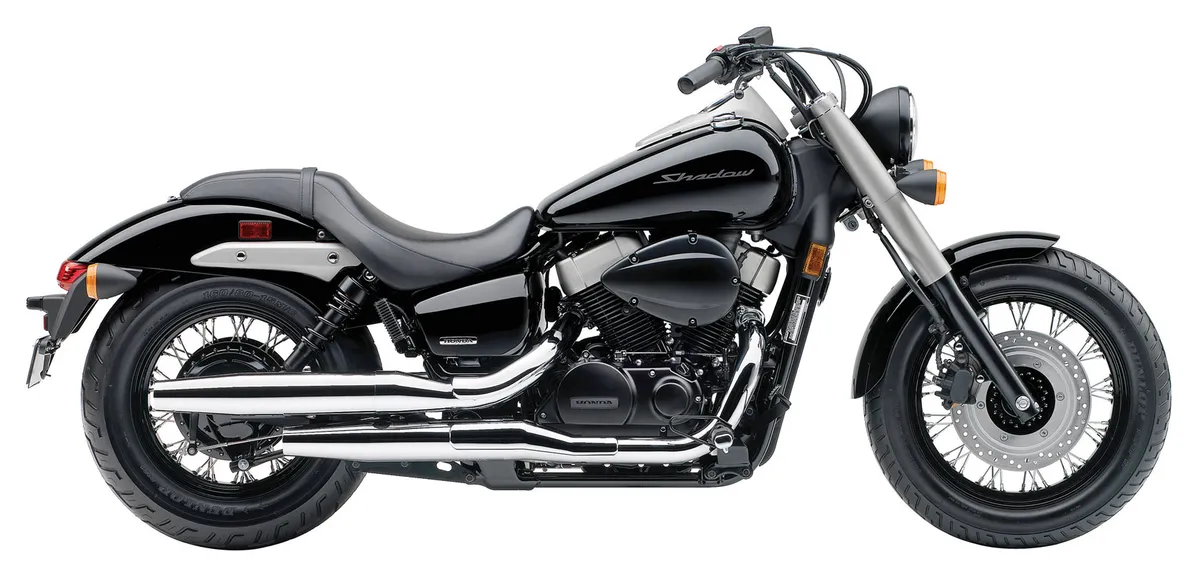

HONDA Shadow Phantom VT750C2B (2010-2011)
Selected year: 2011
Technical specifications
- Engine capacity
- 745 cm³
- Wet weight
- 249 kg
- Seat height
- 655 mm
Overview
The 2011 Honda Shadow Phantom VT750C2B is a cruiser from the Shadow family, produced for 2011. Its 745 cm³ liquid-cooled 52-degree V-twin uses SOHC pushrod valve actuation with three valves per cylinder, and the motorcycle weighs 249 kg.
A 655 mm seat gives a low perch that can make it easier to put both feet down. The 1,641 mm wheelbase and 249 kg weight call for deliberate handling at walking pace; the rear suspension has five-position preload adjustment to tailor it to the rider and load, with 3.5 inches of travel.
Specifications
Engine
Engine
- Engine capacity
- 745 cm³
- Compression ratio
- 9.6:1
- Stroke
- 79 mm
Performance and transmission
Performance and transmission
- Clutch
- Wet multi-plate, manual
- Final drive
- Shaft
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 14 L
- Seat height
- 655 mm
- Wet weight
- 249 kg
- Wheelbase
- 1,641 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel
Brakes and wheels
Brakes and wheels
- Front tyre
- 120/90-17
- Rear brakes
- Drum
- Rear tyre
- 160/80-15
Pros and cons
Advantages
Shaft final drive
The shaft drive avoids the routine chain cleaning and adjustment required by a chain final drive.
Automatic fuel enrichment
PGM-FI with automatic enrichment handles the richer mixture needed for starting without a manual choke adjustment.
Adjustable rear preload
Five preload positions let the rider tune the rear suspension for different loads.
Things to consider
Heavy at low speed
At 249 kg, it takes more effort to maneuver in tight spaces and at walking pace.
Limited rear suspension travel
The rear suspension's 3.5 inches of travel can leave less room to absorb larger bumps than the front's 4.6 inches.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
655 mm
Approx. loaded height
625 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 14 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
255 km
With 10% reserve
229 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2011 Honda Shadow Phantom VT750C2B have?
It has a 745 cm³ liquid-cooled 52-degree V-twin with SOHC pushrod valve actuation and three valves per cylinder.
What is the final drive on the Honda Shadow Phantom VT750C2B?
It uses shaft final drive.
How tall is the seat on the 2011 Honda Shadow Phantom VT750C2B?
The seat height is 655 mm.
How much fuel does the 2011 Honda Shadow Phantom VT750C2B hold?
Its fuel capacity is 14 L.
