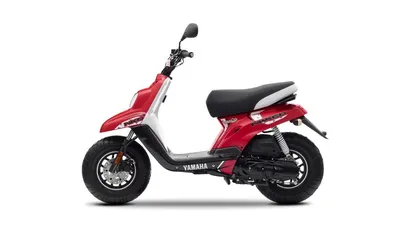

Yamaha BW\s Naked'
- Production years
- 2012–2013
- Brand
- Yamaha
1 / 10
YAMAHA BW's (2011-2012)
Selected year: 2013
Technical specifications
- Engine capacity
- 49 cm³
- Wet weight
- 82 kg
- Seat height
- 767 mm
Overview
The Yamaha BW\s Naked' is a scooter produced in 2013. Its air-cooled, single-cylinder, two-stroke engine displaces 49 cm³ and makes 4 Nm of torque at 6,000 rpm; the scooter weighs 82 kg.
An automatic CVT and belt final drive mean there are no manual gear changes or chain adjustments. The 767 mm seat height can make stopping and putting a foot down easier, while the 82 kg weight helps with low-speed maneuvering. The 5.3-liter tank limits how much fuel it carries, and 70 mm of suspension travel at each end leaves limited movement for absorbing larger bumps.
Specifications
Engine
Engine
- Engine capacity
- 49 cm³
- Compression ratio
- 7.22: 1
- Stroke
- 41 mm
Performance and transmission
Performance and transmission
- Torque
- 4 Nm at 6,000 rpm
- Final drive
- Belt
- Gearbox
- Automatic
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 5.3 L
- Ground clearance
- 124 mm
- Overall length
- 1,684 mm
- Overall width
- 706 mm
- Seat height
- 767 mm
- Wet weight
- 82 kg
- Wheelbase
- 1,171 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel
Brakes and wheels
Brakes and wheels
- Front tyre
- 120/90-10
- Rear tyre
- 150/80-10
Pros and cons
Advantages
Lightweight
At 82 kg, it should be easier to maneuver at low speeds and move around when parked.
Easy controls
The automatic CVT handles gear changes for you, making stop-and-go riding simpler.
Accessible seat height
The 767 mm seat can make it easier to reach the ground at stops.
Things to consider
Limited fuel capacity
The 5.3-liter tank carries only a modest amount of fuel between fill-ups.
Short suspension travel
With 70 mm of travel at both ends, the suspension has limited room to absorb larger bumps.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
767 mm
Approx. loaded height
737 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 5.3 L at 3.5 L/100 km
Lower consumption = longer range.
Estimated range
151 km
With 10% reserve
136 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the Yamaha BW\s Naked' have?
It has an air-cooled, single-cylinder, two-stroke engine with a displacement of 49 cm³.
Does the Yamaha BW\s Naked' have a manual transmission?
No, it uses an automatic CVT.
How much does the Yamaha BW\s Naked' weigh?
It weighs 82 kg.
How large is the fuel tank on the Yamaha BW\s Naked'?
The fuel tank holds 5.3 liters.
