Yamaha V Star 1300
- Production years
- 2007–2017
- Brand
- Yamaha
Choose model year
1 / 10

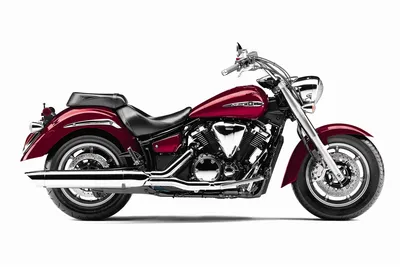

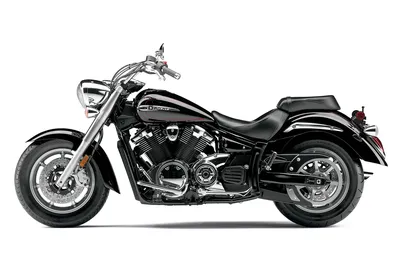

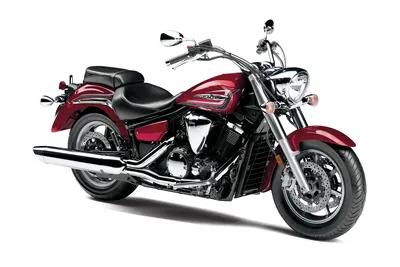

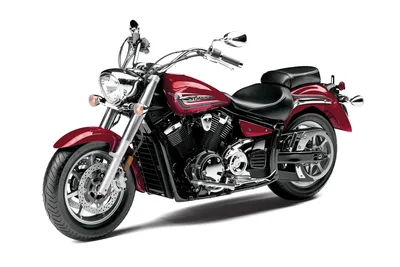

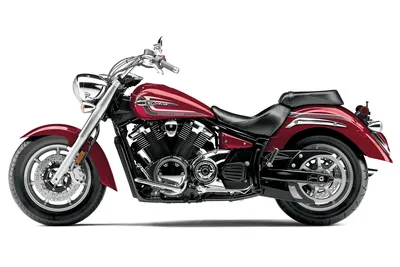

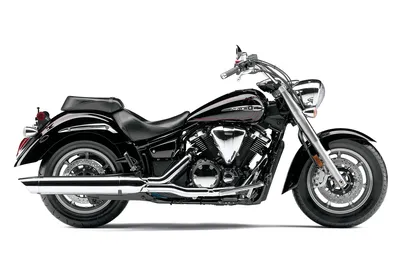

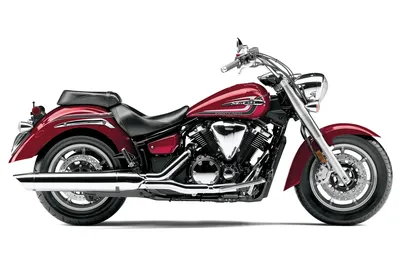

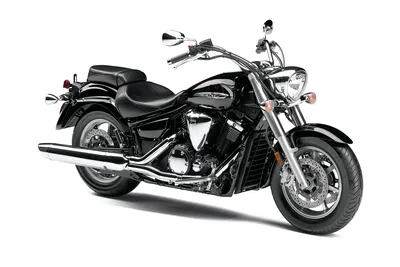

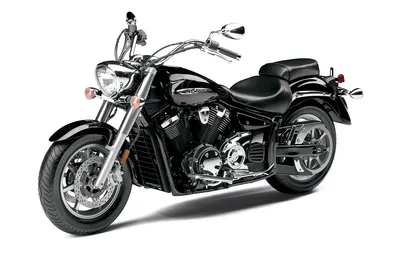

YAMAHA V-Star 1300 (2013-2014)
Selected year: 2017
Technical specifications
- Engine capacity
- 1,311 cm³
- Power
- 74 hp (55 kW)
- Wet weight
- 303 kg
- Seat height
- 691 mm
Overview
The Yamaha V Star 1300 is a cruiser produced from 2007 to 2017. The 2017 model has a 1,311.0 cm³ liquid-cooled, four-stroke V-Twin rated at 74 hp (55 kW), with a wet weight of 303 kg.
Its 691 mm seat height gives a low seating position, while the 303 kg wet weight can make low-speed maneuvering more demanding. The 18.6-liter tank and stated fuel consumption of 5.6 liters/100 km work out to about 332 km per tank. Belt final drive avoids chain cleaning and adjustment; the seat height dropped from 714 mm in 2011 to 691 mm in 2012.
Specifications
Engine
Engine
- Bore x stroke
- 100.0 x 83.0 mm
- Engine capacity
- 1,311 cm³
- Compression ratio
- 9.5:1
- Cooling system
- Liquid
- Engine type
- V-Twin, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 130 g/km CO₂
- Fuel consumption
- 5.6 L/100 km
- Power
- 74 hp (55 kW)
- Power weight ratio
- 0.2615 HP/kg (dry)
- Clutch
- Multiplate wet
- Final drive
- Belt
- Gearbox
- Manual 5-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 283 kg
- Fuel capacity
- 18.6 L
- Overall height
- 1,146 mm
- Overall length
- 2,489 mm
- Overall width
- 1,001 mm
- Seat height
- 691 mm
- Wet weight
- 303 kg
- Wheelbase
- 1,689 mm
Chassis and suspension
Chassis and suspension
- Frame
- Double Cradle
- Front suspension
- 41mm Telescopic fork
- Front wheel travel
- 135 mm
- Rake
- 29.0°
- Rear suspension
- Single shock
- Rear wheel travel
- 109 mm
- Trail
- 102 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Double disc. Hydraulic.
- Front brakes diameter
- 298 mm
- Front tyre
- 130/90-16
- Rear brakes
- Single disc. Hydraulic.
- Rear brakes diameter
- 298 mm
- Rear tyre
- 170/70-16
Colours and equipment
Colours and equipment
- Colours
- Metallic Silver
- Warranty
- 12
Model years
2011
Fuel capacity: 18.5 L → 18.6 L
2012
Seat height: 714 mm → 691 mm
2015
Engine capacity: 1,311.1 cm³ → 1,311 cm³
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 1,311.1 cm³ | 1,311.1 cm³ | 1,311.1 cm³ | 1,311 cm³ | 1,311 cm³ | 1,311 cm³ |
| Power | 74 hp (55 kW) | 74 hp (55 kW) | 74 hp (55 kW) | 74 hp (55 kW) | 74 hp (55 kW) | 74 hp (55 kW) |
| Wet weight | 303 kg | 303 kg | 303 kg | 303 kg | 303 kg | 303 kg |
| Seat height | 691 mm | 691 mm | 691 mm | 691 mm | 691 mm | 691 mm |
| Fuel capacity | 18.6 L | 18.6 L | 18.6 L | 18.6 L | 18.6 L | 18.6 L |
Pros and cons
Advantages
Low seat
The 691 mm seat height makes it easier for many riders to put their feet down at a stop.
Belt final drive
The belt drive avoids the regular cleaning and adjustment required by a chain.
Dual front discs
Two 298 mm front discs provide braking at both sides of the front wheel.
Things to consider
Heavy at low speed
At 303 kg wet, the V Star 1300 takes more effort to maneuver around a parking lot or move by hand.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
691 mm
Approx. loaded height
661 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 18.6 L at 5.6 L/100 km
Lower consumption = longer range.
Estimated range
332 km
With 10% reserve
299 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine size of the 2017 Yamaha V Star 1300?
It has a 1,311.0 cm³, liquid-cooled, four-stroke V-Twin engine.
How much power does the 2017 Yamaha V Star 1300 make?
It produces 74 hp (55 kW).
How much does the 2017 Yamaha V Star 1300 weigh?
Its wet weight is 303 kg, and its dry weight is 283 kg.
What is the 2017 Yamaha V Star 1300's fuel range?
With an 18.6-liter tank and fuel consumption of 5.6 liters/100 km, its calculated range is about 332 km.
