Yamaha YZF R1M
- Production years
- 2015–2026
- Brand
- Yamaha
Choose model year
1 / 10

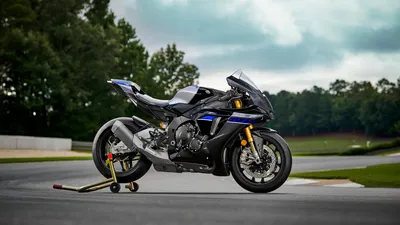

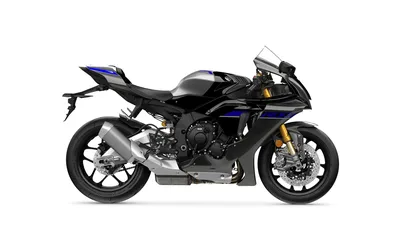

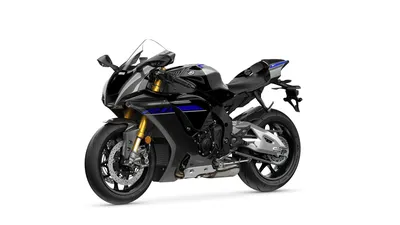

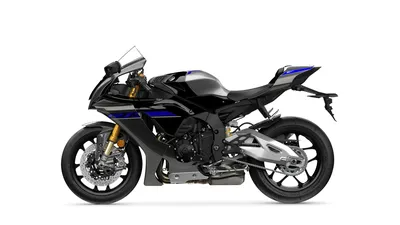

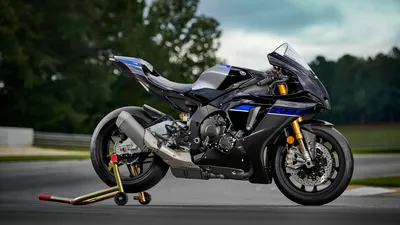

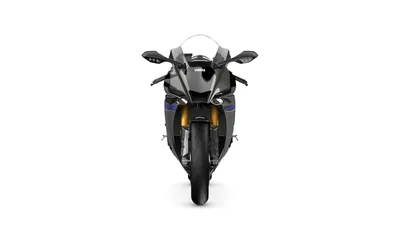

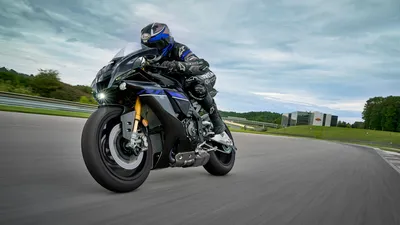

YAMAHA YZF-R1M (2024-Present)
Selected year: 2026
Technical specifications
- Engine capacity
- 998 cm³
- Power
- 200 hp (149 kW) at 13,500 rpm
- Wet weight
- 205 kg
- Seat height
- 861 mm
Overview
The Yamaha YZF R1M is a sportbike produced from 2015 through 2026. For 2026, its 998 cm³ liquid-cooled, four-stroke inline-four produces 200 hp (149 kW), with 112 Nm of torque at 11,500 rpm; wet weight is 205 kg.
The torque peak comes at high rpm, so reaching it means revving the engine. Its 861 mm seat height creates a tall perch, while the fully adjustable electronic Öhlins suspension lets riders tune the setup. ABS is fitted at both ends, and the assist-and-slipper clutch helps calm the rear wheel on hard downshifts. The 17-liter tank gives an estimated range of about 239 km at a stated consumption of 7.10 liters/100 km.
Specifications
Engine
Engine
- Bore x stroke
- 79.0 x 50.9 mm
- Engine capacity
- 998 cm³
- Compression ratio
- 13.0:1
- Cooling system
- Liquid
- Engine type
- In-line four, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Lubrication system
- Wet sump
- Oil capacity
- 4.9 L
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Fuel consumption
- 7.1 L/100 km
- Power
- 200 hp (149 kW) at 13,500 rpm
- Power weight ratio
- 1.1111 HP/kg (dry)
- Torque
- 112 Nm at 11,500 rpm
- Clutch
- Wet multiplate assist and slipper clutch
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 180 kg
- Fuel capacity
- 17 L
- Ground clearance
- 130 mm
- Overall height
- 1,166 mm
- Overall length
- 2,055 mm
- Overall width
- 691 mm
- Seat height
- 861 mm
- Wet weight
- 205 kg
- Wheelbase
- 1,405 mm
Chassis and suspension
Chassis and suspension
- Frame
- Aluminum Deltabox
- Front suspension
- 43mm Öhlins® Electronic Racing Suspension NPX fork, fully adjustable
- Front wheel travel
- 119 mm
- Rake
- 24.0°
- Rear suspension
- Öhlins® Electronic Racing Suspension single shock, fully adjustable
- Rear wheel travel
- 119 mm
- Trail
- 102 mm
Brakes and wheels
Brakes and wheels
- Abs
- Yes
- Front brakes
- Double disc. ABS. Hydraulic. Four-piston calipers.
- Front brakes diameter
- 320 mm
- Front tyre
- 120/70-ZR17
- Rear brakes
- Single disc. ABS. Hydraulic.
- Rear brakes diameter
- 220 mm
- Rear tyre
- 200/55-ZR17
Colours and equipment
Colours and equipment
- Colours
- Carbon Fiber Grey/Blue
Model years
2016
Power: 197 hp (147 kW) → 200 hp (149 kW)
2017
Wet weight: 200.9 kg → 200 kg; Fuel consumption: 6.9 L/100 km → 7 L/100 km
2018
Wet weight: 200 kg → 200.9 kg
2020
Wet weight: 200.9 kg → 204.1 kg
2021
Fuel consumption: 7 L/100 km → 7.1 L/100 km
2023
Fuel consumption: 7.1 L/100 km → 6.8 L/100 km
2024
Fuel consumption: 6.8 L/100 km → 7.1 L/100 km
2025
Wet weight: 204.1 kg → 205 kg
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 998 cm³ | 998 cm³ | 998 cm³ | 998 cm³ | 998 cm³ | 998 cm³ |
| Power | 200 hp (149 kW) | 200 hp (149 kW) | 200 hp (149 kW) | 200 hp (149 kW) | 200 hp (149 kW) | 200 hp (149 kW) |
| Torque | 112 Nm | 112 Nm | 112 Nm | 112 Nm | 112 Nm | 112 Nm |
| Wet weight | 204.1 kg | 204.1 kg | 204.1 kg | 204.1 kg | 205 kg | 205 kg |
| Seat height | 861 mm | 861 mm | 861 mm | 861 mm | 861 mm | 861 mm |
| Fuel capacity | 17 L | 17 L | 17 L | 17 L | 17 L | 17 L |
Pros and cons
Advantages
Adjustable electronic suspension
Fully adjustable Öhlins electronic suspension at both ends gives riders room to tailor the setup.
ABS braking
ABS on the double front discs and rear disc helps manage braking when traction is limited.
Slipper clutch
The assist-and-slipper clutch helps calm the rear wheel during hard downshifts.
Things to consider
Tall seat
At 861 mm, the seat can make it harder for shorter riders to put their feet down at stops.
Limited tank range
The 17-liter tank and 7.10 liters/100 km consumption work out to about 239 km between full tanks.
Chain maintenance
The chain final drive needs periodic cleaning, lubrication, and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Tiptoes likely; one-foot stops may feel easier
Plan to use a one-foot stop and test the motorcycle before buying.
Seat height
861 mm
Approx. loaded height
831 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 17 L at 7.1 L/100 km
Lower consumption = longer range.
Estimated range
239 km
With 10% reserve
215 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine capacity of the 2026 Yamaha YZF R1M?
It has a 998 cm³ liquid-cooled, four-stroke inline-four engine.
How tall is the Yamaha YZF R1M seat?
The seat height is 861 mm.
How far can the Yamaha YZF R1M travel on a full tank?
Its 17-liter tank gives an estimated range of about 239 km.
Does the Yamaha YZF R1M have ABS and adjustable suspension?
Yes, it has ABS at both ends and fully adjustable electronic Öhlins suspension front and rear.
