Yamaha YZF R1S
- Production years
- 2016–2018
- Brand
- Yamaha
Choose model year
1 / 6

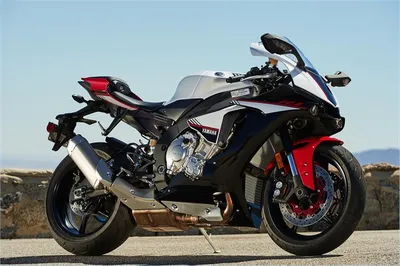

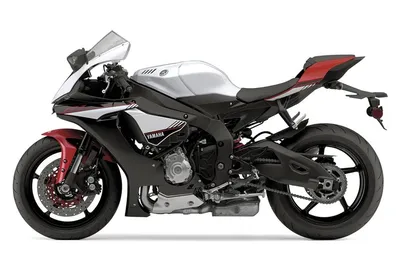

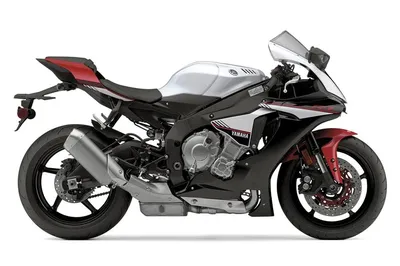

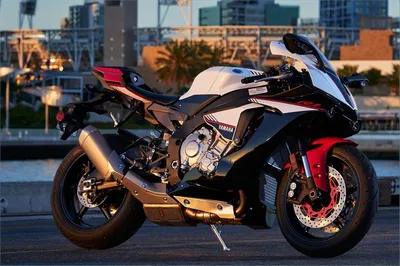

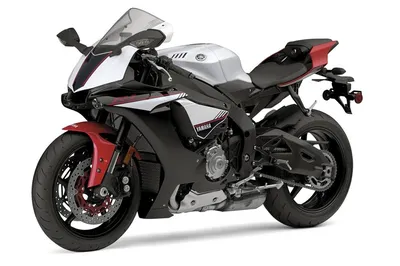

YAMAHA YZF-R1S (2016-Present)
Selected year: 2018
Technical specifications
- Engine capacity
- 998 cm³
- Power
- 200 hp (149 kW) at 13,500 rpm
- Wet weight
- 203.2 kg
- Seat height
- 861 mm
Overview
The Yamaha YZF R1S is a sportbike from the 2016–2018 model run. The 2018 model has a 998 cm³ liquid-cooled inline-four engine rated at 200 hp (149 kW), with 112 Nm of torque at 11,500 rpm; its wet weight is 203.2 kg.
Peak torque arrives high in the rev range, so the engine's strongest pull comes when it is spinning fast. The 861 mm seat can make stopping and putting a foot down harder for shorter riders, while its 203.2 kg wet weight takes more effort to maneuver at low speeds. Fuel consumption is 6.90 L/100 km, with a calculated full-tank range of about 246 km. ABS, a slipper clutch, and fully adjustable front and rear suspension add braking, downshift, and setup options.
Specifications
Engine
Engine
- Bore x stroke
- 79.0 x 50.9 mm
- Engine capacity
- 998 cm³
- Compression ratio
- 13.0:1
- Cooling system
- Liquid
- Engine type
- In-line four, four-stroke
- Fuel system
- Injection
- Ignition
- TCI
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 161 g/km CO₂
- Fuel consumption
- 6.9 L/100 km
- Power
- 200 hp (149 kW) at 13,500 rpm
- Power weight ratio
- 1.1306 HP/kg (dry)
- Torque
- 112 Nm at 11,500 rpm
- Clutch
- Multiplate slipper clutch
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Dry weight
- 176.9 kg
- Fuel capacity
- 17 L
- Overall height
- 1,151 mm
- Overall length
- 2,055 mm
- Overall width
- 691 mm
- Seat height
- 861 mm
- Wet weight
- 203.2 kg
- Wheelbase
- 1,405 mm
Chassis and suspension
Chassis and suspension
- Frame
- Aluminum Deltabox
- Front suspension
- 43mm KYB® inverted fork; fully adjustable
- Front wheel travel
- 119 mm
- Rake
- 24.0°
- Rear suspension
- KYB® Single shock w/piggyback reservoir, 4-way adjustable
- Rear wheel travel
- 119 mm
- Trail
- 102 mm
Brakes and wheels
Brakes and wheels
- Abs
- Yes
- Front brakes
- Double disc. ABS. Hydraulic. Four-piston calipers.
- Front brakes diameter
- 320 mm
- Front tyre
- 120/70-ZR17
- Rear brakes
- Single disc. ABS. Hydraulic.
- Rear brakes diameter
- 220 mm
- Rear tyre
- 190/55-ZR17
Colours and equipment
Colours and equipment
- Colours
- Cerulean Silver/Raven
- Warranty
- 12
Model years
No recorded specification changes between model years.
| Specification | |||
|---|---|---|---|
| Engine capacity | 998 cm³ | 998 cm³ | 998 cm³ |
| Power | 200 hp (149 kW) | 200 hp (149 kW) | 200 hp (149 kW) |
| Torque | 112 Nm | 112 Nm | 112 Nm |
| Wet weight | 203.2 kg | 203.2 kg | 203.2 kg |
| Seat height | 861 mm | 861 mm | 861 mm |
| Fuel capacity | 17 L | 17 L | 17 L |
Pros and cons
Advantages
Adjustable suspension
Fully adjustable front and four-way-adjustable rear suspension let riders tailor the setup to their preferences.
Slipper clutch
The slipper clutch helps calm the rear wheel during hard downshifts.
ABS braking
ABS on both brakes can help maintain control during hard braking.
Things to consider
Tall seat
The 861 mm seat height can make it difficult for shorter riders to plant both feet at a stop.
Limited tank range
A calculated range of about 246 km means longer rides call for more frequent fuel stops.
Weight at low speeds
At 203.2 kg wet, the bike takes more effort to maneuver in tight spaces than a lighter motorcycle.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Tiptoes likely; one-foot stops may feel easier
Plan to use a one-foot stop and test the motorcycle before buying.
Seat height
861 mm
Approx. loaded height
831 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 17 L at 6.9 L/100 km
Lower consumption = longer range.
Estimated range
246 km
With 10% reserve
222 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much power does the 2018 Yamaha YZF R1S make?
It produces 200 hp (149 kW).
What is the engine size of the Yamaha YZF R1S?
The 2018 model has a 998 cm³ liquid-cooled inline-four engine.
How tall is the seat on the 2018 Yamaha YZF R1S?
The seat height is 861 mm.
How far can the Yamaha YZF R1S travel on a full tank?
Its calculated full-tank range is about 246 km.
