Honda CB 500X ABS
- Production years
- 2012–2013
- Brand
- Honda
1 / 3

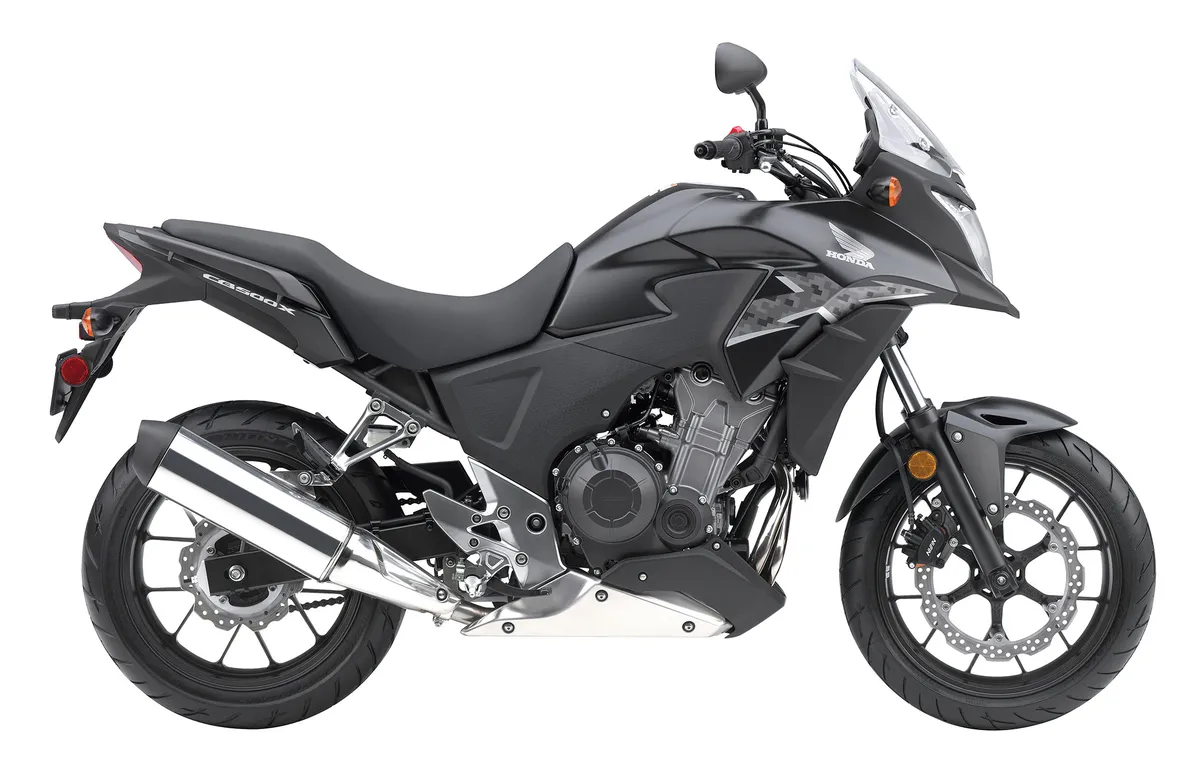

HONDA CB500X ABS (2013-2014)
Selected year: 2013
Technical specifications
- Engine capacity
- 471 cm³
- Wet weight
- 197 kg
- Seat height
- 810 mm
Overview
The Honda CB 500X ABS is an adventure motorcycle from the 2013 model year. Its liquid-cooled, 471 cm³ parallel-twin engine produces 43 Nm of torque at 7,000 rpm, and the motorcycle weighs 197 kg.
The 810 mm seat height sets the rider position, while the 1,420 mm wheelbase is a key part of its overall fit and handling. The suspension has 4.9 inches of front travel and 4.7 inches at the rear, whose spring preload can be adjusted to suit the load. Its fuel tank holds 17 liters.
Specifications
Engine
Engine
- Engine capacity
- 471 cm³
- Compression ratio
- 10.7:1
- Stroke
- 66 mm
Performance and transmission
Performance and transmission
- Torque
- 43 Nm at 7,000 rpm
- Gearbox
- Manual 6-speed
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 17 L
- Seat height
- 810 mm
- Wet weight
- 197 kg
- Wheelbase
- 1,420 mm
Pros and cons
Advantages
ABS on both brakes
ABS on the front and rear brakes can help prevent wheel lockup during hard braking.
Adjustable rear preload
Nine preload settings let riders tune the rear suspension for different loads.
Slipper clutch
The slipper clutch helps calm the rear wheel during hard downshifts.
Things to consider
Weight at low speed
At 197 kg, the motorcycle takes effort to maneuver when parking or making tight turns at walking pace.
Chain final drive
The sealed chain still needs cleaning, lubrication, and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
810 mm
Approx. loaded height
780 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 17 L at 5.5 L/100 km
Lower consumption = longer range.
Estimated range
309 km
With 10% reserve
278 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What is the engine size of the 2013 Honda CB 500X ABS?
It has a 471 cm³, liquid-cooled parallel-twin engine.
How much torque does the 2013 Honda CB 500X ABS produce?
It produces 43 Nm at 7,000 rpm.
Does the 2013 Honda CB 500X ABS have ABS?
Yes, ABS is fitted to both the front and rear brakes.
How tall is the seat on the 2013 Honda CB 500X ABS?
The seat height is 810 mm.
