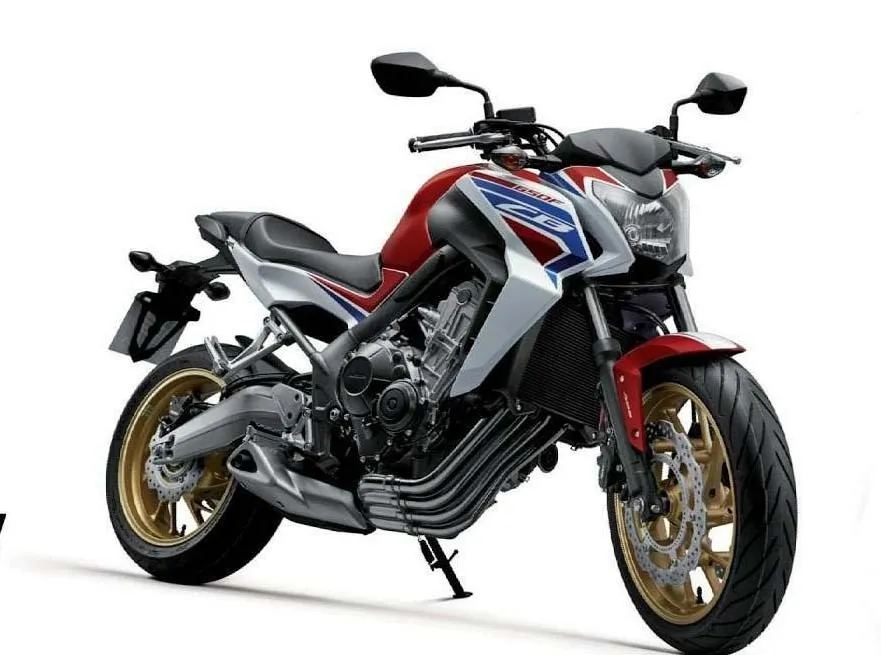

Honda CB 650F
- Production years
- 2014–2019
- Brand
- Honda
Choose model year
1 / 1
Selected year: 2019
Technical specifications
- Engine capacity
- 649 cm³
- Power
- 88 hp (66 kW) at 11,000 rpm
- Wet weight
- 208 kg
- Seat height
- 810 mm
Overview
The Honda CB 650F is a naked motorcycle produced from 2014 to 2019. For 2019, it has a 649 cm³ liquid-cooled, fuel-injected inline-four making 88 hp (66 kW), with peak torque of 64 Nm at 8,000 rpm; its wet weight is 208 kg.
The 810 mm seat height affects how easily you can reach the ground, while the 208 kg wet weight can be noticeable when maneuvering at low speed. Its 17.3-liter tank and stated fuel consumption of 4.8 liters per 100 km correspond to an estimated range of about 360 km; the rear shock’s adjustable preload lets you tune it for load and rider preference.
Specifications
Engine
Engine
- Bore x stroke
- 67.0 x 46.0 mm
- Engine capacity
- 649 cm³
- Compression ratio
- 11.4:1
- Cooling system
- Liquid
- Engine type
- In-line four, four-stroke
- Fuel system
- Injection
- Ignition
- Computer-controlled digital transistorised with electronic advance
- Oil capacity
- 3.5 L
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Co2 emissions
- 110 g/km CO₂
- Fuel consumption
- 4.8 L/100 km
- Power
- 88 hp (66 kW) at 11,000 rpm
- Power weight ratio
- 0.4255 HP/kg (wet)
- Torque
- 64 Nm at 8,000 rpm
- Clutch
- Wet, multiplate with coil springs
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 17.3 L
- Ground clearance
- 150 mm
- Overall height
- 1,120 mm
- Overall length
- 2,110 mm
- Overall width
- 775 mm
- Reserve fuel capacity
- 3.5 L
- Seat height
- 810 mm
- Wet weight
- 208 kg
- Wheelbase
- 1,450 mm
Chassis and suspension
Chassis and suspension
- Frame
- Steel diamond
- Front suspension
- 41mm SDBV telescopic fork
- Front wheel travel
- 108 mm
- Rake
- 25.0°
- Rear suspension
- Monoshock damper with adjustable preload
- Rear wheel travel
- 128 mm
- Trail
- 101 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Double disc. Hydraulic. Dual-piston calipers and sintered metal pads.
- Front brakes diameter
- 320 mm
- Front tyre
- 120/70-ZR17
- Rear brakes
- Single disc. Hydraulic. Single-piston caliper.
- Rear brakes diameter
- 240 mm
- Rear tyre
- 180/55-ZR17
Colours and equipment
Colours and equipment
- Colours
- Red
Model years
2016
Wet weight: 208 kg → 211 kg
2017
Wet weight: 211 kg → 208 kg
2018
Power: 86 hp (64 kW) → 88 hp (66 kW); Torque: 63 Nm → 64 Nm
| Specification | ||||||
|---|---|---|---|---|---|---|
| Engine capacity | 649 cm³ | 649 cm³ | 649 cm³ | 649 cm³ | 649 cm³ | 649 cm³ |
| Power | 86 hp (64 kW) | 86 hp (64 kW) | 86 hp (64 kW) | 86 hp (64 kW) | 88 hp (66 kW) | 88 hp (66 kW) |
| Torque | 63 Nm | 63 Nm | 63 Nm | 63 Nm | 64 Nm | 64 Nm |
| Wet weight | 208 kg | 208 kg | 211 kg | 208 kg | 208 kg | 208 kg |
| Seat height | 810 mm | 810 mm | 810 mm | 810 mm | 810 mm | 810 mm |
| Fuel capacity | 17.3 L | 17.3 L | 17.3 L | 17.3 L | 17.3 L | 17.3 L |
Pros and cons
Advantages
Inline-four power
The 649 cm³ engine produces 88 hp (66 kW) and 64 Nm of torque, giving it substantial output for road riding.
Adjustable rear preload
You can adjust the rear shock’s preload to suit changes in rider or passenger load.
Useful tank range
The 17.3-liter fuel tank supports an estimated range of about 360 km at the stated fuel consumption.
Things to consider
Weight at low speed
At 208 kg wet, it can take more effort to maneuver in tight spaces or move while parked.
Chain final drive
The chain needs periodic cleaning, lubrication, and adjustment.
Seat height
An 810 mm seat may make it harder for shorter riders to place both feet securely on the ground.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Both feet likely flat
You should have a stable stance at a stop, although seat width and suspension setup still matter.
Seat height
810 mm
Approx. loaded height
780 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 17.3 L at 4.8 L/100 km
Lower consumption = longer range.
Estimated range
360 km
With 10% reserve
324 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much power does the 2019 Honda CB 650F make?
It produces 88 hp (66 kW).
What is the torque of the 2019 Honda CB 650F?
Peak torque is 64 Nm at 8,000 rpm.
How much does the 2019 Honda CB 650F weigh?
Its wet weight is 208 kg.
What is the fuel range of the 2019 Honda CB 650F?
With a 17.3-liter tank, its estimated range is about 360 km.
