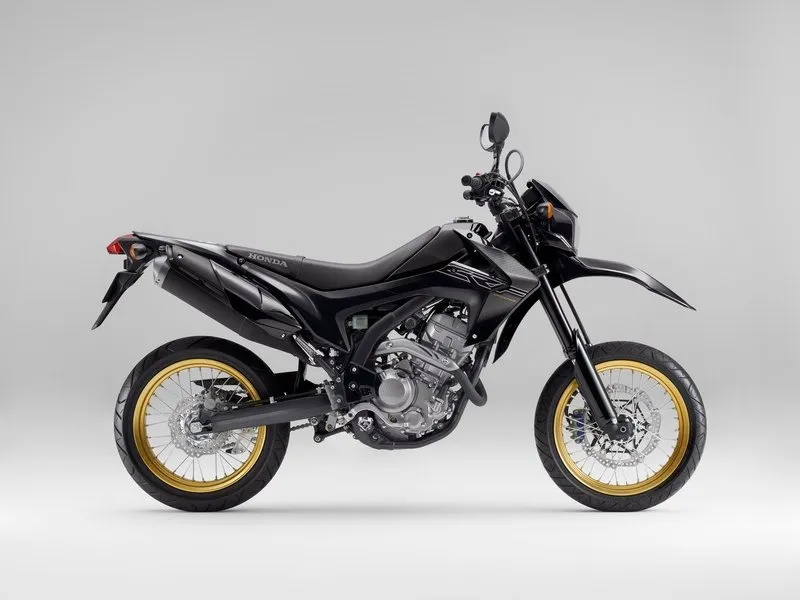

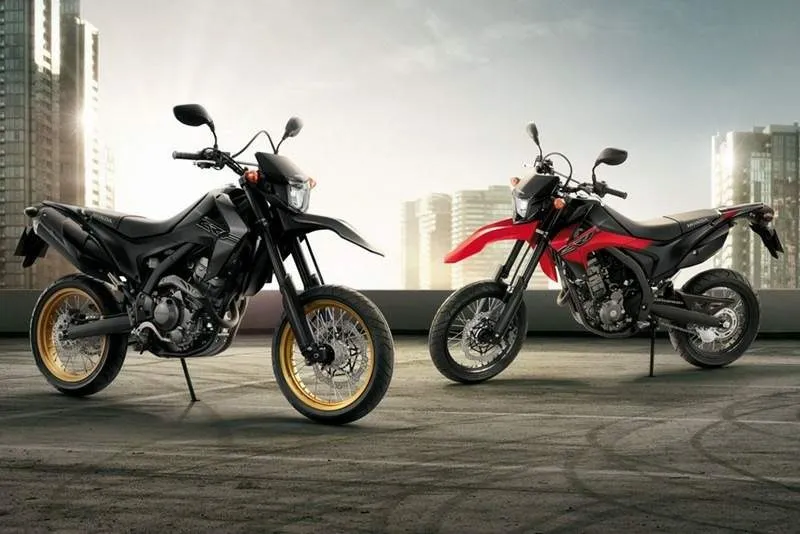

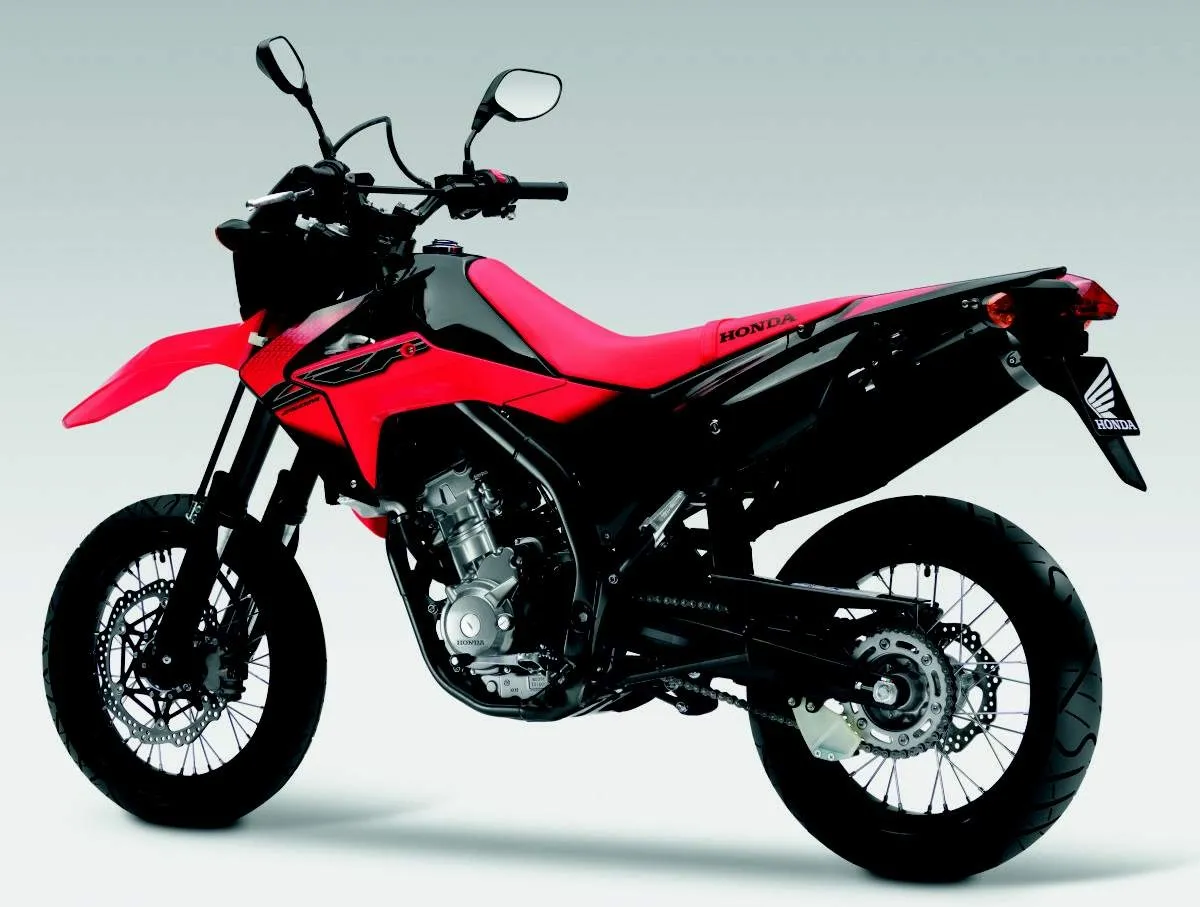

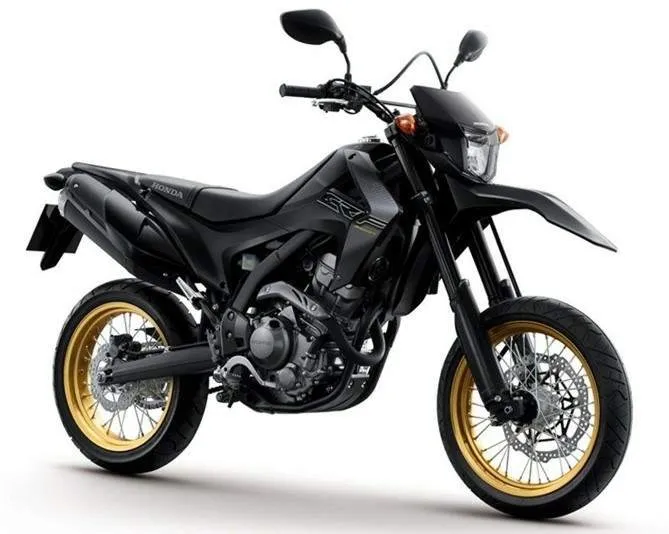

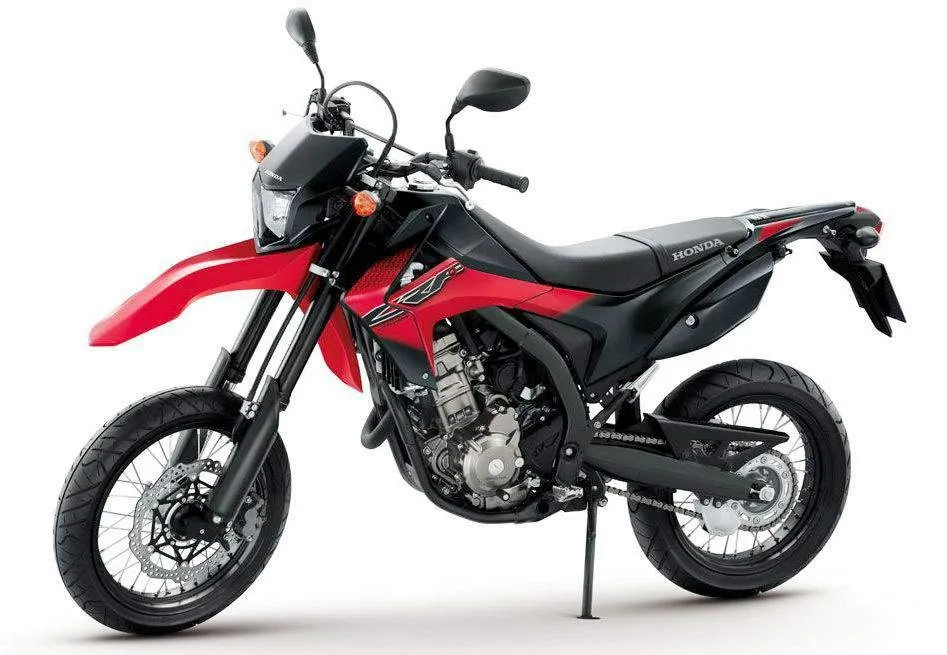

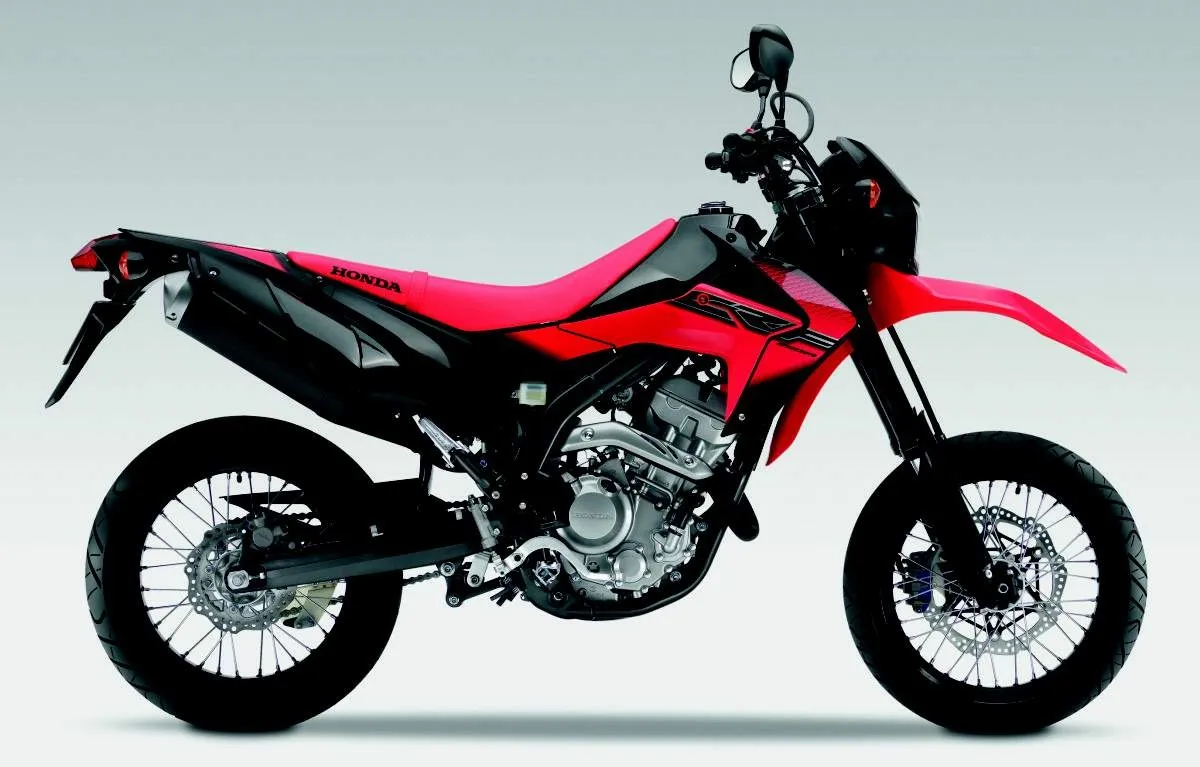

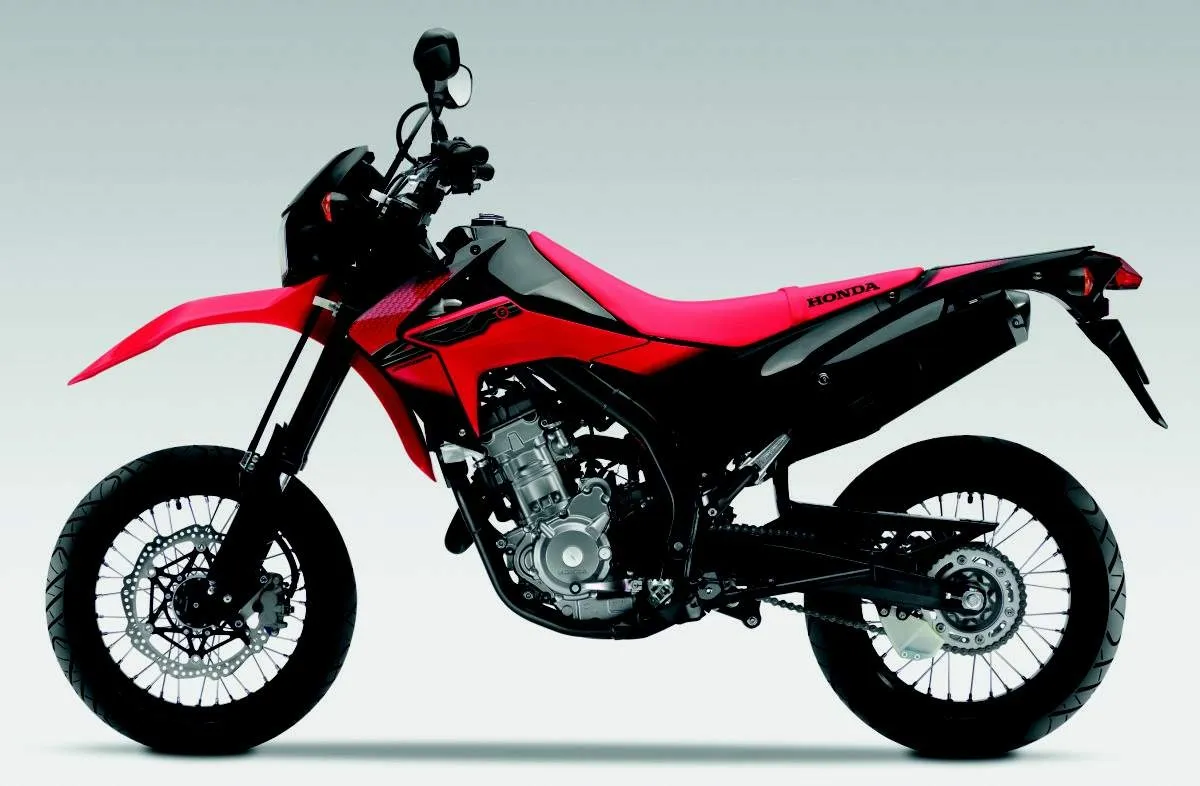

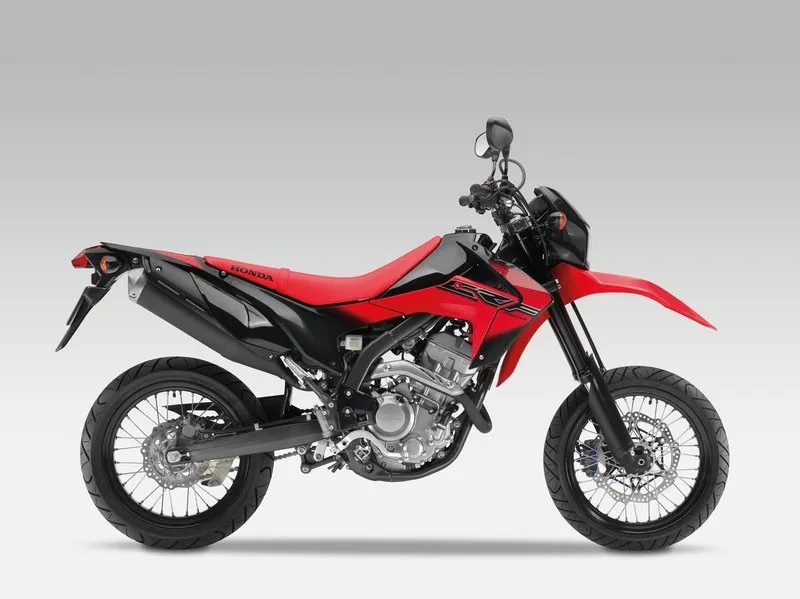

Honda CRF 250M
- Production years
- 2014–2017
- Brand
- Honda
Choose model year
1 / 10
Selected year: 2017
Technical specifications
- Engine capacity
- 249.6 cm³
- Power
- 23 hp (17 kW) at 8,500 rpm
- Wet weight
- 146 kg
- Seat height
- 881 mm
Overview
The Honda CRF 250M is a supermoto produced from 2014 to 2017. For 2017, it has a 249.6 cm³, four-stroke single-cylinder engine producing 23 hp (17 kW) and 22.0 Nm of torque at 7,000 rpm; wet weight is 146.0 kg.
Its 881 mm seat height can make it harder for shorter riders to reach the ground with both feet, while 225 mm of ground clearance leaves room over uneven surfaces. Fuel consumption is 3.20 liters/100 km, and the 7.60-liter tank gives a calculated range of about 237 km. Compared with 2016, the 2017 seat is 26 mm higher, and fuel consumption rose from 2.90 to 3.20 liters/100 km.
Specifications
Engine
Engine
- Bore x stroke
- 76.0 x 55.0 mm
- Engine capacity
- 249.6 cm³
- Compression ratio
- 10.7:1
- Cooling system
- Liquid
- Engine type
- Single, four-stroke
- Fuel system
- Injection
- Ignition
- Computer-controlled digital transistorized with electronic advance
- Oil capacity
- 1.8 L
- Starting
- Electric
Performance and transmission
Performance and transmission
- Co2 emissions
- 75 g/km CO₂
- Fuel consumption
- 3.2 L/100 km
- Power
- 23 hp (17 kW) at 8,500 rpm
- Power weight ratio
- 0.1562 HP/kg (wet)
- Torque
- 22 Nm at 7,000 rpm
- Clutch
- Wet multiplate with coil springs
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 7.6 L
- Ground clearance
- 225 mm
- Overall height
- 1,150 mm
- Overall length
- 2,125 mm
- Overall width
- 815 mm
- Seat height
- 881 mm
- Wet weight
- 146 kg
- Wheelbase
- 1,445 mm
Chassis and suspension
Chassis and suspension
- Frame
- Semi double cradle
- Front suspension
- 43mm inverted fork
- Front wheel travel
- 61 mm
- Rake
- 27.4°
- Rear suspension
- Pro-Link® single shock with spring; 9.4 inches travel
- Rear wheel travel
- 61 mm
- Trail
- 113 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Single disc. Two-piston calipers.
- Front brakes diameter
- 256 mm
- Front tyre
- 110/70-17
- Rear brakes
- Single disc
- Rear brakes diameter
- 220 mm
- Rear tyre
- 130/70-17
Colours and equipment
Colours and equipment
- Colours
- Extreme red
Model years
2017
Engine capacity: 250 cm³ → 249.6 cm³; Wet weight: 145 kg → 146 kg; Seat height: 855 mm → 881 mm; Fuel capacity: 7.7 L → 7.6 L; Fuel consumption: 2.9 L/100 km → 3.2 L/100 km
| Specification | ||||
|---|---|---|---|---|
| Engine capacity | 250 cm³ | 250 cm³ | 250 cm³ | 249.6 cm³ |
| Power | 23 hp (17 kW) | 23 hp (17 kW) | 23 hp (17 kW) | 23 hp (17 kW) |
| Torque | 22 Nm | 22 Nm | 22 Nm | 22 Nm |
| Wet weight | 145 kg | 145 kg | 145 kg | 146 kg |
| Seat height | 855 mm | 855 mm | 855 mm | 881 mm |
| Fuel capacity | 7.7 L | 7.7 L | 7.7 L | 7.6 L |
Pros and cons
Advantages
High ground clearance
The 225 mm clearance helps reduce the chance of striking the underside over bumps.
Electric starting
The electric starter makes starting the engine straightforward without a kick lever.
Fuel injection
Fuel injection handles fuel delivery electronically rather than relying on a carburetor.
Things to consider
Tall seat
At 881 mm, the seat may make it difficult for shorter riders to plant both feet at a stop.
Chain maintenance
The chain final drive needs periodic cleaning and adjustment.
Higher fuel consumption than in 2016
Consumption rose from 2.90 liters/100 km in 2016 to 3.20 liters/100 km in 2017.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Tiptoes likely; one-foot stops may feel easier
Plan to use a one-foot stop and test the motorcycle before buying.
Seat height
881 mm
Approx. loaded height
851 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 7.6 L at 3.2 L/100 km
Lower consumption = longer range.
Estimated range
237 km
With 10% reserve
214 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
What engine does the 2017 Honda CRF 250M have?
It has a 249.6 cm³, four-stroke single-cylinder engine.
How much power and torque does the 2017 Honda CRF 250M produce?
It produces 23 hp (17 kW) and 22.0 Nm of torque at 7,000 rpm.
How tall is the seat on the 2017 Honda CRF 250M?
The seat height is 881 mm.
What is the fuel consumption and calculated range?
Fuel consumption is 3.20 liters/100 km, with a calculated full-tank range of about 237 km.
