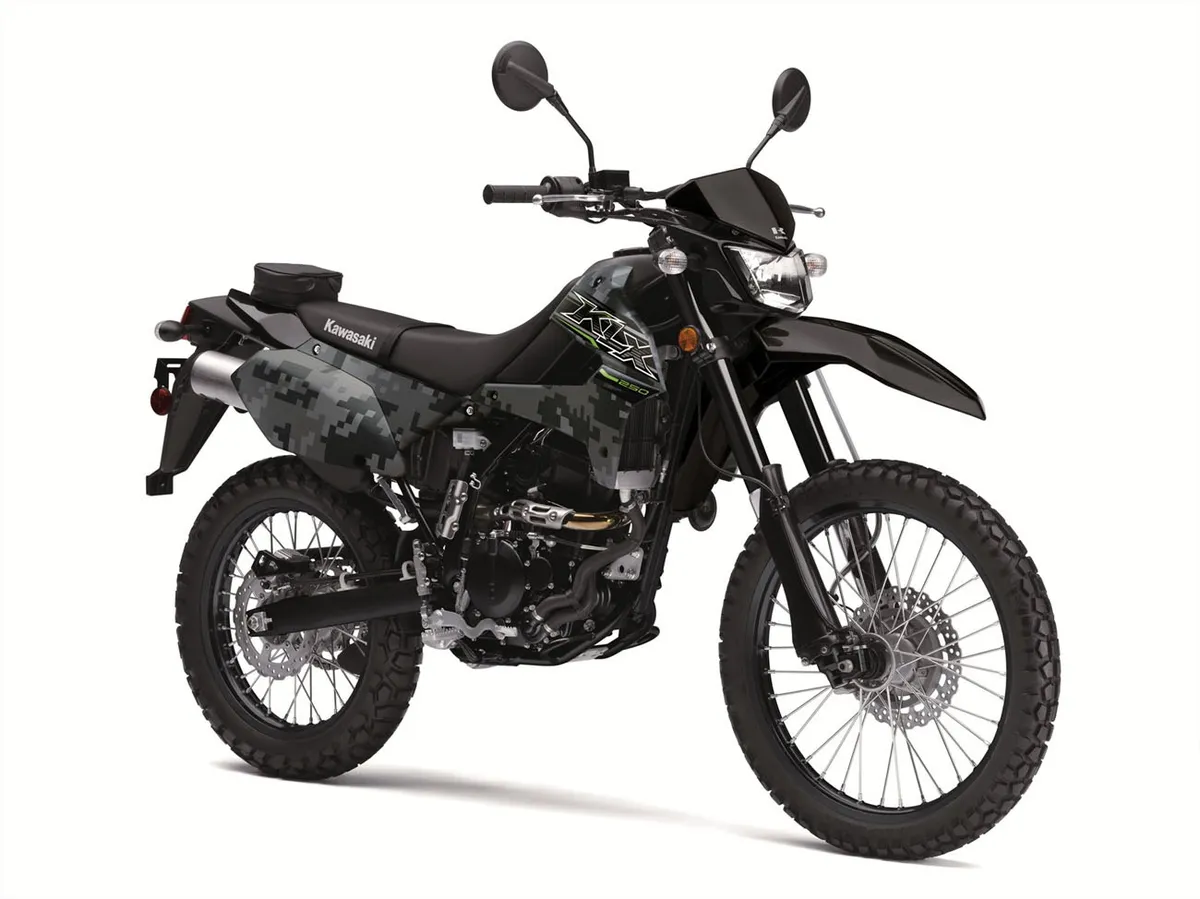

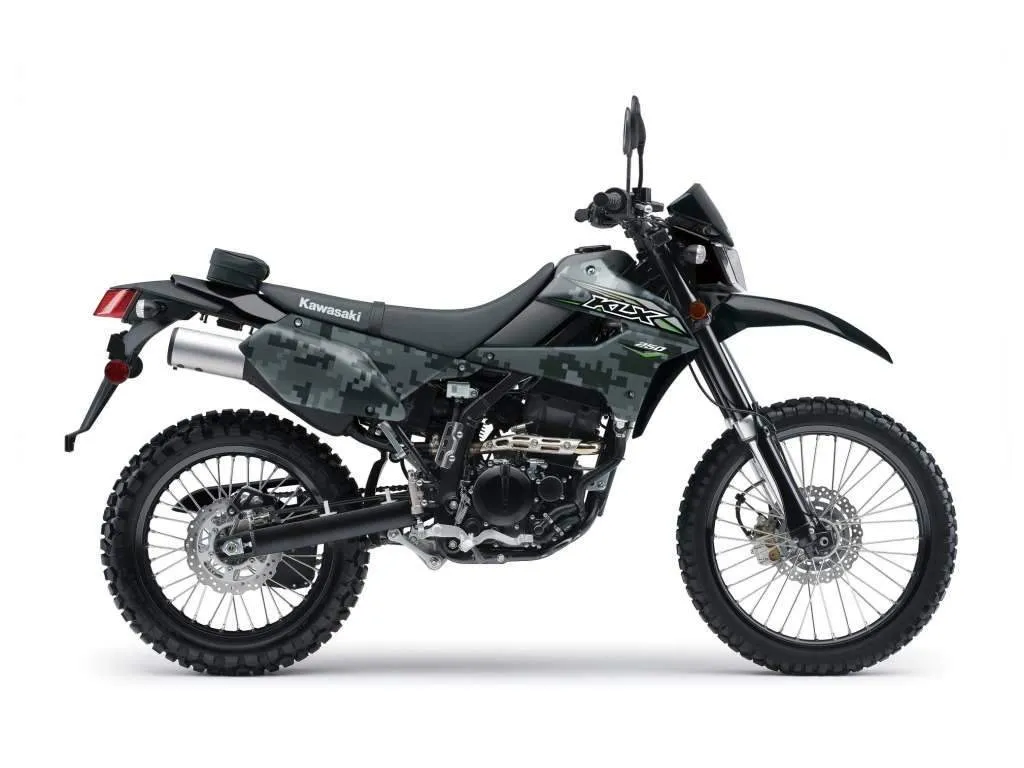

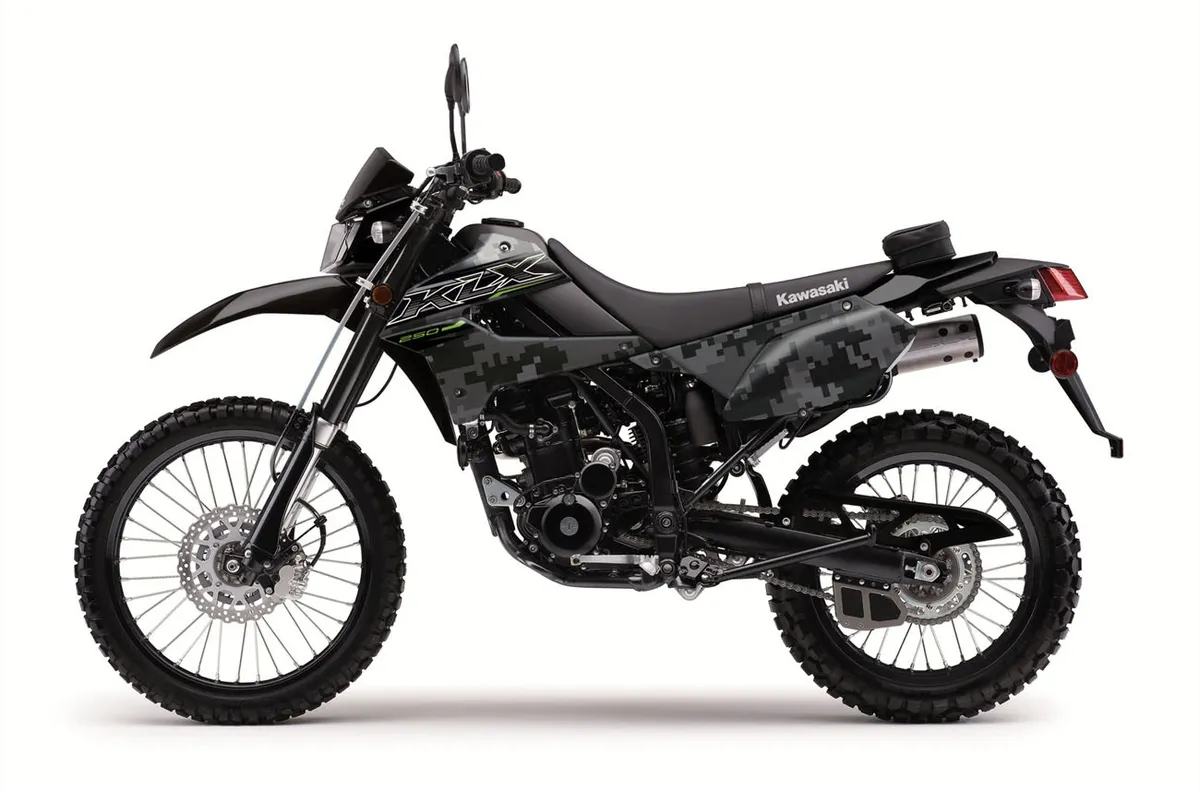

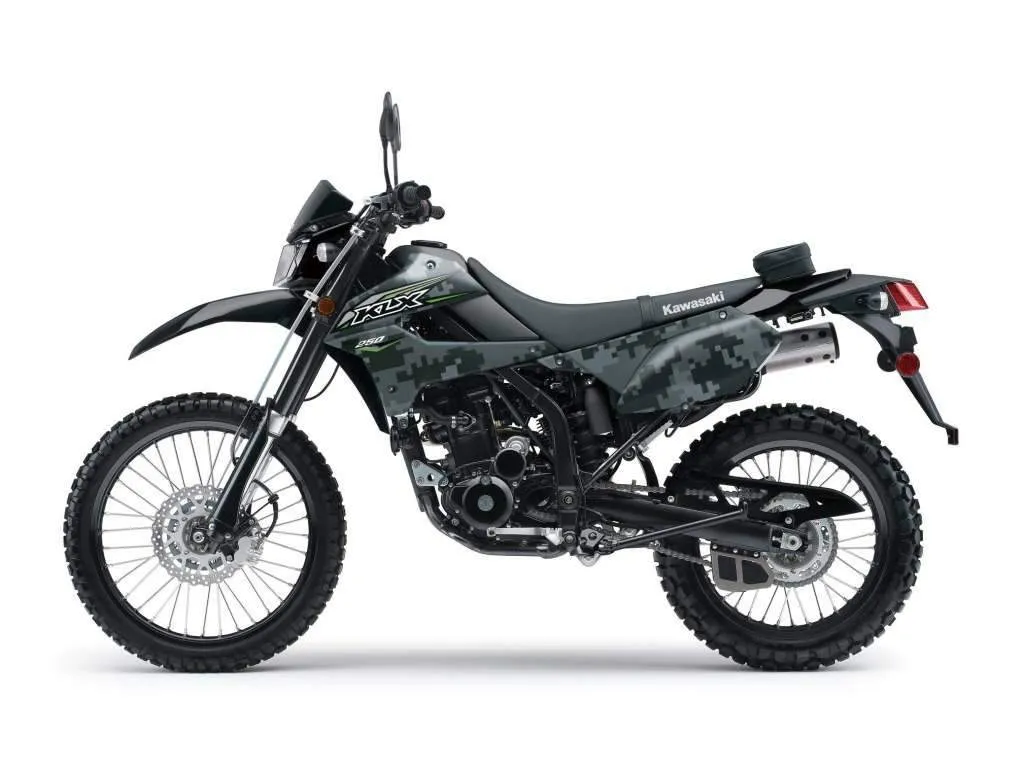

Kawasaki KLX 250 CAMO
- Production years
- 2018–2019
- Brand
- Kawasaki
Choose model year
1 / 5
Selected year: 2019
Technical specifications
- Engine capacity
- 249 cm³
- Power
- 21 hp (16 kW) at 7,500 rpm
- Wet weight
- 138 kg
- Seat height
- 890 mm
Overview
The Kawasaki KLX 250 CAMO is a dual-sport motorcycle from the KLX family, produced for 2018–2019. The 2019 model uses a 249.0 cm³ liquid-cooled, fuel-injected four-stroke single producing 21 hp (16 kW) and 20.5 Nm of torque at 7000 RPM; wet weight is 138.0 kg.
Its 890 mm seat height can make getting both feet firmly down difficult for shorter riders, while 285 mm of ground clearance helps it clear obstacles. The 255 mm front and 230 mm rear wheel travel suit rough surfaces, and the fork and rear shock offer extensive damping and preload adjustment. The 7.70-liter tank keeps fuel capacity limited, and the chain final drive needs periodic cleaning and adjustment.
Specifications
Engine
Engine
- Bore x stroke
- 72.0 x 61.2 mm
- Engine capacity
- 249 cm³
- Compression ratio
- 11.0:1
- Cooling system
- Liquid
- Engine type
- Single, four-stroke
- Fuel system
- Injection
- Ignition
- CDI
- Lubrication system
- Forced lubrication, wet sump
- Starting
- Electric
- Valves per cylinder
- 4
Performance and transmission
Performance and transmission
- Power
- 21 hp (16 kW) at 7,500 rpm
- Power weight ratio
- 0.1558 HP/kg (wet)
- Torque
- 20.5 Nm at 7,000 rpm
- Clutch
- Wet multi-disc, manual
- Final drive
- Chain
- Gearbox
- Manual 6-speed
- Transmission type
- Manual
Dimensions and weight
Dimensions and weight
- Fuel capacity
- 7.7 L
- Ground clearance
- 285 mm
- Overall height
- 1,205 mm
- Overall length
- 2,200 mm
- Overall width
- 820 mm
- Seat height
- 890 mm
- Wet weight
- 138 kg
- Wheelbase
- 1,430 mm
Chassis and suspension
Chassis and suspension
- Frame
- Tubular, semi-double cradle
- Front suspension
- 43 mm inverted telescopic fork 16-way
- Front wheel travel
- 255 mm
- Rake
- 26.5°
- Rear suspension
- Uni-Trak. Compression damping: 20-way. Rebound damping: 20-way. Spring preload: Fully adjustable.
- Rear wheel travel
- 230 mm
- Trail
- 104 mm
Brakes and wheels
Brakes and wheels
- Front brakes
- Single disc. Dual-piston
- Front brakes diameter
- 250 mm
- Front tyre
- 3.00-21
- Rear brakes
- Single disc. Single-piston
- Rear brakes diameter
- 240 mm
- Rear tyre
- 4.60-18
Colours and equipment
Colours and equipment
- Colours
- Matrix Camo Gray
- Warranty
- 12
Model years
No recorded specification changes between model years.
| Specification | ||
|---|---|---|
| Engine capacity | 249 cm³ | 249 cm³ |
| Power | 21 hp (16 kW) | 21 hp (16 kW) |
| Torque | 20.5 Nm | 20.5 Nm |
| Wet weight | 138 kg | 138 kg |
| Seat height | 890 mm | 890 mm |
| Fuel capacity | 7.7 L | 7.7 L |
Pros and cons
Advantages
Long suspension travel
With 255 mm of front travel and 230 mm at the rear, the suspension has room to absorb rough terrain.
Adjustable rear suspension
Compression and rebound damping are adjustable, and spring preload is fully adjustable, allowing the rear suspension to be tuned for rider and terrain.
High ground clearance
The 285 mm clearance helps the bike pass over obstacles without them contacting the underside as easily.
Things to consider
Tall seat
The 890 mm seat height can make confident footing difficult for shorter riders.
Limited fuel capacity
The 7.70-liter tank carries a limited amount of fuel between stops.
Chain maintenance
The chain final drive needs regular cleaning and adjustment.
Rider fit
Rider fit calculator
Calculated in your browser
Don't know it? Leave this empty and we'll estimate it from your height.
Estimated from your height: 79 cm
How to measure
Stand barefoot with your back to a wall. Hold a book firmly between your legs, then measure from the floor to the top edge of the book.
Estimated ground reach
Tiptoes likely; one-foot stops may feel easier
Plan to use a one-foot stop and test the motorcycle before buying.
Seat height
890 mm
Approx. loaded height
860 mm
Estimate assumes about 30 mm of suspension sag. Seat width, footwear, luggage and suspension settings can change real reach. Always sit on the motorcycle before buying.
Fuel range calculator
Enter your expected fuel consumption to estimate the distance on a full tank, with or without a fuel reserve.
Tank 7.7 L at 6 L/100 km
Lower consumption = longer range.
Estimated range
128 km
With 10% reserve
116 km
This is a planning estimate, not a measured result. Speed, route, weather, load and riding style can change real consumption.
FAQ
How much power does the 2019 Kawasaki KLX 250 CAMO make?
It produces 21 hp (16 kW).
What is the seat height of the Kawasaki KLX 250 CAMO?
The seat height is 890 mm.
How much fuel does the KLX 250 CAMO hold?
Its fuel capacity is 7.70 liters.
Is the KLX 250 CAMO suspension adjustable?
Yes, the front fork has 16-way adjustment, while the rear offers 20-way compression and rebound adjustment and fully adjustable spring preload.
